Toyota Camry-Hybrid-China 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:25A,MINI FUSE | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:30A,FEMALE,PNK,32V | |||
| 82715-06Z60 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 89980 | — |
| 89121-0E040 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 82672-06301 | COVER, JUNCTION BLOCK | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 82730-06871 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 82673-06120 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 82673-06110 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 84345-0R010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:(L) Spec Note:(Local made) | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:(J) Spec Note:(Japan made) | |||
| 84340-09340 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 89111-06190 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:AXVA70,MXVA71..G,S Production:2021-03 – 2023-03 | |||
| 82877-06040 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:MXVA71..G,S;AXVA70,AXVH71 Production:2021-03 – … | |||
| 89220-06E40 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – 2023-04 | |||
| 8598A-06040 | BATTERY, DOOR CONTROL | 1 | |
Note:AXVA70,MXVA71 Production:2021-03 – … | |||
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90178-C0011 | standard | — | |
| 90179-06274 | standard | — | |
| 90119-06951 | standard | — | |
| 90119-C0074 | standard | — | |
| 90183-06032 | standard | — | |
| 90153-C0003 | standard | — | |
| 90178-C0058 | standard | — | |

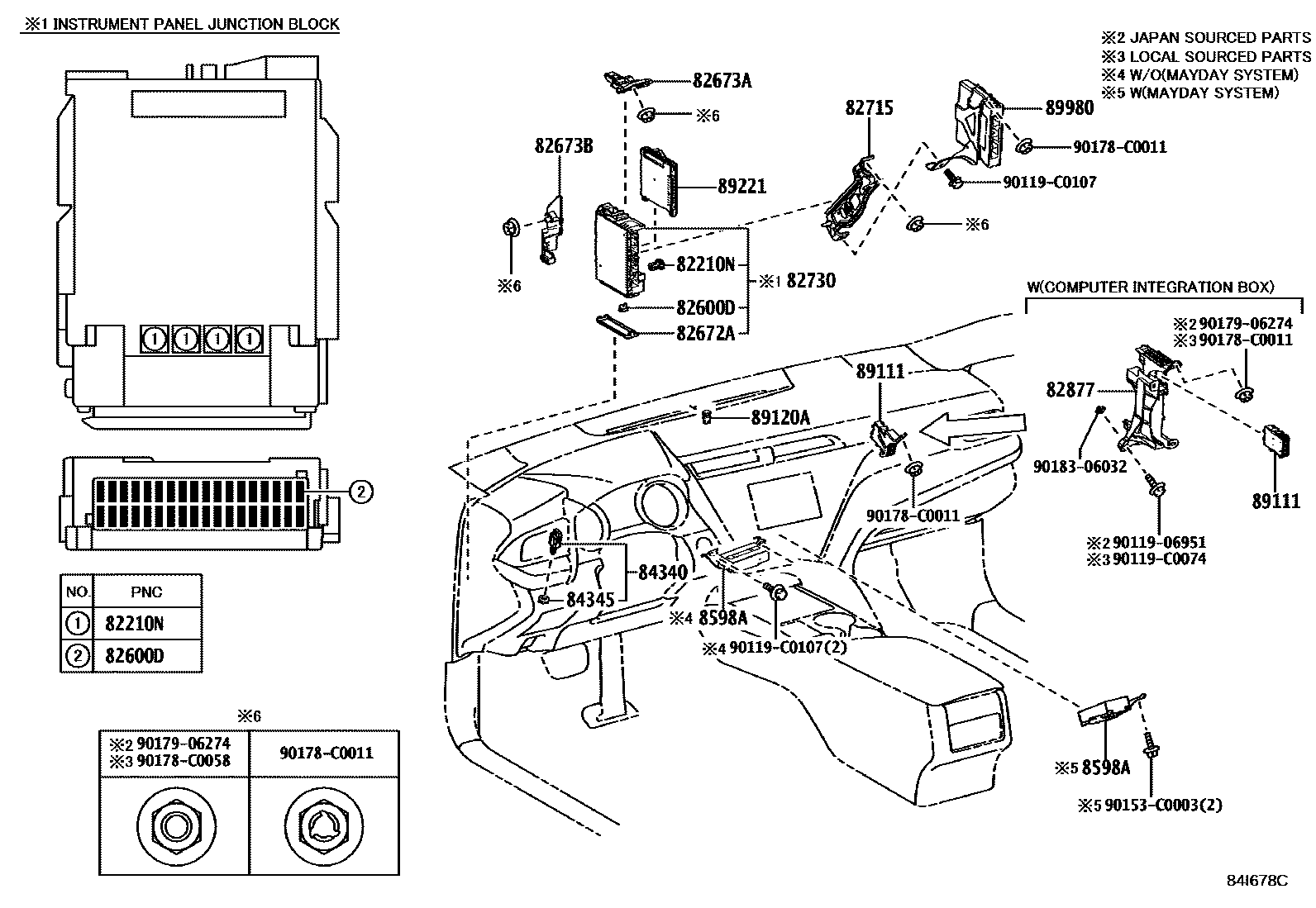

Diagram
28 parts
