Toyota Camry-Hybrid-China 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84810-06180 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 83320-06240 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AXVH80,MXVH80 Production:2024-03 – … | |||
| 88161-06020 | BRACKET, BLIND SPOT MONITOR, RH | 1 | |
Note:AXVH80,MXVA80,MXVH80..G,S Production:2024-03 – … | |||
| 88161-06020 | BRACKET, BLIND SPOT MONITOR, LH | 1 | |
Note:AXVH80,MXVA80,MXVH80..G,S Production:2024-03 – … | |||
| 88162-0R140 | SENSOR, BLIND SPOT MONITOR, RH | 1 | |
Note:AXVH80,MXVA80,MXVH80..G,S Production:2024-03 – … | |||
| 88162-0R140 | SENSOR, BLIND SPOT MONITOR, LH | 1 | |
Note:AXVH80,MXVA80,MXVH80..G,S Production:2024-03 – … | |||
| 89430-06120 | COMPUTER ASSY, OUTER MIRROR CONTROL, RH | 1 | |
Note:AXVH80,MXVH80..G,S Production:2024-03 – 2026-07 Spec:SEAT COMFORT PACKAGE | |||
| 89430-06110 | COMPUTER ASSY, OUTER MIRROR CONTROL, LH | 1 | |
Note:AXVH80,MXVH80..G,S Production:2024-03 – 2026-07 Spec:SEAT COMFORT PACKAGE | |||
| 84810-06180 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 84872-06280 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXVH80,MXVH80..G,S Production:2024-03 – 2026-07 Spec:SEAT COMFORT PACKAGE | |||
| 84927-06040 | SWITCH, SEAT MEMORY | 1 | |
Note:AXVH80,MXVH80..G,S Production:2024-03 – 2026-07 Spec:SEAT COMFORT PACKAGE | |||
| 84040-0R200 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 89461-47010 | SENSOR, VAPOR PRESSURE | 1 | |
Note:AXVH80,MXVH80 Production:2024-03 – … | |||
| 28850-0Z020 | SENSOR ASSY, BATTERY STATE | 1 | |
Note:A25,M20..AXVH80,MXVA80,MXVH80 Production:2024-03 – 2026-07 | |||
| 28859-F0310 | HOLDER, BATTERY CURRENT SENSOR | 1 | |
Note:A25,M20..AXVH80,MXVH80 Production:2024-03 – … | |||
| 84945-02080 | SWITCH, LUGGAGE ELECTRICAL KEY | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 90982-09020 | LUGGAGE ROOM FUSE | 1 | |
Note:AXVH80,MXVH80 Production:2024-03 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | LUGGAGE ROOM FUSE | 1 | |
Note:AXVH80,MXVH80 Production:2024-03 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | LUGGAGE ROOM FUSE | 1 | |
Note:AXVH80,MXVH80 Production:2024-03 – … Spec:15A,MINI FUSE,BLUE | |||
| 90105-06344 | standard | — | |
| 90178-C0076 | standard | — | |
| 90159-60303 | standard | — | |
| 90159-C0006 | standard | — | |
| 90164-C0009 | standard | — | |
| 90189-C0033 | standard | — | |
| 90178-C0049 | standard | — | |
| 94151-80801 | standard | — | |

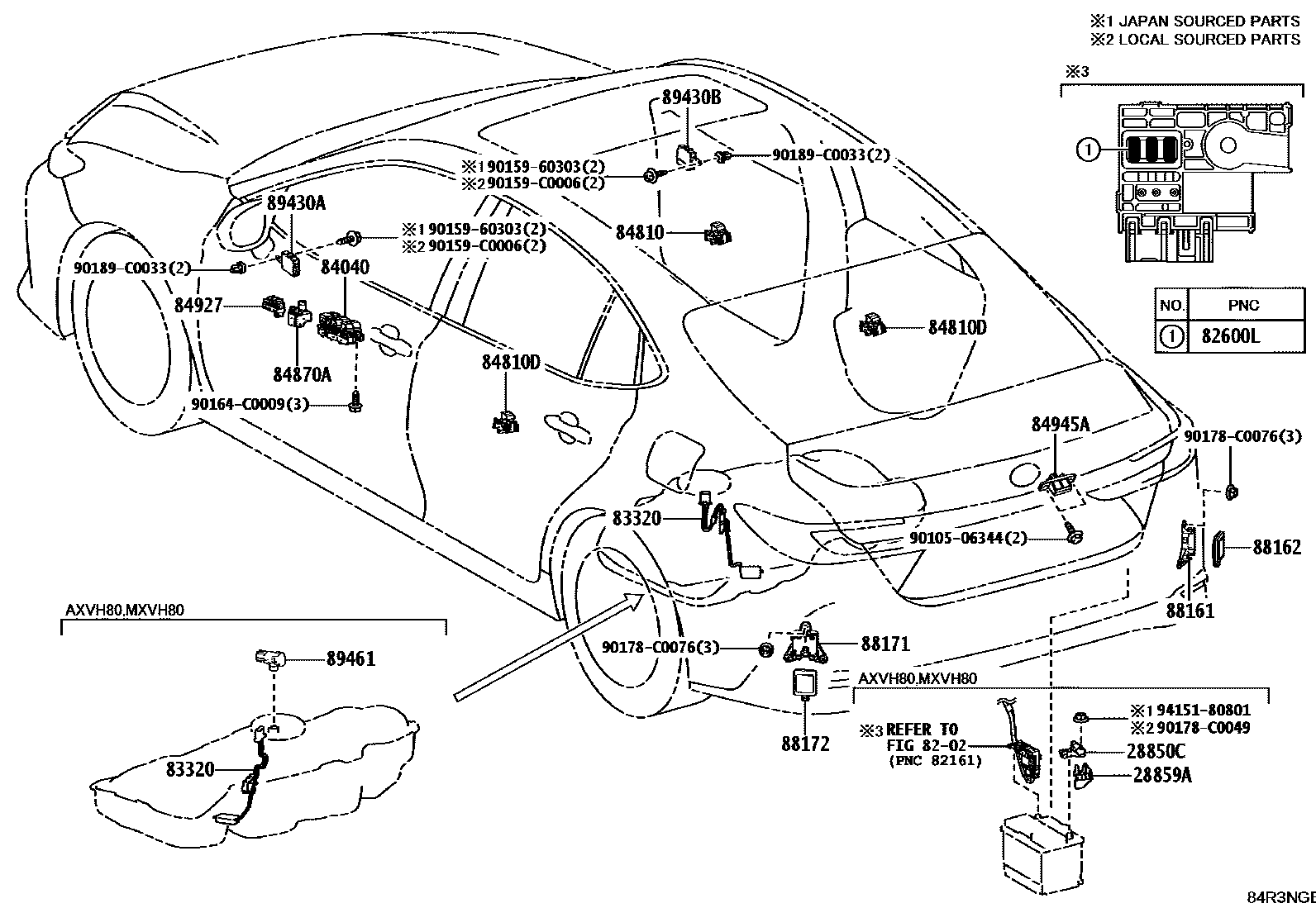

Diagram
27 parts
