Toyota Levin-Hybrid 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82620-12310 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 82621-F4030 | COVER, FUSIBLE LINK | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 28850-F0010 | SENSOR ASSY, BATTERY STATE | 1 | |
Note:9NRFTS..NRE210..E Production:2019-06 – 2025-12 | |||
| 28859-F2040 | HOLDER, BATTERY CURRENT SENSOR | 1 | |
Note:9NRFTS..NRE210..E Production:2019-06 – 2025-12 | |||
| — | Part does not apply to this vehicle configuration. | 89257 | — |
| 90179-06274 | standard | — | |
| 90178-C0011 | standard | — | |
| 90178-C0049 | standard | — | |
| 94151-80600 | standard | — | |
| 90119-C0074 | standard | — | |
| 90119-06951 | standard | — | |
| 90119-06A18 | standard | — | |
| 90119-C0564 | standard | — | |
| 90068-04037 | standard | — | |
| 94151-80801 | standard | — | |

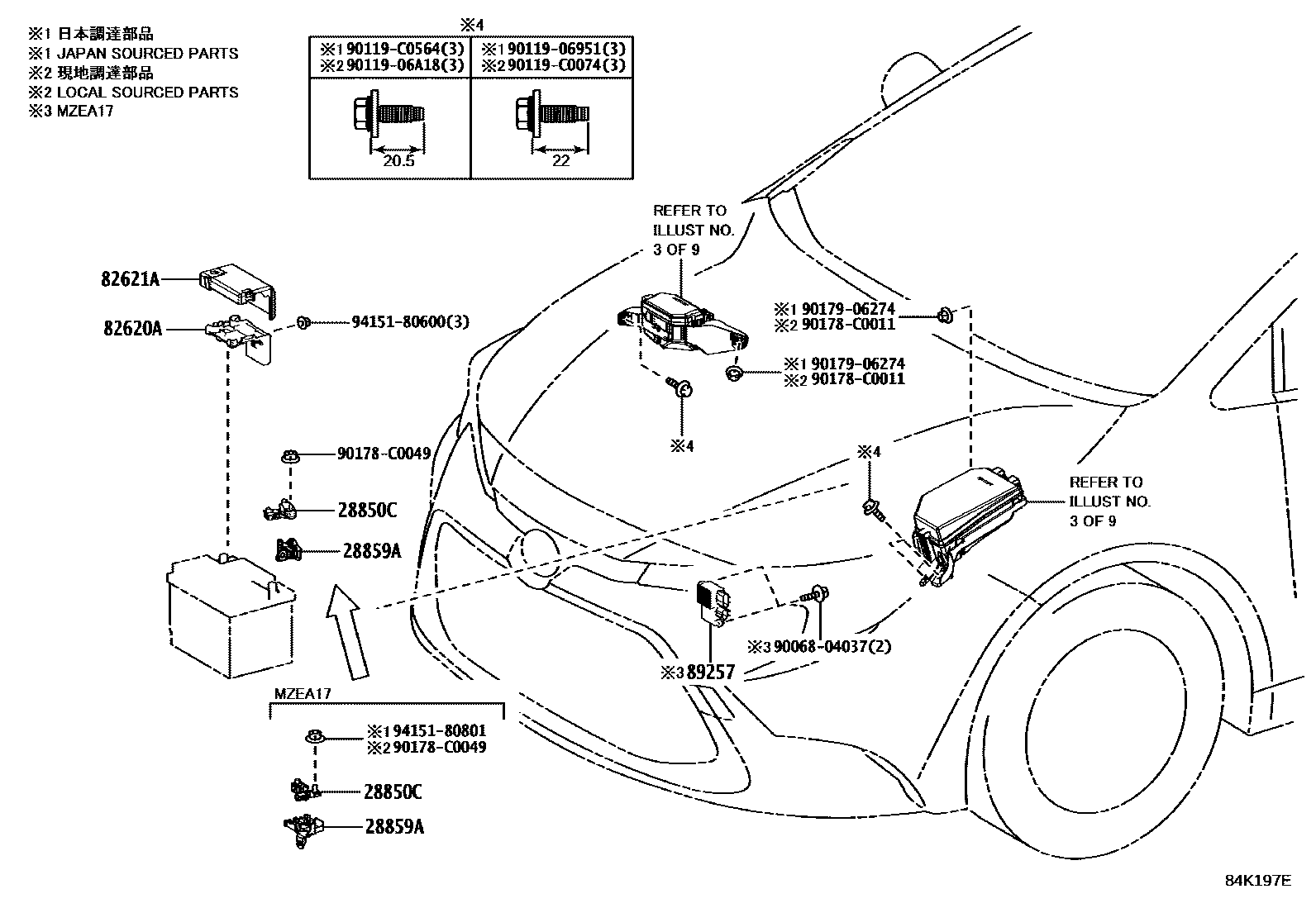

Diagram
14 parts
