Toyota Wildlander-Gtmc 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85535-0E140 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:MXAA52;AXAL5#,MXAA54..G,M Production:2024-05 – … | |||
| 85530-0E070 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:MXAA52;AXAL5#,MXAA54..G,M Production:2024-05 – … | |||
| 85535-0E140 | COVER, POWER OUTLET SOCKET, NO.2 | 1 | |
Note:MXAA52..X Production:2024-05 – … | |||
| 84010-0R300 | CONTROL & PANEL ASSY, INTEGRATION | 1 | |
Note:MXAA52 Production:2024-05 – … Spec:TYPE B:REFER ILLUST. | |||
| 85535-0E140 | COVER, POWER OUTLET SOCKET, NO.3 | 1 | |
Note:MXAA52..X Production:2024-05 – … | |||
| 85530-0E070 | SOCKET ASSY, POWER OUTLET, NO.2 | 1 | |
Note:MXAA52..X Production:2024-05 – … | |||
| 85530-0E070 | SOCKET ASSY, POWER OUTLET, NO.3 | 1 | |
Note:MXAA52..X Production:2024-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 85532 | — |
| — | Part does not apply to this vehicle configuration. | 85532C | — |
| 90167-C0004 | standard | — | |

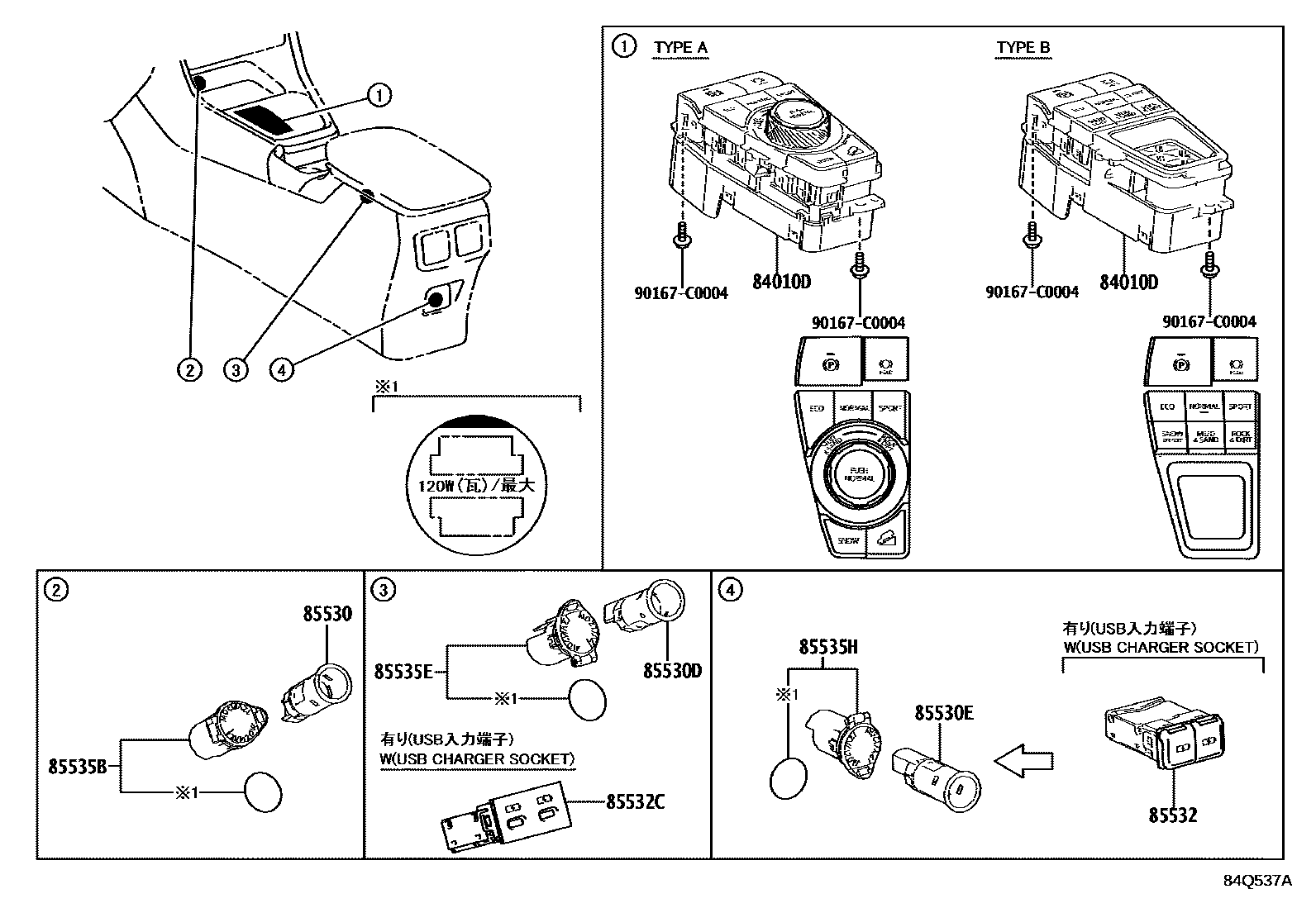

Diagram
8 parts
