Toyota Venza 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82610-48040 | BLOCK ASSY, FUSE | 1 | |
Note:MXUA8# Production:2022-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 82610C | — |
| 82660-42100 | BLOCK ASSY, RELAY, ENGINE ROOM | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … | |||
| 82660-42110 | BLOCK ASSY, RELAY | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 82660D | — |
| 82661-42070 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:MXUA8# Production:2022-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 82662B | — |
| 82663-42160 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:MXUA8# Production:2022-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 82663A | — |
| 82740-42050 | BLOCK ASSY, ENGINE ROOM RELAY | 1 | |
Note:MXUA8# Production:2022-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 82740A | — |
| 82616-58010 | PULLER, FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … | |||
| 82662-0E640 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:MXUA8# Production:2022-03 – 2024-06 | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:30A,MINI FUSE,GRN | |||
| — | Part does not apply to this vehicle configuration. | 82660H | — |
| — | Part does not apply to this vehicle configuration. | 82660E | — |
| 90982-09019 | ENGINE ROOM FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:25A,MINI FUSE | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-08295 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:30A,FEMALE,PNK,58V | |||
| 90982-08296 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:50A,FEMALE,RED,58V | |||
| 90982-08298 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:30A,TERMINAL:FEMALE | |||
| 90982-08300 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MXUA8# Production:2022-03 – … Spec:50A-30A-30A,FEMALE | |||
| 90982-08302 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:50A-30A-50A,FEMALE | |||
| — | Part does not apply to this vehicle configuration. | 85911Y | — |
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, WINDSHIELD WIPER | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, INJECTOR | 1 | |
Note:MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 82642B | — |
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | 1 | |
Note:MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY ASSY, HORN | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, HEADLAMP | 2 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-02027 | RELAY, ACC | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ACC | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 28300-21020 | RELAY ASSY, STARTER | 1 | |
Note:M20CFKS..MXUA8# Production:2022-10 – … Spec:P/N LABEL=2830021020 | |||
| 28300-F2010 | RELAY ASSY, STARTER | 1 | |
Note:M20CFKS..MXUA8# Production:2022-10 – … Spec:P/N LABEL=28300F2010 | |||
| 90987-T2005 | RELAY, VVT | 1 | |
Note:MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2004 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:MXUA8# Production:2022-03 – … | |||
| 82620-48270 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:MXUA8# Production:2022-03 – … | |||
| 90987-T2005 | RELAY, FOG LAMP | 1 | |
Note:AXUH8#,MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, IGP | 1 | |
Note:A25DFXS,M20CFKS..AXUH8#,MXUA8# Production:2022-03 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 86220A | — |
| — | Part does not apply to this vehicle configuration. | 85913F | — |
| 90119-06A18 | standard | — | |
| 90119-C0564 | standard | — | |
| 90178-06018 | standard | — | |
| 90178-C0117 | standard | — | |

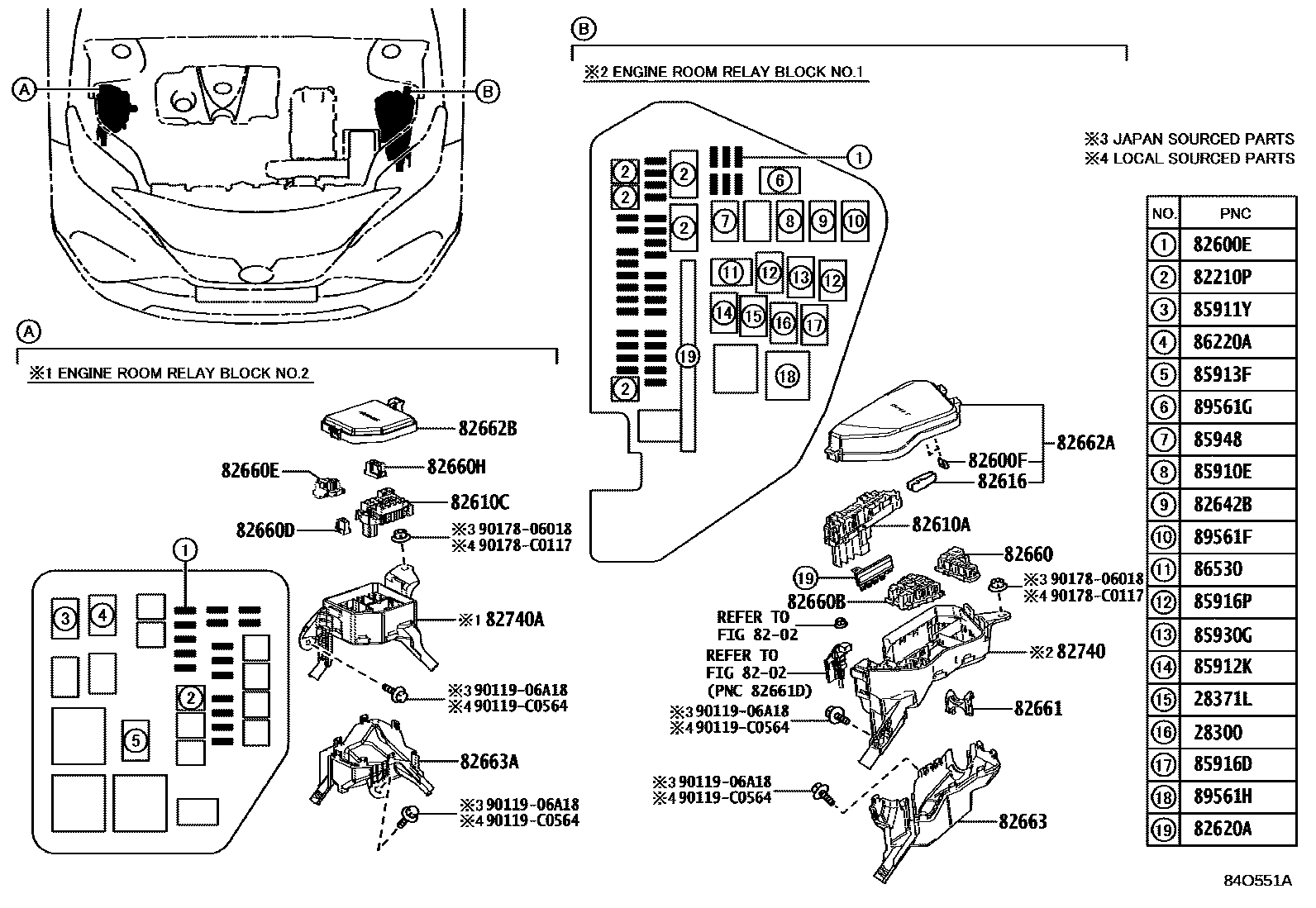

Diagram
41 parts
