Toyota Hiace 2014 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84052-12070 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,221,TRH200..4FC..(ARL,GEN);KDH223,TRH200..(03S,14S,16S)..(4FC,6FC)..(GEN,TH);GDH201,KDH201,212,222,TRH201,213,221..(02S,05S,06S,11S,13S,16S)..(4FC,6FC) Production:2013-12 – 2026-01 | |||
| 84140-26250 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:KDH223,TRH223..TH Production:2013-12 – 2018-01 | |||
| 84450-12200 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:TRH201;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,TRH213,221..GCC,MA,TH;KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,21#,220..LHD..(03S,10S,11S,13S,16S);TRH22#..(02S,06S,14S,16S)..STD..(ARL,SA,TH);GDH201,KDH202,203,220,LH212..06S,10S,12S,15S,16S;KDH201,222,TRH200,203..(02S,05S,06S,10S,15S,16S)..(4FC,5F)..(ARL,GEN,MA,SA) Production:2013-12 – … | |||
| 84652-26670 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:TRH223..TH;KDH223..KEN;KDH223..4FC..TH;GDH201,KDH203..RHD..(06S,12S);KDH201,TRH200..SP..06S..(4FC,5F) Production:2013-12 – … | |||
| 85432-58010 | SOLENOID, KEY INTERLOCK | 1 | |
Note:TRH223..4FC..GL;TRH223..(4FC,6FC)..ARL;KDH213,221,TRH200..4FC..(ARL,GEN);KDH223,TRH200..(03S,14S,16S)..(4FC,6FC)..(GEN,TH);GDH201,KDH201,212,222,TRH201,213,221..(02S,05S,06S,11S,13S,16S)..(4FC,6FC) Production:2013-12 – 2026-01 | |||
| 84306-12160 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:KDH213,223,TRH213,223..TH Production:2013-12 – 2018-09 | |||
| — | Part does not apply to this vehicle configuration. | 84247A | — |
| — | Part does not apply to this vehicle configuration. | 84307 | — |
| — | Part does not apply to this vehicle configuration. | 89245B | — |
| — | Part does not apply to this vehicle configuration. | 84244B | — |
| 90168-40129 | standard | — | |
| 90464-00551 | standard | — | |
| 90159-50199 | standard | — | |

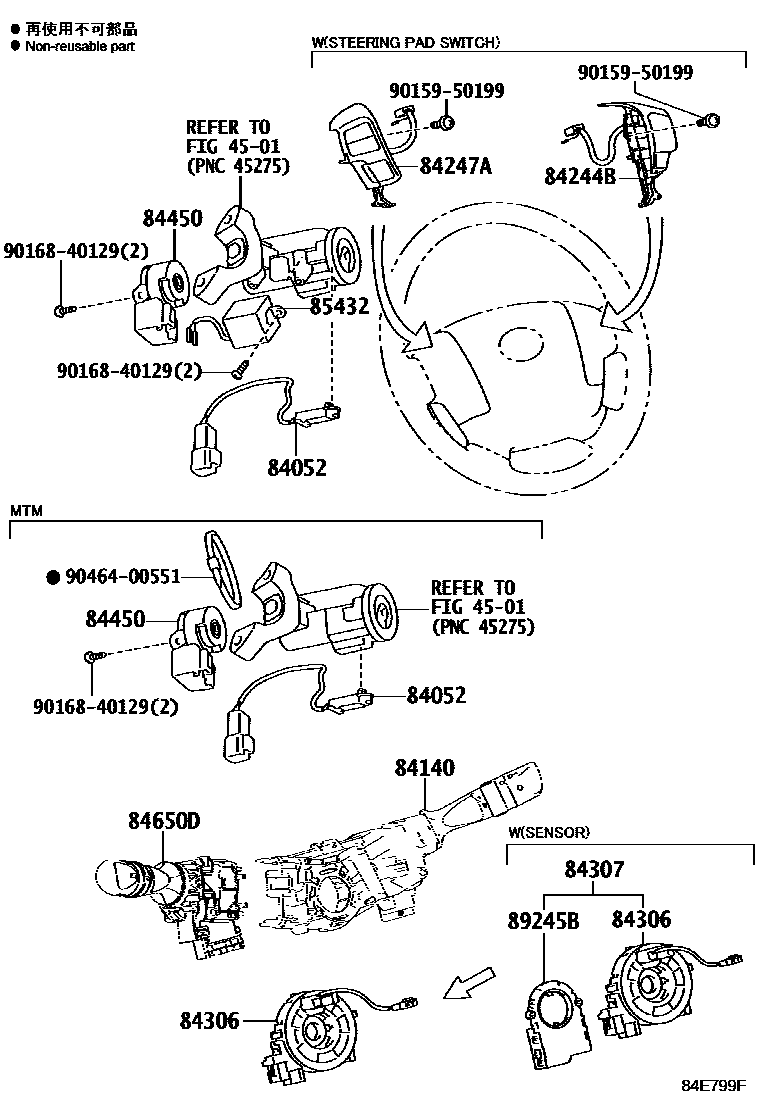

Diagram
9 parts
