Open RegionYearModelModelCode Details
USA / Canada 2021 HILUX DOUBLE CAB GGN125L-DTTHKV
Catalog: TOYOTA202608 Engine: 4000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 070 Trim Code: FR21 Production: 202108-202208 Model Short: GGN125L-DTTHKV Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2021 — Headlamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85967-12050 COMPUTER, LIGHT CONTROL 2
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H Production:2021-08 – 2023-01
90075-99120 PACKING, HEADLAMP LEVELING MOTOR BASE 2
Note:GUN135..LHD..6F..H;GUN135..6FC..H..PH;GUN126..LHD..S..GEN;GUN122,TGN121..ARL,SA;GUN135..6FC..(GEN,TH);GUN125..LHD..L..(GHA,SA);GUN125,135..RHD..6F..(KEN,SA,TH);GGN125,GUN125,126,136,TGN126..(MMRP,THP)..H Production:2021-08 – 2023-03
81110-YP071 HEADLAMP ASSY, RH 1
Note:GGN125,GUN126..GCC;GUN125..6F..H..GCC Production:2021-08 – 2021-11 Replacements:81110-YP072 (fitment: unknown) Spec:FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81150-YP071 HEADLAMP ASSY, LH 1
Note:GGN125,GUN126..GCC;GUN125..6F..H..GCC Production:2021-08 – 2021-11 Replacements:81150-YP072 (fitment: unknown) Spec:FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81116-0KE80 BRACKET, HEADLAMP, RH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H Production:2021-08 – 2023-01
81156-0KE80 BRACKET, HEADLAMP, LH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H Production:2021-08 – 2023-01
81129-0KE80 REFLECTOR, HEADLAMP, RH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H Production:2021-08 – 2023-01
81169-0KE80 REFLECTOR, HEADLAMP, LH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H Production:2021-08 – 2023-01
85661-02040 MOTOR, HEADLAMP LEVELING, RH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H Production:2021-08 – 2023-01 Replacements:85661-12020 (fitment: unknown)
85661-02040 MOTOR, HEADLAMP LEVELING, LH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H Production:2021-08 – 2023-01 Replacements:85661-12020 (fitment: unknown)
81140-0KK90 UNIT ASSY, HEADLAMP LED, RH 1
Note:GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..LHD..(MMRP,THP)..H Production:2021-08 – 2022-10
81160-0KK90 UNIT ASSY, HEADLAMP LED, LH 1
Note:GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..LHD..(MMRP,THP)..H Production:2021-08 – 2022-10
81145-YP071 UNIT ASSY, HEADLAMP, RH 1
Note:GGN125,GUN126..GCC;GUN125..6F..H..GCC Production:2021-08 – 2022-08 Replacements:81145-YP370 (fitment: unknown) Spec:FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81185-YP071 UNIT ASSY, HEADLAMP, LH 1
Note:GGN125,GUN126..GCC;GUN125..6F..H..GCC Production:2021-08 – 2022-08 Replacements:81185-YP370 (fitment: unknown) Spec:FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
8110A-YP090 LENS SUB-ASSY, HEADLAMP, RH 1
Note:GGN125,GUN126..GCC;GUN125..6F..H..GCC Production:2021-08 – 2022-08 Spec:FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
8110B-YP090 LENS SUB-ASSY, HEADLAMP, LH 1
Note:GGN125,GUN126..GCC;GUN125..6F..H..GCC Production:2021-08 – 2022-08 Spec:FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
81132-48C30 GASKET, HEADLAMP LENS 2
Note:GUN125..RHD..6FC..L;GUN125..6F..L..(ARL,IDN);GUN135..L..(ARL,GEN,TH,VN);GGN125,GUN125,126,13#,TGN126..(MMRP,PKNP,THP)..(H,S) Production:2021-08 – 2023-01
90075-02078 standard —
90159-50388 standard —
90189-T0007 standard —
Replacements:90189-05142 (fitment: unknown)
90189-05144 standard —
90105-T0151 standard —

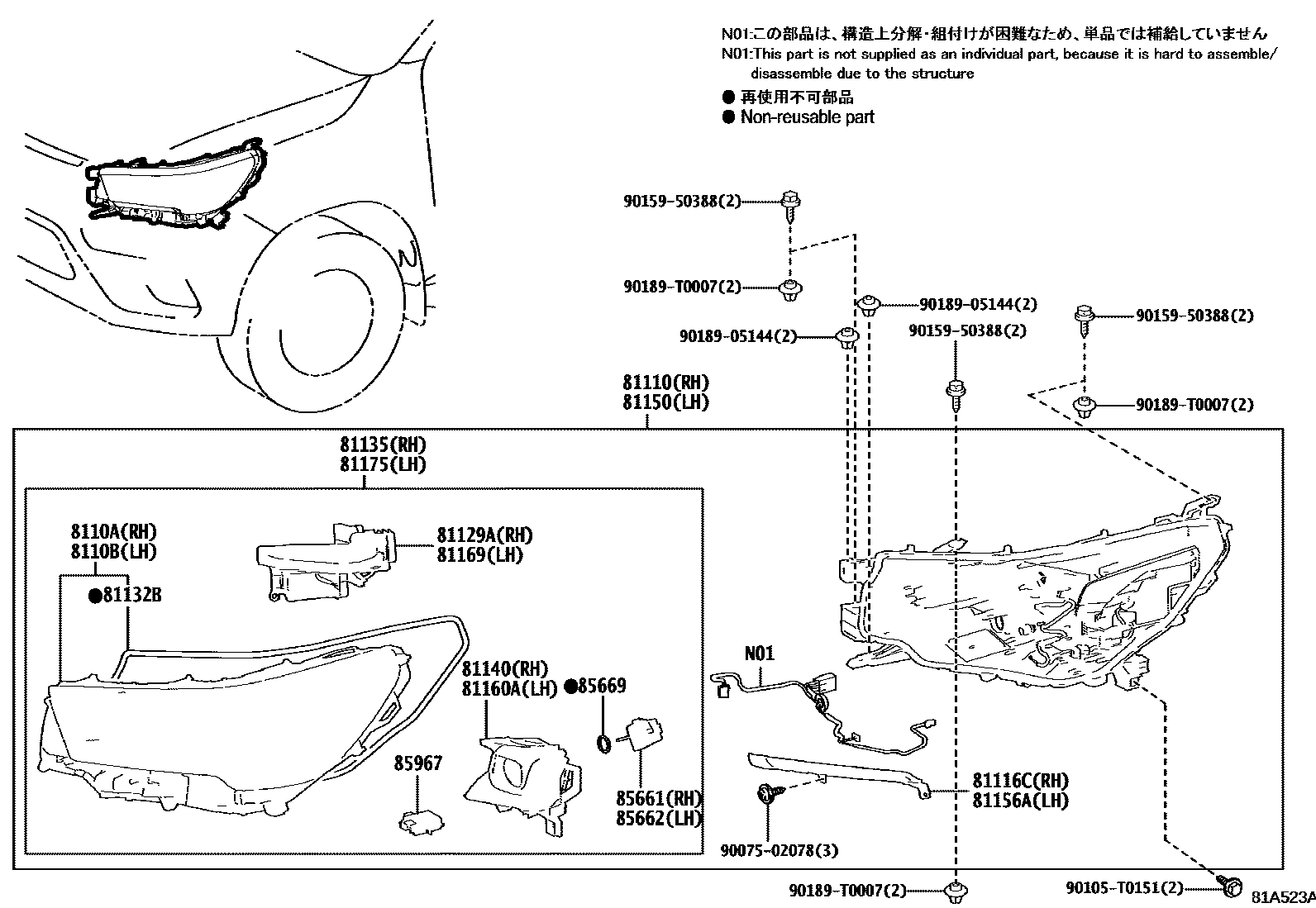

Diagram

22 parts
Toyota HILUX-DOUBLE-CAB 2021 — Headlamp
