Open RegionYearModelModelCode Details
USA / Canada 2021 HILUX DOUBLE CAB GGN125L-DTTHKV
Catalog: TOYOTA202608 Engine: 4000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 070 Trim Code: FR21 Production: 202108-202208 Model Short: GGN125L-DTTHKV Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2021 — Rear Combination Lamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90981-15028 BULB, REAR TURN SIGNAL LAMP 2
Note:GUN125,TGN126..LHD..L..GEN;GUN122,TGN121..ARL,GEN,PH,SA,TH;GUN125,TGN126..LHD..H..(GCC,GEN);GUN125..RHD..(KENP,SAP,THP)..CBU;GUN125,TGN126..LHD..(SAP,THP)..(LA,PH,SA,VN);GGN125,GUN120,121,126,13#,LAN125,TGN136..(GHAP,KENP,MMRP,SAP,THP)..CBU Production:2021-08 – 2023-03 Spec:12V 21W,AMBER
81496-0D040 GUIDE, REAR COMBINATION LAMP 2
Note:TGN126..THP..H..LA;TGN126..L..(GCC,SA);GUN125,126..LHD..S..GEN;GUN126..S..(ARL,SA)..CBU;GUN125,135..H..(GEN,IDN,PH);TGN126..(H,S)..(GCC,GEN,SA);GUN126..(GHAP,KENP,MMRP,SAP,THP)..H..CBU;GUN125,135,TGN136..(ARL,GCC,KEN,SA,TH)..CBU;GGN125,GUN122,136,LAN125,TGN120,121..(SAP,THP)..(ARL,GCC,LA,SA)..CBU Production:2021-08 – 2023-03 Replacements:81496-52020 (fitment: unknown) Spec:(L) Spec Note:(Local made)
81496-52020 GUIDE, REAR COMBINATION LAMP 2
Note:GUN126..(GHAP,KENP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122,125,13#,LAN125,TGN120,121,126,136..(KENP,SAP,THP)..CBU Production:2021-08 – 2023-03 Spec:(J) Spec Note:(Japan made)
81555-0K440 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH 1
Note:TGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,TWN) Production:2021-08 – 2022-08
81555-0K430 SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,PKNP,THP)..H..CBU Production:2021-08 – 2023-01
81561-0K450 LENS & BODY, REAR COMBINATION LAMP, LH 1
Note:TGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,TWN) Production:2021-08 – 2021-11 Replacements:81561-0K451 (fitment: unknown)
81551-0K430 LENS & BODY, REAR COMBINATION LAMP, RH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..(MMRP,THP)..H..CBU Production:2021-08 – 2021-11 Replacements:81551-0K431 (fitment: unknown)
81560-0K450 LAMP ASSY, REAR COMBINATION, LH 1
Note:TGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,TWN) Production:2021-08 – 2021-10 Replacements:81560-0K451 (fitment: unknown)
81550-0K430 LAMP ASSY, REAR COMBINATION, RH 1
Note:GUN125,135..TH;GUN135..LHD..H;GUN126..LHD..S..GEN;GGN125,GUN125,126,136,TGN126..THP..H..CBU Production:2021-08 – 2021-10 Replacements:81550-0K431 (fitment: unknown)
8158A-12260 LED, BACK-UP LAMP 1
Note:TGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,GHA,TWN) Production:2021-08 – 2023-03
81536-15120 LED, STOP LAMP 2
Note:GUN125,135..TH;GUN126..LHD..S..GEN;GUN125,135..H..(GCC,GEN,IDN,PH);GGN125,GUN126,136,TGN126..(GHAP,KENP,MMRP,SAP,THP)..H..CBU Production:2021-08 – 2023-03 Replacements:81965-70010 (fitment: unknown)
8158A-0D610 LED, REAR FOG LAMP 1
Note:TGN126..H..(GCC,GEN);GGN125,GUN125,126..H..(GCC,GHA,TWN) Production:2021-08 – 2023-03
76817-26040 standard —
90105-T0151 standard —

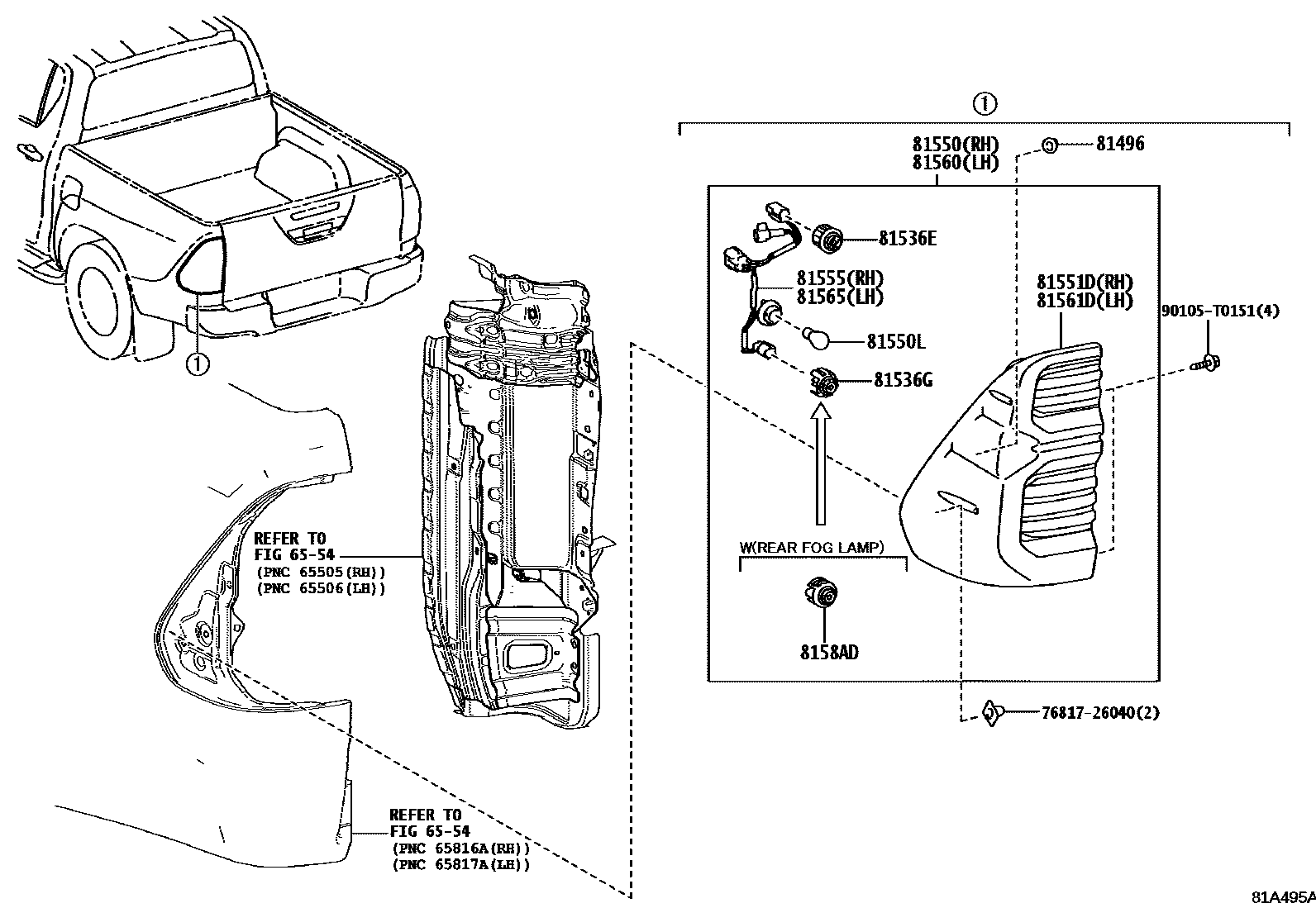

Diagram

14 parts
Toyota HILUX-DOUBLE-CAB 2021 — Rear Combination Lamp
