Toyota Hilux 2012 — Mirror
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 87810-AA011 | MIRROR ASSY, INNER REAR VIEW | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-12 – 2013-05 Spec:TYPE B:REFER ILLUST. | |||
| 87810-06041 | MIRROR ASSY, INNER REAR VIEW | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-12 – … Spec:TYPE A:REFER ILLUST. | |||
| 87910-0K071 | MIRROR ASSY, OUTER REAR VIEW, RH | 1 | |
Note:TGN16..SCB..SA;TGN16..(DCB,SCB)..GEN;KUN2#,35,LAN15,25..LHD..DLX..(GEN,SA);KUN15,TGN26..LHD..(DCB,SCB)..(DLX,STD)..(GEN,PHL,SA) Production:2011-07 – 2015-12 Spec:NO PAINT REQ. | |||
| 87940-0K051 | MIRROR ASSY, OUTER REAR VIEW, LH | 1 | |
Note:TGN16..SCB..SA;TGN16..(DCB,SCB)..GEN;KUN2#,35,LAN15,25..LHD..DLX..(GEN,SA);KUN15,TGN26..LHD..(DCB,SCB)..(DLX,STD)..(GEN,PHL,SA) Production:2011-07 – 2015-12 Spec:NO PAINT REQ. | |||
| — | Part does not apply to this vehicle configuration. | 87915 | — |
| — | Part does not apply to this vehicle configuration. | 87945 | — |
| 87931-0K070 | OUTER MIRROR, RH | 1 | |
Note:KUN25..5F..PKN;KUN35..DLX..(GEN,SA);KUN15..DCB..DLX..DCR..(GEN,PHL,SA,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GEN,PHL,PKN,SA,TH);GGN15,25,KUN10,16,2#,LAN15,25,35,TGN10,15,16,26,36..(DCB,SADCB,SCB,THDCB,THSCB,XTR)..(DLX,STD)..(ARL,GEN,IDN,SA,TH) Production:2011-07 – 2016-09 | |||
| 87961-0K050 | MIRROR OUTER, LH | 1 | |
Note:KUN25..5F..PKN;KUN35..DLX..(GEN,SA);KUN15..DCB..DLX..DCR..(GEN,PHL,SA,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GEN,PHL,PKN,SA,TH);GGN15,25,KUN10,16,2#,LAN15,25,35,TGN10,15,16,26,36..(DCB,SADCB,SCB,THDCB,THSCB,XTR)..(DLX,STD)..(ARL,GEN,IDN,SA,TH) Production:2011-07 – 2016-09 | |||
| 90178-T0023 | standard | — | |

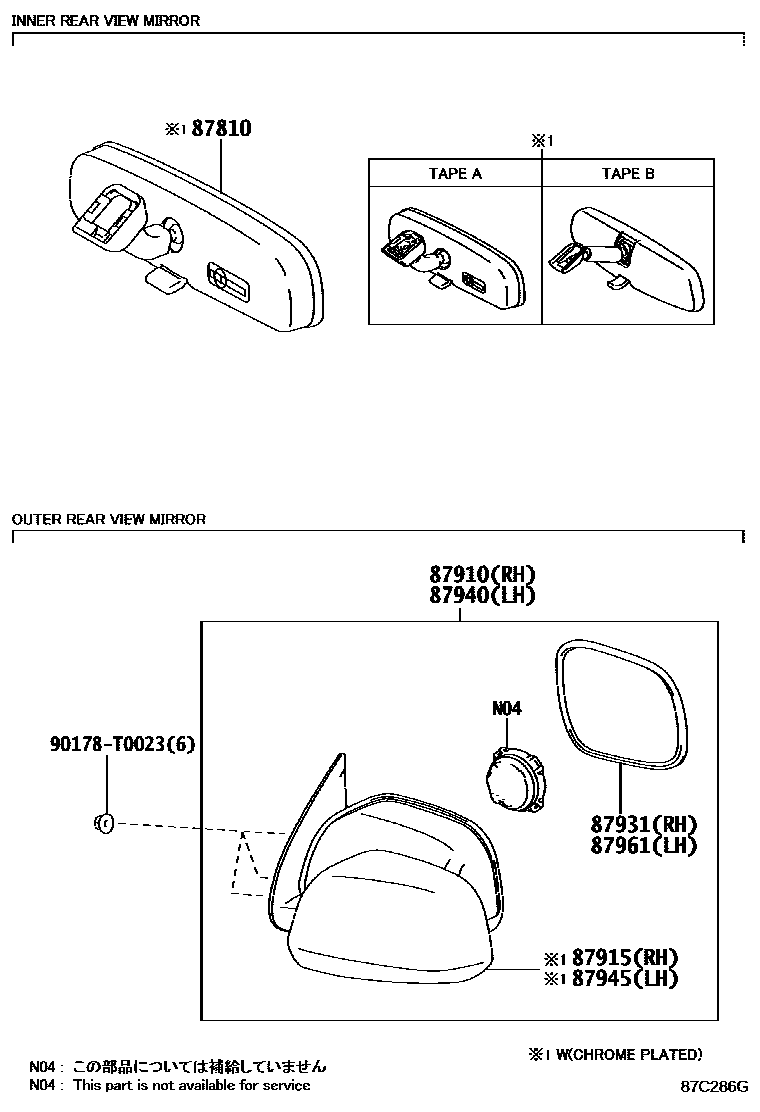

Diagram
7 parts
