Toyota Hilux 2012 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 81980-06030 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … | |||
| 90982-08284 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:40A,TERM.:FEMALE,GRN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:20A,MINI FUSE,YELLOW | |||
| — | Part does not apply to this vehicle configuration. | 82660B | — |
| 82730-0K060 | BLOCK ASSY, DRIVER SIDE JUNCTION | 1 | |
Note:KUN15..LHD..SCB..DLX..DCR;KUN15..LHD..(DCB,XTR)..DLX..(GCC,GEN,SA);KUN10,2#,3#..LHD..5F..DLX..(DCR,HDCR)..(CO,GCC,GEN,LA,SA) Production:2012-11 – 2013-01 | |||
| 84340-09040 | SWITCH ASSY, STOP LAMP | 1 | |
Note:KUN25..SR;KUN25..SCB..MA;KUN25..DLX..(CO,GCC,GEN,IDN,LA,SA);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH Production:2011-07 – 2017-06 Replacements:84340-19025 (fitment: unknown) | |||
| 84550-02030 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:LAN15,25..LHD;GGN15,25,35,KUN1#,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:84550-16060 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 89530C | — |
| 84345-0K010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:KUN25..SR;KUN25..SCB..MA;KUN25..DLX..(CO,GCC,GEN,IDN,LA,SA);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH Production:2011-07 – … Replacements:84345-51010 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85934 | — |
| — | Part does not apply to this vehicle configuration. | 89533A | — |
| — | Part does not apply to this vehicle configuration. | 85916N | — |
| — | Part does not apply to this vehicle configuration. | 89533 | — |
| — | Part does not apply to this vehicle configuration. | 85916L | — |
| 88280-42010 | SWITCH ASSY, CLUTCH | 1 | |
Note:GGN15,25,KUN1#,2#,3#..5F Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 28371 | — |
| — | Part does not apply to this vehicle configuration. | 85912 | — |
| 90982-09022 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09024 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:25A,MINI FUSE | |||
| 90987-T2003 | RELAY, HEATER, NO.1 | 1 | |
Note:KUN25..LHD..SA;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Replacements:90987-04010 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 82210J | — |
| — | Part does not apply to this vehicle configuration. | 85930G | — |
| — | Part does not apply to this vehicle configuration. | 87346K | — |
| — | Part does not apply to this vehicle configuration. | 82810 | — |
| — | Part does not apply to this vehicle configuration. | 82642A | — |
| 90119-T0420 | standard | — | |
Replacements:91671-80618 (fitment: unknown) | |||
| 91671-80618 | standard | — | |
| 90105-T0066 | standard | — | |
Replacements:91551-80612 (fitment: unknown) | |||
| 90159-T0003 | standard | — | |
| 90178-T0018 | standard | — | |
| 82711-1E320 | standard | — | |

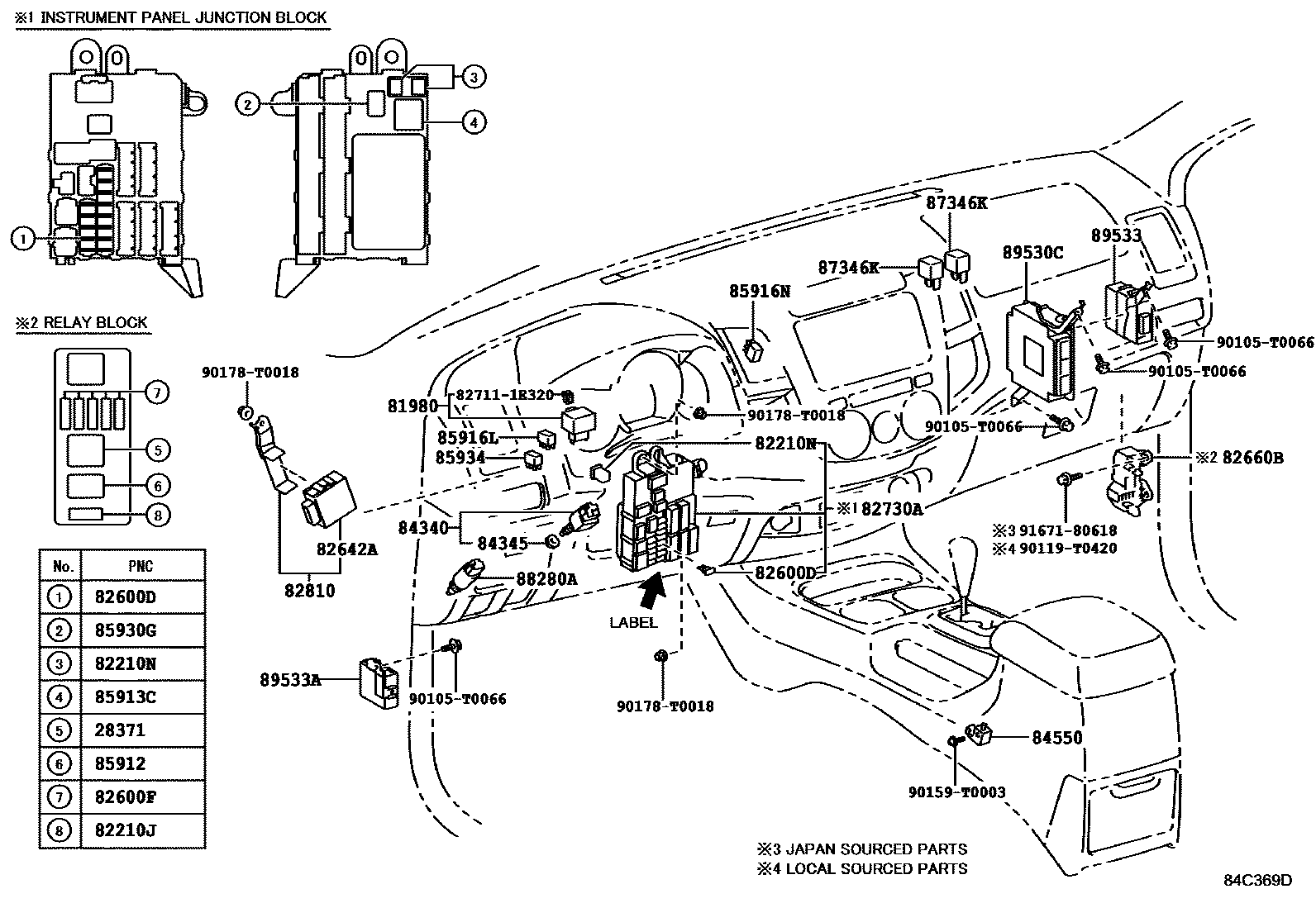

Diagram
20 parts
