Toyota Hilux 2014 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 85535B | — |
| — | Part does not apply to this vehicle configuration. | 85539 | — |
| — | Part does not apply to this vehicle configuration. | 85530 | — |
| 85513-28010 | COVER, CIGARETTE LIGHTER | 1 | |
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 85515 | — |
| 85533-30060 | LENS, CIGARETTE LIGHTER INDICATOR | 1 | |
Note:TGN36..LHD;KUN26..SCB..5F..IV3;KUN26..LHD..5FC..SR;KUN15..DCB..DLX..DCR;KUN26..(4FC,5FC)..IV3;KUN35,TGN26..THDCB..DLX;TGN16,26..DLX..(ANCOM,TH);KUN35..DLX..(CO,LA,PHL,SA);KUN26..(4FC,5F)..SR..(CO,LA);KUN36,TGN10..(GCC,IDN,LA)..CBU;KUN26..(DCB,SADCB,SCB,THDCB)..DLX..CBU;KUN10,16,25,TGN11..SCB..(ARL,GCC,MA,TH);KUN26..LHD..(SADCB,THDCB)..(4FC,5F)..SR;TGN16,26..(DCB,SCB,XTR)..(ARL,GCC,GEN,LA,SA);KUN25,LAN15,25,35,TGN15..DLX..(CO,GCC,GEN,LA,SA);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,SA,TH) Production:2011-07 – … | |||
| 85500-28050 | LIGHTER ASSY, CIGARETTE | 1 | |
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … | |||
| 85520-28010 | KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | 1 | |
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … | |||
| 85510-22110 | SOCKET & RETAINER ASSY, CIGARLIGHTER | 1 | |
Note:KUN25,TGN10..(DLX,SR)..(CO,GCC,GEN,IDN,LA,MA,SA,TH);GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 85500B | — |
| 84660-71010 | SWITCH, COOLER | 1 | |
Note:LAN25..SCB;TGN36..5F..HTWCF;KUN15,35..SR..PHL;KUN35..SCB..LA..CBU;KUN26..DLX..DCR..CBU;TGN16..5F..(ARL,GCC);KUN26..DCB..5FC..IV3;TGN26..HTWC..(GCC,LA);TGN26..DCB..DLX..ANCOM;KUN36..DCB..5F..(LA,SA);KUN26,TGN16..4FC..(GCC,LA,PHL);KUN25,TGN26..(THDCB,THSCB)..DLX;TGN36..LHD..(DCB,THDCB)..5F..HTWC;KUN35..(DCB,THDCB)..DLX..(GEN,LA,SA);KUN26..DCB..5F..SR..DCR..(LA,PHL,SA);KUN26,TGN36..(SCB,XTR)..5F..(ANCOM,ARL)..IV3;KUN1#,LAN15,35,TGN10,11,15..DLX..(ARL,GCC,SA);KUN25,TGN26..DLX..(HDCR,HTWCF)..(GCC,LA,SA)..CBU Production:2011-07 – … Spec:AIR CONDITIONER-SINGLE AIR CONDITIONER | |||
| — | Part does not apply to this vehicle configuration. | 84725B | — |
| — | Part does not apply to this vehicle configuration. | 84725A | — |
| 84870-0K010 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:KUN35..LHD..SR;TGN16..DCB..SA;TGN36..DCB..HTWCF;KUN26..LHD..(4FC,5FC);KUN25..RHD..DLX..(IDN,SA);KUN26,36,TGN36..LHD..5F..SR;KUN26,TGN26..RHD..(ARL,GEN);GGN15,25,KUN16,TGN26..ARL,CO,LA;TGN36..(DCB,THDCB)..(ANCOM,GEN);KUN15,TGN16,26..(THDCB,XTR)..GEN;KUN35..(DCB,SCB,XTR)..DLX..(GEN,PHL,SA);KUN15,25,TGN16..(DCB,SCB)..SR..(GCC,GEN,MA,PHL,SA);KUN15,TGN26..(DCB,SMT)..DLX..(DCR,HTWC)..(ANCOM,TH) Production:2011-07 – … Replacements:84870-34010 (fitment: unknown) | |||
| 84872-06040 | SWITCH ASSY, OUTER MIRROR, NO.2 | 1 | |
Note:KUN35..LHD..SR;TGN16..DCB..SA;TGN36..DCB..HTWCF;KUN26..LHD..(4FC,5FC);KUN25..RHD..DLX..(IDN,SA);KUN26,36,TGN36..LHD..5F..SR;KUN26,TGN26..RHD..(ARL,GEN);GGN15,25,KUN16,TGN26..ARL,CO,LA;TGN36..(DCB,THDCB)..(ANCOM,GEN);KUN15,TGN16,26..(THDCB,XTR)..GEN;KUN35..(DCB,SCB,XTR)..DLX..(GEN,PHL,SA);KUN15,25,TGN16..(DCB,SCB)..SR..(GCC,GEN,MA,PHL,SA);KUN15,TGN26..(DCB,SMT)..DLX..(DCR,HTWC)..(ANCOM,TH) Production:2011-07 – … Replacements:84872-52030 (fitment: unknown) | |||
| 84119-0K010 | RHEOSTAT, LIGHT CONTROL | 1 | |
Note:KUN26..5FC..DLX..ARL;KUN26..LHD..DCB..GEN;KUN35..SR..(GEN,PHL,SA);KUN26..(SADCB,THDCB)..SR;GGN15,25,35,KUN16,36,TGN36..SR;KUN26..SR..(ARL,CO,LA,MA,PHL,SA,TH);KUN15,25,TGN16,26..DCB..SR..(GCC,LA,SA) Production:2011-07 – … | |||
| 84118-0K010 | KNOB, LIGHT CONTROL RHEOSTAT | 1 | |
Note:KUN26..5FC..DLX..ARL;KUN26..LHD..DCB..GEN;KUN35..SR..(GEN,PHL,SA);KUN26..(SADCB,THDCB)..SR;GGN15,25,35,KUN16,36,TGN36..SR;KUN26..SR..(ARL,CO,LA,MA,PHL,SA,TH);KUN15,25,TGN16,26..DCB..SR..(GCC,LA,SA) Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 84790 | — |
| — | Part does not apply to this vehicle configuration. | 84790B | — |
| — | Part does not apply to this vehicle configuration. | 84988L | — |
| — | Part does not apply to this vehicle configuration. | 84152 | — |
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| — | Part does not apply to this vehicle configuration. | 87290B | — |
| 90011-01056 | BULB, HAZARD WARNING SIGNAL SWITCH | 1 | |
Note:KUN16,35,TGN16;KUN25..LHD..DLX;TGN36..SCB,THDCB;TGN36..DCB..HTWCF;KUN15..LHD..DLX..SA;TGN26..DLX..HTWC..LA;TGN36..DCB..DLX..HTWC;TGN26..ANCOM,CO,GCC,GEN,SA;KUN15,25..RHD..(GEN,IDN,MA,SA,TH);KUN26,36..(SCB,THDCB,XTR)..(4FC,5F)..SR..(GEN,SA);KUN26,36..(DCB,SADCB,SMT)..SR..(CO,GEN,MA,PHL,TH);KUN15,TGN26..LHD..(DCR,HDCR,HTWCF)..(GCC,GEN,LA,PHL);GGN15,25,KUN10,26,36,LAN15,25,35,TGN10,11,15..DLX,STD Production:2011-07 – … Spec:14V 0.91W | |||
| 84332-0K010 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:KUN16,35,TGN16;KUN25..LHD..DLX;TGN36..SCB,THDCB;TGN36..DCB..HTWCF;KUN15..LHD..DLX..SA;TGN26..DLX..HTWC..LA;TGN36..DCB..DLX..HTWC;TGN26..ANCOM,CO,GCC,GEN,SA;KUN15,25..RHD..(GEN,IDN,MA,SA,TH);KUN26,36..(SCB,THDCB,XTR)..(4FC,5F)..SR..(GEN,SA);KUN26,36..(DCB,SADCB,SMT)..SR..(CO,GEN,MA,PHL,TH);KUN15,TGN26..LHD..(DCR,HDCR,HTWCF)..(GCC,GEN,LA,PHL);GGN15,25,KUN10,26,36,LAN15,25,35,TGN10,11,15..DLX,STD Production:2011-07 – … | |||
| 90170-T0001 | standard | — | |
Replacements:90170-09002 (fitment: unknown) | |||

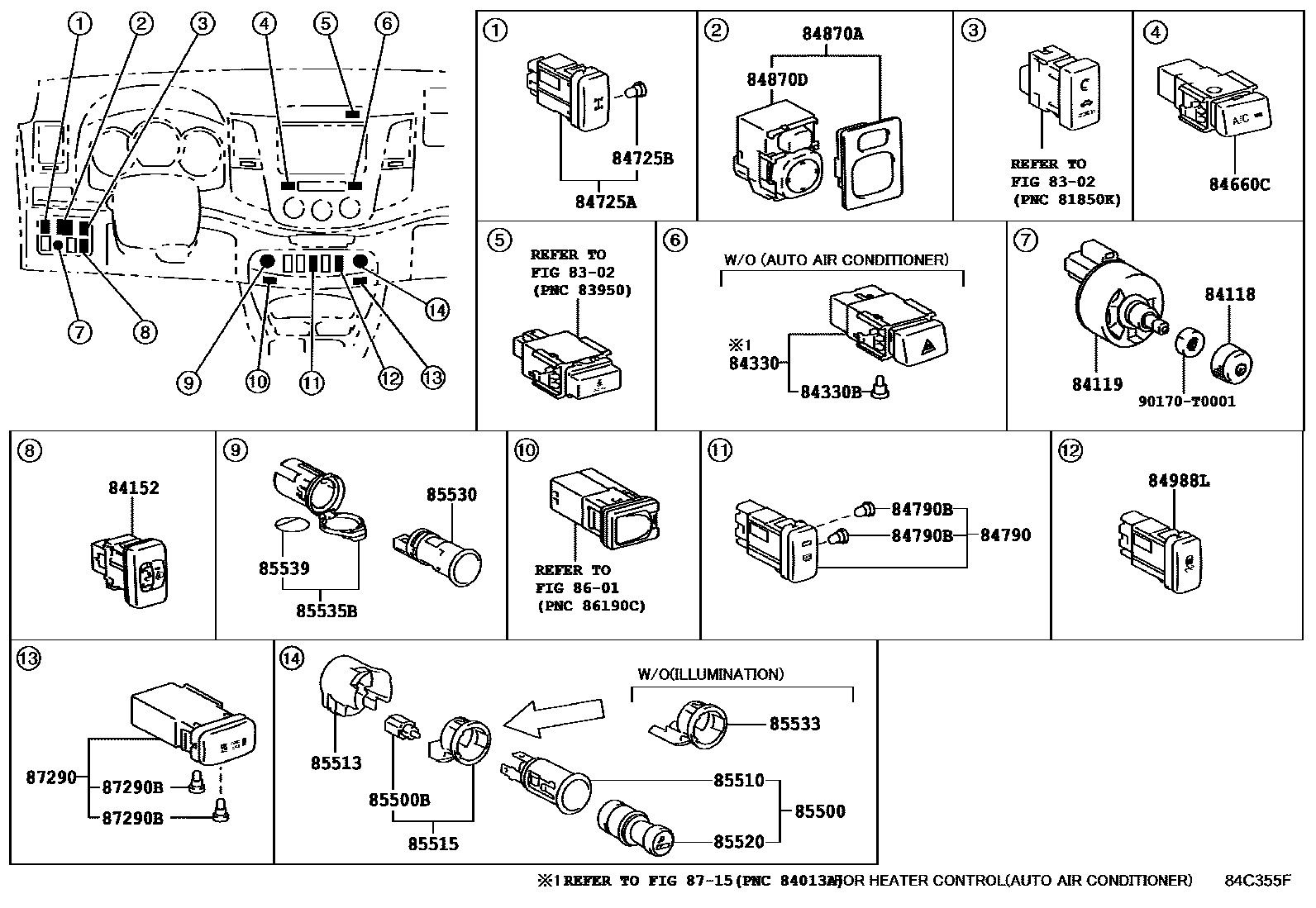

Diagram
13 parts
