Toyota Yaris 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84210 | — |
| 89465-52740 | SENSOR, OXYGEN | 1 | |
Note:NSP151..R..H;NSP152..HTWC;NSP150..BZ,GCC;NSP150..LHD..CVT..GEN;NSP151..CVT..(GCC,GEN)..R;NSP151..(AGT,BZ,GCC,GEN)..(D,G,V) Production:2017-09 – 2023-02 | |||
| 84540-52070 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:NSP152..HTWC;NSP151..VN..R;NSP150,151..GCC..G;NSP150,151..CVT..(B,C,H) Production:2017-09 – … | |||
| — | Part does not apply to this vehicle configuration. | 89530C | — |
| 89467-52110 | SENSOR, AIR FUEL RATIO | 1 | |
Note:NSP152 Production:2017-09 – 2019-10 | |||
| 83530-28020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:NSP152..HTWC;NSP150,151..GCC..G;NSP151..(D,G,V)..(B,C,H);NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(AGT,BZ)..(D,R) Production:2017-09 – … Spec:DENSO | |||
| 83530-60020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:NSP152..HTWC;NSP150,151..GCC..G;NSP151..(D,G,V)..(B,C,H);NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(AGT,BZ)..(D,R) Production:2017-09 – … Spec:YAZAKI | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:NSP152..HTWC;NSP150,151..GCC..G;NSP151..(D,G,V)..(B,C,H);NSP151..CVT..(IDN,MA,VN)..R;NSP150,151..(AGT,BZ)..(D,R) Production:2017-09 – … | |||
| — | Part does not apply to this vehicle configuration. | 83181G | — |
| — | Part does not apply to this vehicle configuration. | 83181H | — |
| 82715-52N30 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:NSP152 Production:2017-09 – 2019-10 Spec:TYPE A:REFER ILLUST. | |||
| 82715-52W60 | BRACKET, EXHAUST SENSOR CLAMP | 1 | |
Note:NSP150,152..CVT..A Production:2017-09 – 2019-11 | |||
| 90430-18008 | standard | — | |
| 91553-81014 | standard | — | |
| 91651-40620 | standard | — | |
| 91551-80820 | standard | — | |
| 90119-T0237 | standard | — | |
Replacements:91671-80816 (fitment: unknown) | |||
| 90119-T0221 | standard | — | |
Replacements:91611-40825 (fitment: unknown) | |||
| 91551-80835 | standard | — | |
| 90105-T0156 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 90119-T0134 | standard | — | |
Replacements:91671-80612 (fitment: unknown) | |||
| 90105-T0178 | standard | — | |
Replacements:91553-81014 (fitment: unknown) | |||
| 90119-T0342 | standard | — | |
Replacements:91671-80820 (fitment: unknown) | |||
| 91671-80816 | standard | — | |

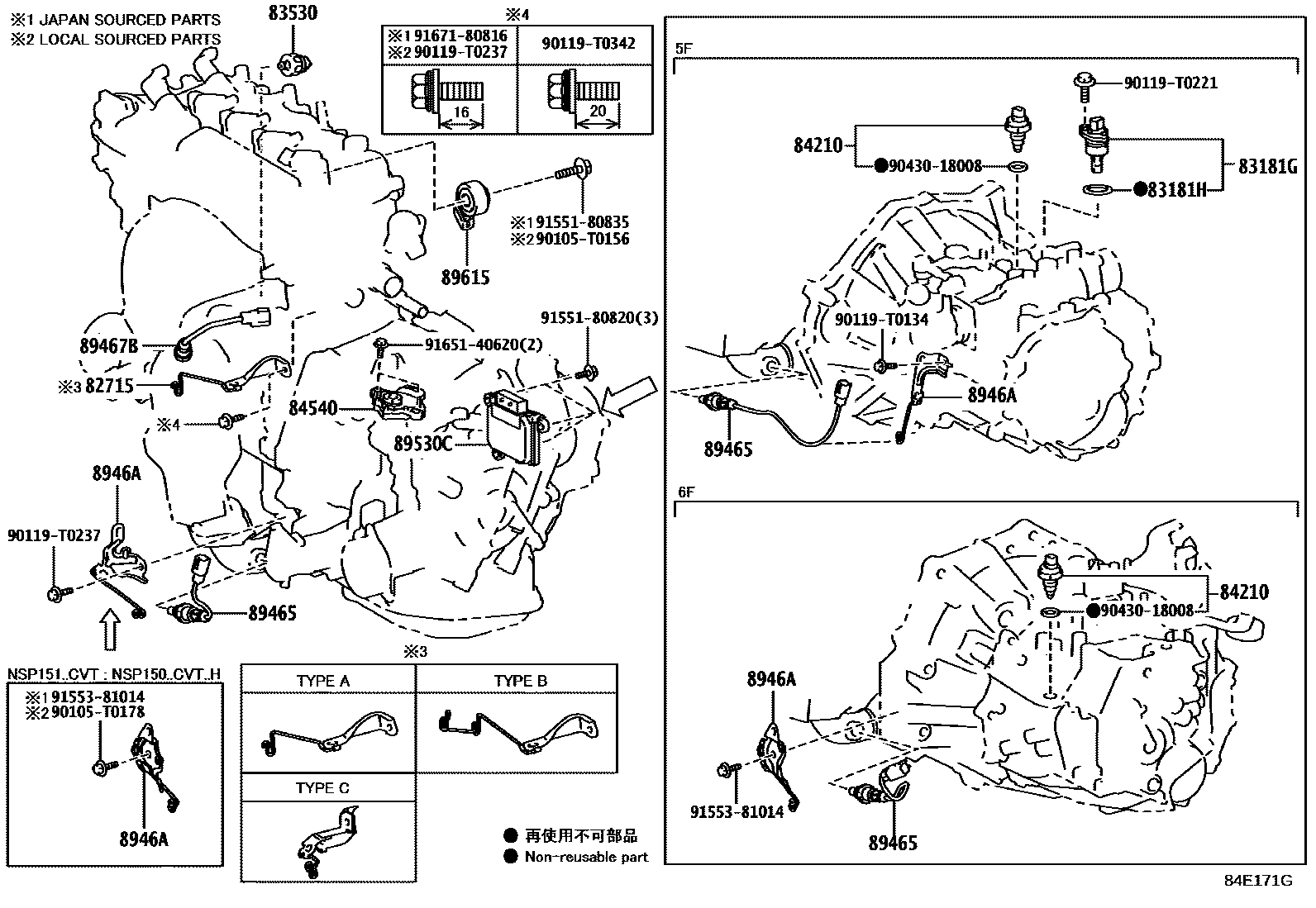

Diagram
20 parts
