General 2013 COROLLA ALTIS ZRE142L-GEXGKH
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: 1.8G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: VIETNAM Color Code: 4R0 Production: 201010-201407 Model Short: ZRE142L-GEXGKH Region: OTHER Native Region: GR

Toyota Corolla-Altis 2013 — Front Fender Apron & Dash Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
53701-02220 APRON SUB-ASSY, FRONT FENDER, RH 1
Note:ZRE143..CVFC;NDE140,ZRE141..16E,16G,16V,E,G;ZRE142,ZZE141..(16G,18E,18EL,18G,18J,18V,E,G,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,TH,VN) Production:2010-07 – 2014-07 Replacements:53701-12A20 (fitment: unknown) Fitment:Matches · configuration
53702-02171 APRON SUB-ASSY, FRONT FENDER, LH 1
Note:NDE140,ZRE14#..GCC,IDN,IND,MA,PHL,TAIW,TH,VN Production:2011-08 – 2014-07 Fitment:Matches · configuration
53712-02110 APRON, FRONT FENDER, FRONT LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53723-12080 REINFORCEMENT, FRONT SPRING SUPPORT, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G) Production:2010-07 – … Fitment:Matches · configuration
53724-12070 REINFORCEMENT, FRONT SPRING SUPPORT, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G) Production:2010-07 – … Fitment:Matches · configuration
53732-12140 MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G) Production:2010-07 – … Fitment:Matches · configuration
53814-02080 EXTENSION, FRONT FENDER, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
55101-02A60 PANEL SUB-ASSY, DASH 1
Note:ZRE142,143..CVFC..VN Production:2010-10 – 2014-07 Fitment:Matches · configuration
55129-32030 COVER, DASH PANEL HOLE 1
Note:ZRE143..CVFC;NDE140,ZRE141,142..GCC,IDN,IND,MA,PHL,TAIW,TH,VN Production:2010-07 – 2014-07 Spec:RH Fitment:Matches · configuration
55139-32010 COVER, DASH PANEL HOLE 1
Note:ZRE143..CVFC;NDE140,ZRE141,142..GCC,IDN,IND,MA,PHL,TAIW,TH,VN Production:2010-07 – 2014-07 Spec:LH Fitment:Matches · configuration
55210-02321 INSULATOR ASSY, DASH PANEL 1
Note:ZRE14#..PHL,VN Production:2011-02 – … Fitment:Matches · configuration
90467-11122 CLIP 6
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Spec:NO.1 Fitment:Matches · configuration
90467-11127 CLIP 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Spec:NO.2 Fitment:Matches · configuration
55214-02081 PAD, DASH PANEL INSULATOR, NO.2 1
Note:ZRE14#..PHL,VN Production:2011-12 – … Replacements:55214-12100 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
55214-12100 PAD, DASH PANEL INSULATOR, NO.2 1
Note:ZRE14#..PHL,VN Production:2011-12 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
55239-48020 PLATE, DASH PANEL INSULATOR, NO.3 1
Note:ZRE141,142..LHD;ZRE143..LHD..CVFC Production:2010-07 – … Fitment:Matches · configuration
55215-02080 PAD, DASH PANEL INSULATOR, NO.3 1
Note:ZRE14#..PHL,VN Production:2011-12 – … Replacements:55215-12130 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
55215-12130 PAD, DASH PANEL INSULATOR, NO.3 1
Note:ZRE14#..PHL,VN Production:2011-12 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
55216-02030 PAD, DASH PANEL INSULATOR, NO.4 1
Note:ZRE14#..LHD Production:2011-12 – … Replacements:55216-12030 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
55216-12030 PAD, DASH PANEL INSULATOR, NO.4 1
Note:ZRE14#..LHD Production:2011-12 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
55223-02230 INSULATOR, DASH PANEL, OUTER 1
Note:ZRE141,142..PHL,VN;ZRE143..LHD..CVFC..20V Production:2010-08 – … Fitment:Matches · configuration
55257-32010 COVER, DASH PANEL OPENING 2
Note:ZRE143..CVFC;CE140,NDE140,NZE140,ZRE141,142 Production:2010-07 – 2014-07 Fitment:Matches · configuration
53711-02100 APRON, FRONT FENDER, FRONT RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53717-12060 PLATE, FENDER APRON 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53803-02030 EXTENSION, FRONT FENDER, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53743-12050 REINFORCEMENT, FRONT FENDER APRON, FRONT RH 1
Note:ZRE143..CVFC;ZRE142..HTWCF;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20DSA,D,E,G,GLI,N Production:2010-07 – … Fitment:Matches · configuration
53731-12160 MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G) Production:2010-07 – … Fitment:Matches · configuration
53737-02090 PLATE, FRONT APRON TO COWL SIDE MEMBER, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53738-02070 PLATE, FRONT APRON TO COWL SIDE MEMBER, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53705-02040 MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
90467-08186-C0 CLIP 4
Note:ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142 Production:2010-07 – 2014-07 Spec:BLACK Fitment:Matches · configuration
55137-02070 BRACE, DASH TO FRAME, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:55137-12060 (fitment: unknown) Fitment:Matches · configuration
55138-02060 BRACE, DASH TO FRAME, LH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:55138-12030 (fitment: unknown) Fitment:Matches · configuration
53706-02040 MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
52141-02120 STAY, FRONT BUMPER, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
52142-02110 STAY, FRONT BUMPER, LH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53201-02270 SUPPORT SUB-ASSY, RADIATOR 1
Note:ZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NDE140,NZE140,ZRE141,142,ZZE141..IDN,IND,MA,PHL,PKN,TH,VN Production:2010-08 – 2014-07 Replacements:53201-12B50 (fitment: unknown) Fitment:Matches · configuration
53202-02120 SUPPORT SUB-ASSY, RADIATOR, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53203-02130 SUPPORT SUB-ASSY, RADIATOR, LH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53205-02170 SUPPORT SUB-ASSY, RADIATOR, UPPER 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:53205-12291 (fitment: unknown) Fitment:Matches · configuration
53208-02120 BRACE, HOOD LOCK SUPPORT 1
Note:ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142 Production:2010-07 – 2014-07 Replacements:53208-12540 (fitment: unknown) Fitment:Matches · configuration
53273-02160 BRACKET, FRONT BUMPER ARM MOUNTING, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
53274-02140 BRACKET, FRONT BUMPER ARM MOUNTING, LH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
57104-02170 MEMBER SUB-ASSY, FRONT CROSS 1
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – … Replacements:57104-12291 (fitment: unknown) Fitment:Matches · configuration
57165-12070 REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
51461-02030 BRACKET, RADIATOR STAY 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:51461-12020 (fitment: unknown) Spec:RH Fitment:Matches · configuration
51462-02030 BRACKET, RADIATOR STAY 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:51462-12020 (fitment: unknown) Spec:LH Fitment:Matches · configuration
57166-12020 REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
57167-02100 GUSSET, FRONT CROSSMEMBER SIDE, RH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:57167-12130 (fitment: unknown) Fitment:Matches · configuration
57168-02100 GUSSET, FRONT CROSSMEMBER SIDE, LH 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:57168-12130 (fitment: unknown) Fitment:Matches · configuration
57218-12010 GUSSET, FRONT SIDE MEMBER, NO.1 1
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – 2013-02 Fitment:Matches · configuration
57219-12010 GUSSET, FRONT SIDE MEMBER, NO.2 1
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – … Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 53293C —
— Part does not apply to this vehicle configuration. 53294C —
90467-05145 standard —
Fitment:Matches · configuration
91515-80818 standard —
Fitment:Matches · configuration
94151-80840 standard —
Fitment:Matches · configuration
90178-T0055 standard —
Replacements:94151-80840 (fitment: unknown) Fitment:Matches · configuration
90467-10208 standard —
Fitment:Matches · configuration
90541-15022 standard —
Fitment:Matches · configuration
61715-48011 standard —
Fitment:Matches · configuration
90950-06124 standard —
Fitment:Matches · configuration
90950-T6002 standard —
Replacements:90950-06124 (fitment: unknown) Fitment:Matches · configuration
90109-06328 standard —
Fitment:Matches · configuration
90109-T0028 standard —
Replacements:90109-06328 (fitment: unknown) Fitment:Matches · configuration
90109-06380 standard —
Fitment:Matches · configuration
91653-A0614 standard —
Fitment:Matches · configuration
90119-06801 standard —
Fitment:Matches · configuration
90119-T0073 standard —
Replacements:90119-06801 (fitment: unknown) Fitment:Matches · configuration
90119-T0382 standard —
Replacements:91653-A0614 (fitment: unknown) Fitment:Matches · configuration
90105-T0208 standard —
Replacements:91515-80818 (fitment: unknown) Fitment:Matches · configuration

Diagram

69 parts

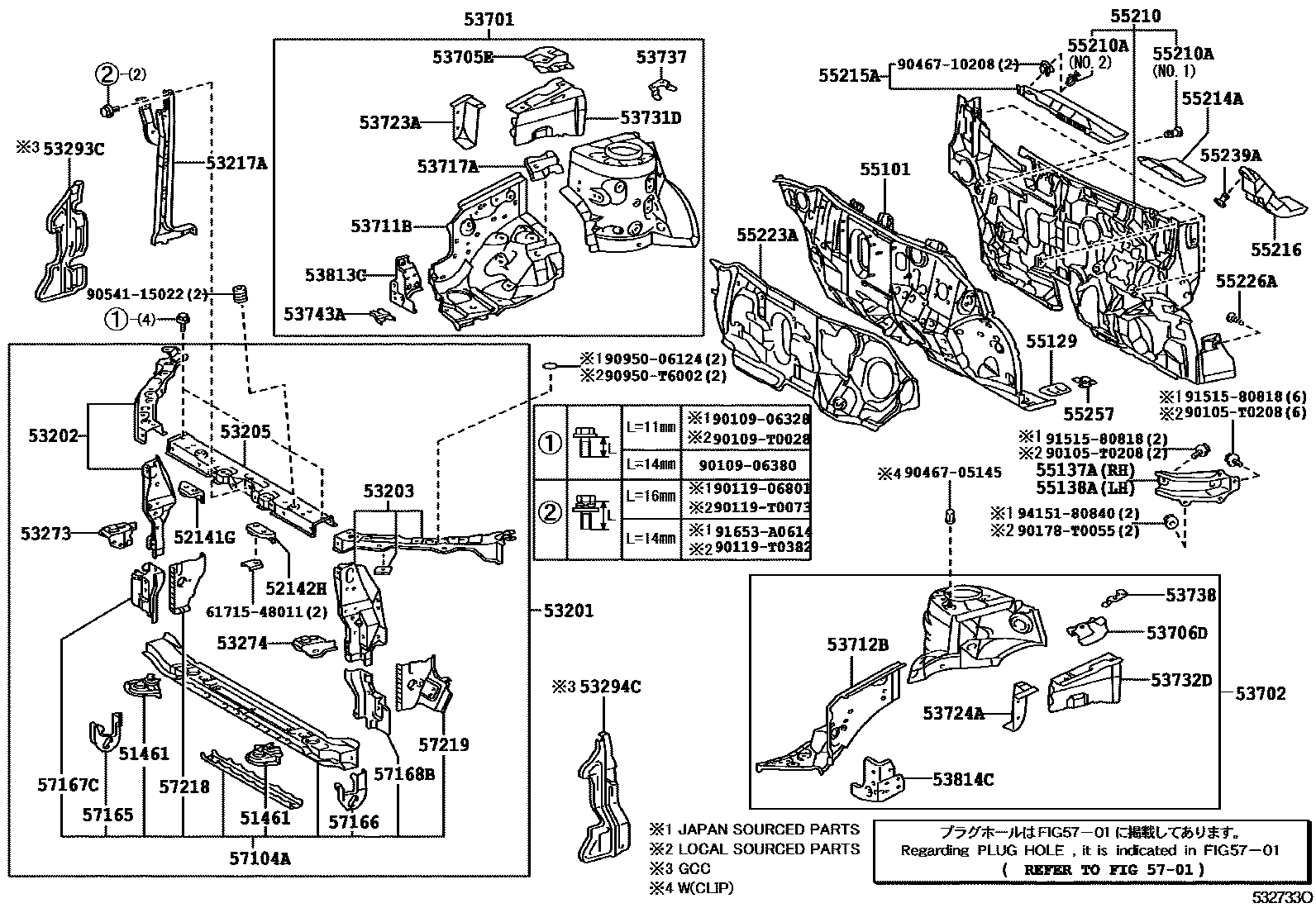

Toyota Corolla-Altis 2013 — Front Fender Apron & Dash Panel
