Toyota Corolla-Altis 2013 — Transaxle Assy(CVT)
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90311-35055 | SEAL, TYPE T OIL, NO.1(FOR CVT) | 1 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) Production:2010-07 – … Replacements:90311-35069 (fitment: unknown) Fitment:Matches · configuration | |||
| 90311-45027 | SEAL, TYPE T OIL(FOR CVT OIL PUMP) | 1 | |
Note:ZRE143;ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) Production:2011-12 – … Fitment:Matches · configuration | |||
| 90311-35068 | SEAL, TYPE T OIL, NO.2(FOR CVT) | 1 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) Production:2011-03 – … Fitment:Matches · configuration | |||
| 90119-T0225 | BOLT(FOR TRANSAXLE & ENGINE SETTING) | 7 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) Production:2012-04 – 2013-10 Replacements:91612-61045 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 91612-61045 | BOLT(FOR TRANSAXLE & ENGINE SETTING) | 7 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) Production:2012-04 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 90105-08071 | BOLT(FOR TRANSAXLE HOUSING & CASE SET) | 4 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) Production:2010-07 – … Spec:NO.1 Fitment:Matches · configuration | |||
| 91551-10830 | BOLT(FOR TRANSAXLE HOUSING & CASE SET) | 18 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE142..CVFC..(IDN,IND,MA,TAIW,VN) Production:2010-07 – … Spec:NO.2 Fitment:Matches · configuration | |||
| 91551-80650 | standard | — | |
Fitment:Matches · configuration | |||
| 91551-80645 | standard | — | |
Fitment:Matches · configuration | |||

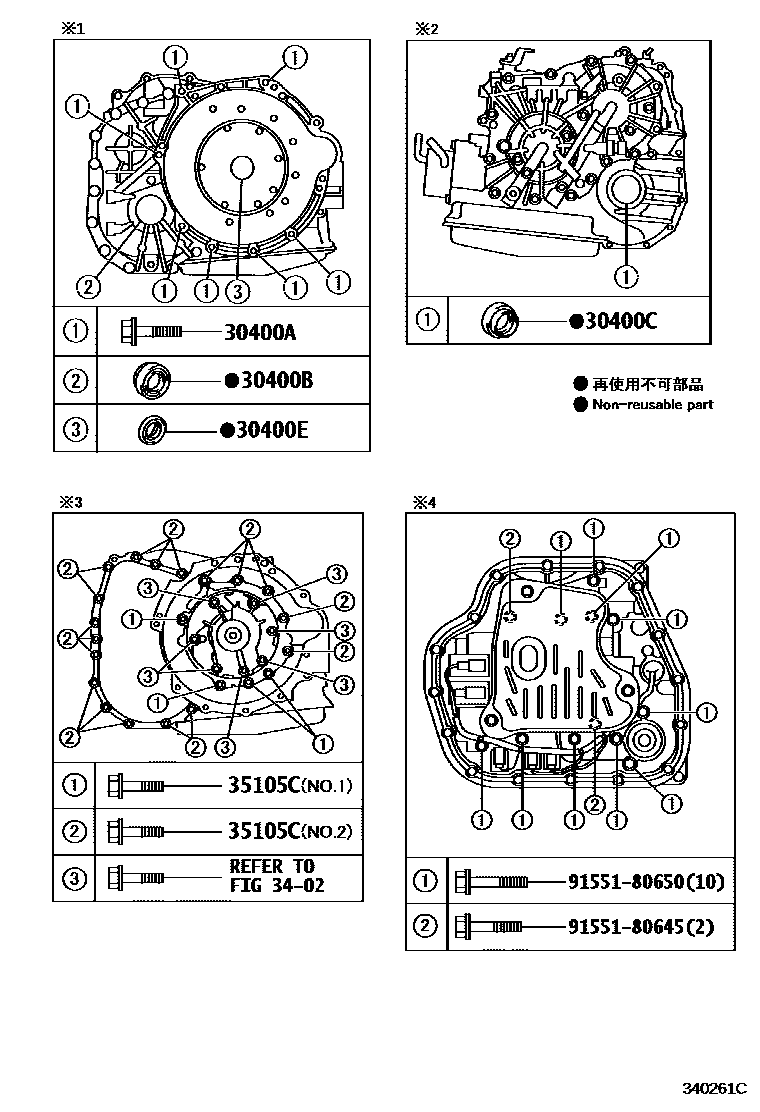

Diagram
9 parts
