Toyota Corolla-Altis 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 85927A | — |
| 90987-T2002 | RELAY, HEADLAMP | 1 | |
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141,ZZE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,LIMO,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – … Replacements:90987-02025 (fitment: unknown) Fitment:Matches · configuration | |||
| 90987-T2002 | RELAY, HEADLAMP DIMMER | 1 | |
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;CE140,ZRE141,142..RHD..(5F,6F,CVFC)..(16J,18E,20D,20DSA)..(DSL,HTWC);NDE140,NZE140,ZRE141,143,ZZE141..(16E,16G,16V,20G,20V,D,E,G,GLI,LIMO,N,XLI)..(IDN,IND,MA,PHL,PKN,TH,VN) Production:2012-07 – … Replacements:90987-02025 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85934 | — |
| 90982-09020 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration | |||
| 90982-09021 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:10A,MINI FUSE,RED Fitment:Matches · configuration | |||
| 90982-09022 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration | |||
| 90982-09024 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:25A,MINI FUSE Fitment:Matches · configuration | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:30A,MINI FUSE,GRN Fitment:Matches · configuration | |||
| 90982-08295 | FUSIBLE LINK | 1 | |
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) Production:2010-07 – … Spec:30A,FEMALE,PNK,58V Fitment:Matches · configuration | |||
| 90982-08295 | FUSIBLE LINK | 1 | |
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) Production:2010-07 – … Fitment:Matches · configuration | |||
| 82824-20140 | PIN, SHORT | 1 | |
Note:ZRE141,142..LHD..(16E,16G,18G) Production:2013-01 – 2013-04 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85927B | — |
| 90987-02027 | RELAY, COOLING FAN | 1 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 90987-T2001 | RELAY, COOLING FAN | 1 | |
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) Production:2010-07 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 82663-12100 | COVER, RELAY BLOCK, LOWER, NO.2 | 1 | |
Note:ZRE141,142..LHD..(16E,16G,18G) Production:2013-01 – 2013-04 Fitment:Matches · configuration | |||
| 82741-12110 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:ZRE141,142..LHD..(16E,16G,18G) Production:2013-01 – 2013-04 Fitment:Matches · configuration | |||
| 82641-47020 | RELAY, INTEGRATION NO.2 | 1 | |
Note:ZRE141,142..LHD..(16E,16G,18G) Production:2013-01 – 2013-04 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 82620A | — |
| 82631-12070 | HOLDER ASSY, FUSE | 1 | |
Note:ZRE141,142..LHD..(16E,16G,18G) Production:2013-01 – 2013-04 Spec:NO.1 Fitment:Matches · configuration | |||
| 82631-12080 | HOLDER ASSY, FUSE | 1 | |
Note:ZRE141,142..LHD..(16E,16G,18G) Production:2013-01 – 2013-04 Spec:NO.2 Fitment:Matches · configuration | |||
| 82662-12370 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:ZRE142..HTWCF;ZRE142..GCC,IDN,MA,VN;ZRE141..16E,16G,16V,D,N,XLI;ZRE141,143..(6F,CVFC)..(16J,20G)..TH Production:2010-07 – … Fitment:Matches · configuration | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 82661-12310 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:ZRE141,142..LHD..(16E,16G,18G) Production:2013-01 – 2013-04 Fitment:Matches · configuration | |||
| 91671-80616 | standard | — | |
Fitment:Matches · configuration | |||

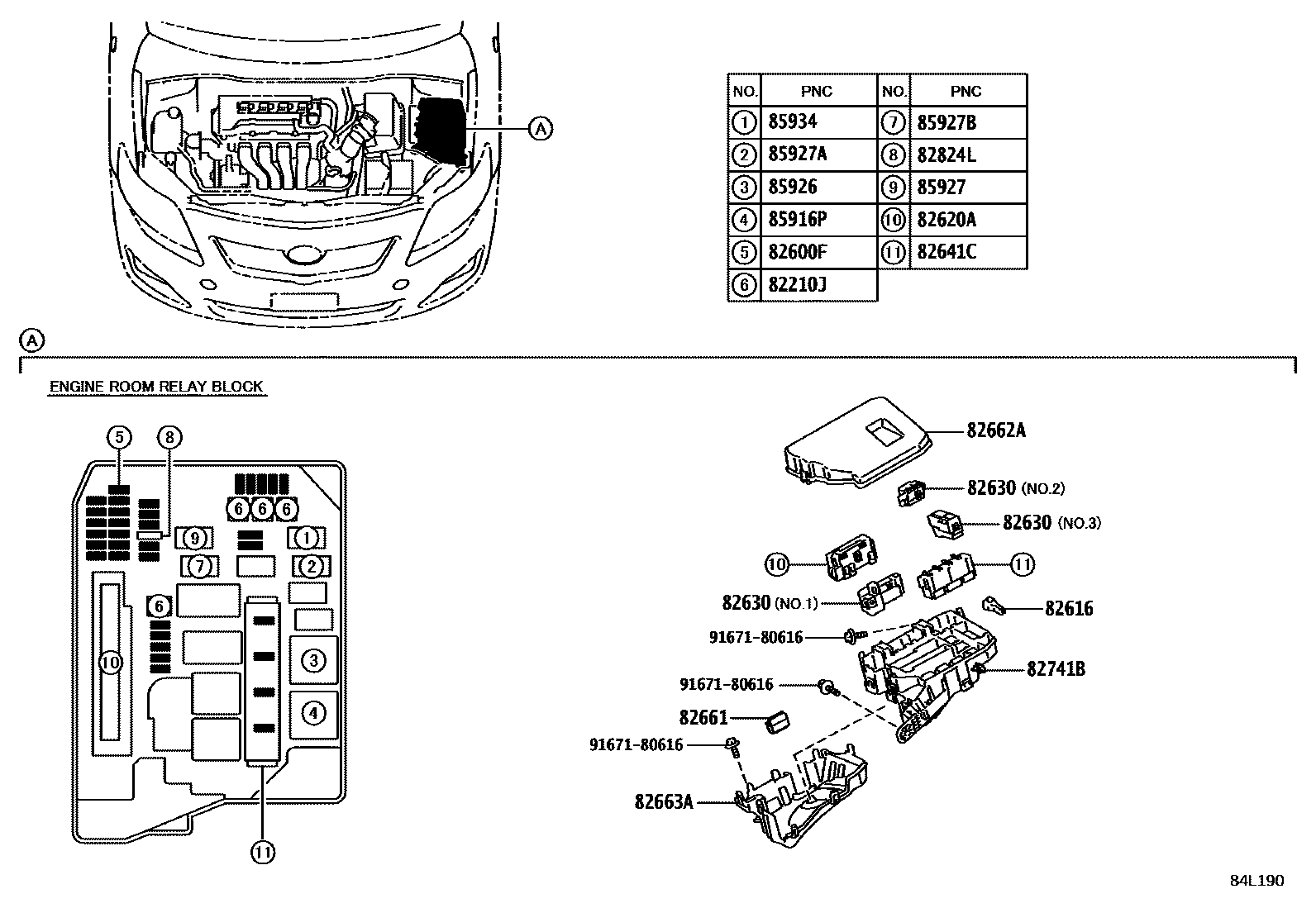

Diagram
22 parts
