Toyota Avensis 2009 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84770A | — |
| 84152-02040 | SWITCH, HEADLAMP LEVELING | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:84152-12070 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84470 | — |
| 84332-05060 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 | |||
| 84872-05020 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED) | |||
| 84390-05010 | SWITCH ASSY, ELECTRIC PARKING BRAKE | 1 | |
Note:ADT27#,ZRT27#..LHD..(E,G,N,V) Production:2008-11 – 2011-11 | |||
| 84988-05020 | SWITCH, VSC OFF | 1 | |
Note:ZRT271;ADT270..RHD;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC);ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11 Replacements:84988-05021 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84155 | — |
| 84150-02040 | SWITCH ASSY, HEADLAMP CLEANER | 1 | |
Note:ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11 Replacements:84150-42020 (fitment: unknown) Spec:HEAD LAMP CLEANER-WITH | |||
| — | Part does not apply to this vehicle configuration. | 84751 | — |
| 84841-05020 | SWITCH, FUEL LID OPENER | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:84841-05021 (fitment: unknown) | |||
| 85535-52040 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 | |||
| 85530-0D020 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:85530-0D021 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 89611 | — |
| — | Part does not apply to this vehicle configuration. | 84720J | — |
| 85500-05031 | LIGHTER ASSY, CIGARETTE | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 | |||
| 85510-05020 | SOCKET & RETAINER ASSY, CIGARLIGHTER | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 | |||
| — | Part does not apply to this vehicle configuration. | 85500B | — |
| 90119-W0156 | standard | — | |
Replacements:90119-06952 (fitment: unknown) | |||

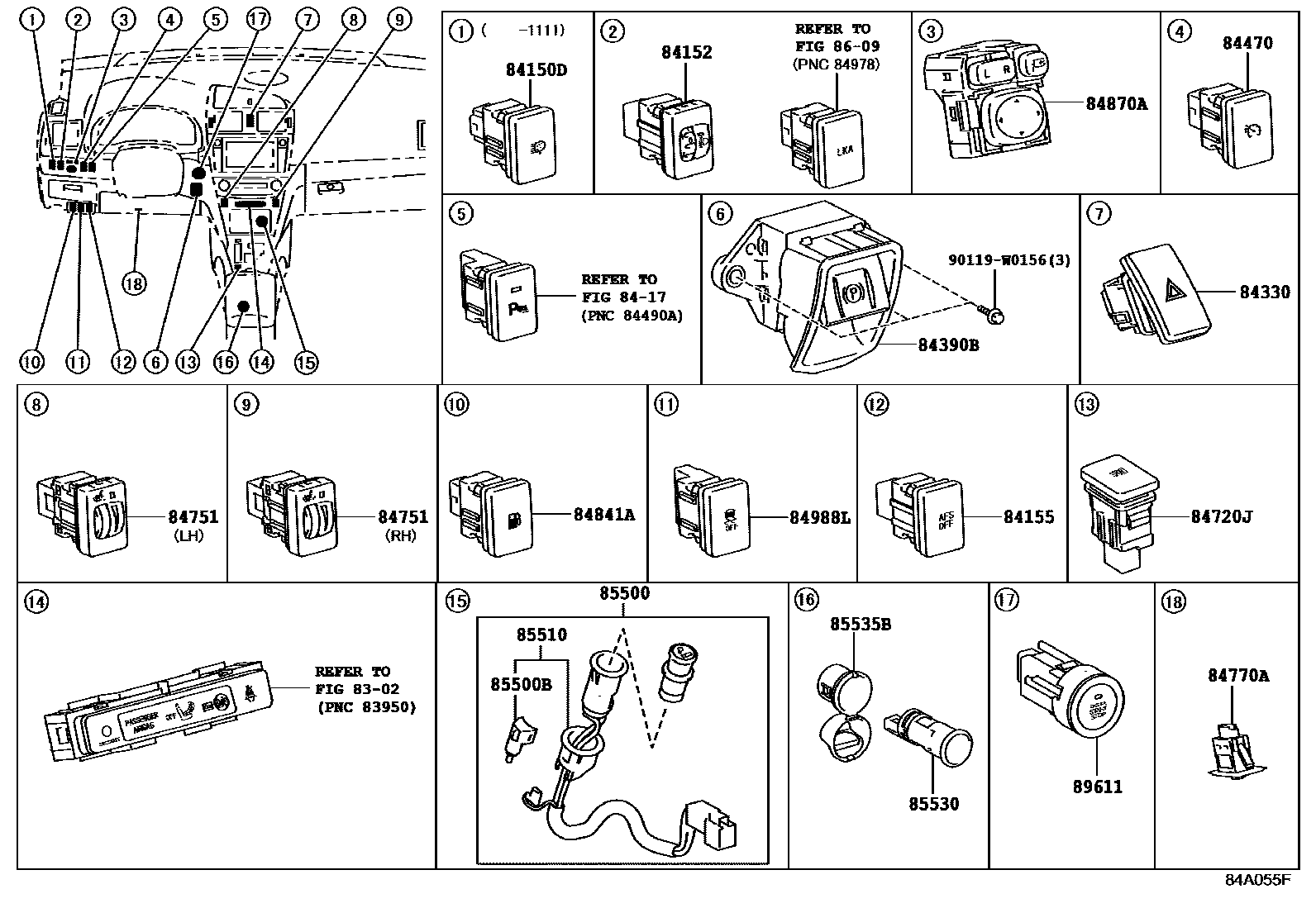

Diagram
12 parts
