Toyota AURIS-HYBRID-UKP 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84870-02090-C0 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S Production:2015-05 – … Spec:BLACK | |||
| 84872-02140 | SWITCH ASSY, OUTER MIRROR, NO.2 | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..D,N,S Production:2015-05 – … | |||
| 89611-02111 | SWITCH, PUSH START | 1 | |
Note:ZWE186 Production:2015-07 – 2016-06 | |||
| 84152-02080 | SWITCH, HEADLAMP LEVELING | 1 | |
Note:ZRE185;NDE180,NRE18#,ZWE186..D,N,S Production:2015-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 84490D | — |
| 84988-06071 | SWITCH, VSC OFF | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 84718-02060 | SWITCH, TRANSMISSION SHIFT MAIN | 1 | |
Note:ZWE186..LHD Production:2015-05 – … | |||
| 85535-12060 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … | |||
| 85530-0D020 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – 2016-10 Replacements:85530-0D021 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84751 | — |
| — | Part does not apply to this vehicle configuration. | 84751F | — |
| 85535-12050-C0 | COVER, POWER OUTLET SOCKET, NO.2 | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186..D,N,S Production:2015-05 – … Spec:BLACK,TRIM2# | |||
| 85530-0D020 | SOCKET ASSY, POWER OUTLET, NO.2 | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – 2016-10 Replacements:85530-0D021 (fitment: unknown) | |||
| 84970-02090 | SWITCH ASSY, COMBINATION | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| 84770-02010 | SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..D,N,S Production:2015-05 – … Spec:PRE-COLLISION SYSTEM-WITH | |||
| 84332-02300 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … | |||
| 83910-02200 | CLOCK ASSY | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … | |||

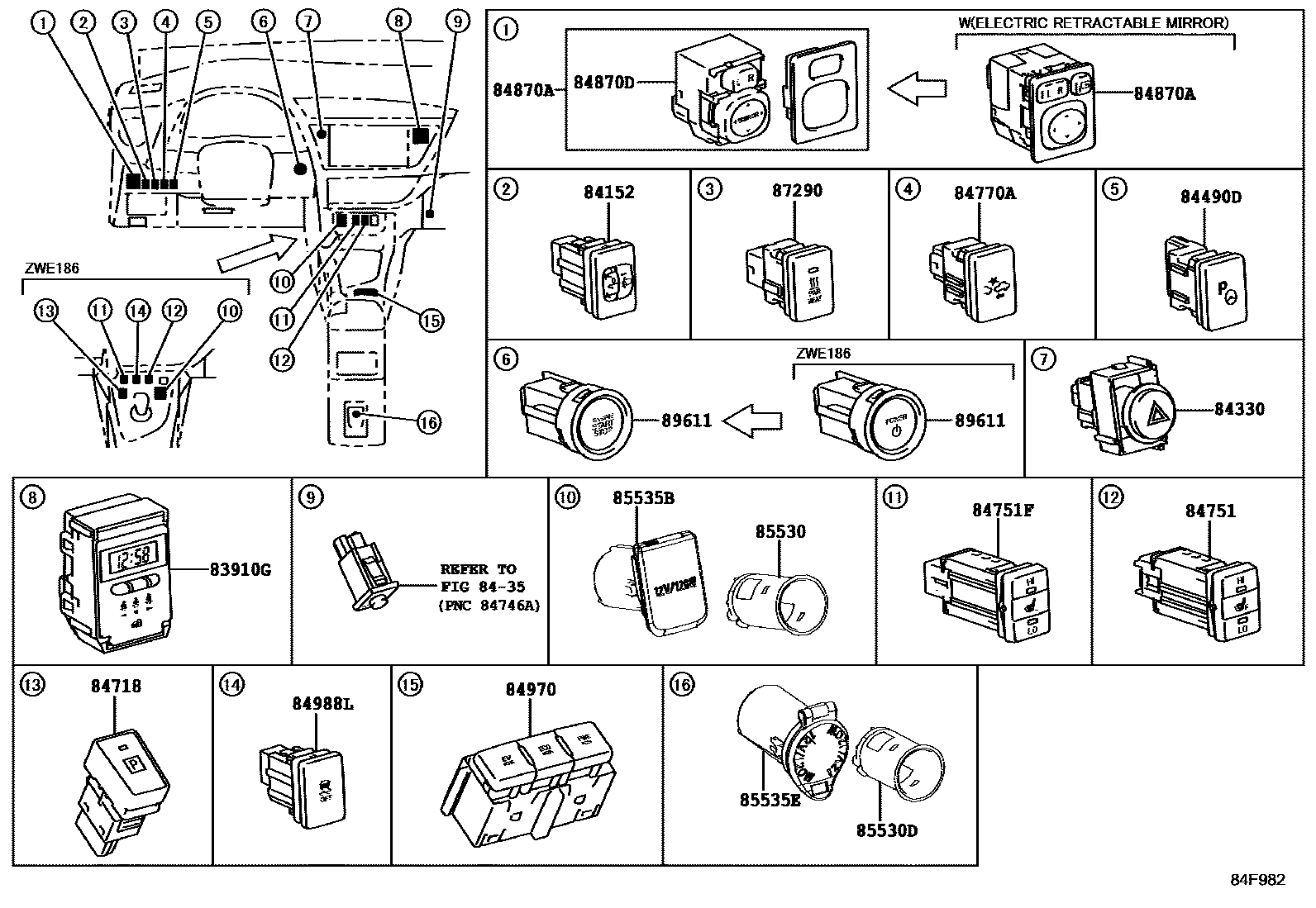

Diagram
14 parts
