Toyota YARIS-HYBRID-FRP 2017 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85530-0D021 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:KSP130,NHP130,NLP130,NSP130 Production:2016-07 – 2017-03 | |||
| 85535-52040 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| 84870-0F010 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| 84872-02050 | SWITCH ASSY, OUTER MIRROR, NO.2 | 1 | |
Note:NHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 Replacements:84872-52030 (fitment: unknown) | |||
| 84988-0D011 | SWITCH, VSC OFF | 1 | |
Note:KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2015-01 – 2017-03 | |||
| 84152-0D090 | SWITCH, HEADLAMP LEVELING | 1 | |
Note:KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 89611 | — |
| 83950-0D050 | LAMP ASSY, TELLTALE | 1 | |
Note:KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S) Production:2014-07 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 85500 | — |
| — | Part does not apply to this vehicle configuration. | 85515 | — |
| 84720-0D051 | SWITCH ASSY, PATTERN SELECT | 1 | |
Note:NSP130..CVT..N;NSP130..5D..CVT..(G,S) Production:2015-01 – 2017-03 | |||
| — | Part does not apply to this vehicle configuration. | 84720K | — |
| — | Part does not apply to this vehicle configuration. | 84470 | — |
| — | Part does not apply to this vehicle configuration. | 87290F | — |
| — | Part does not apply to this vehicle configuration. | 84153 | — |
| — | Part does not apply to this vehicle configuration. | 84770A | — |

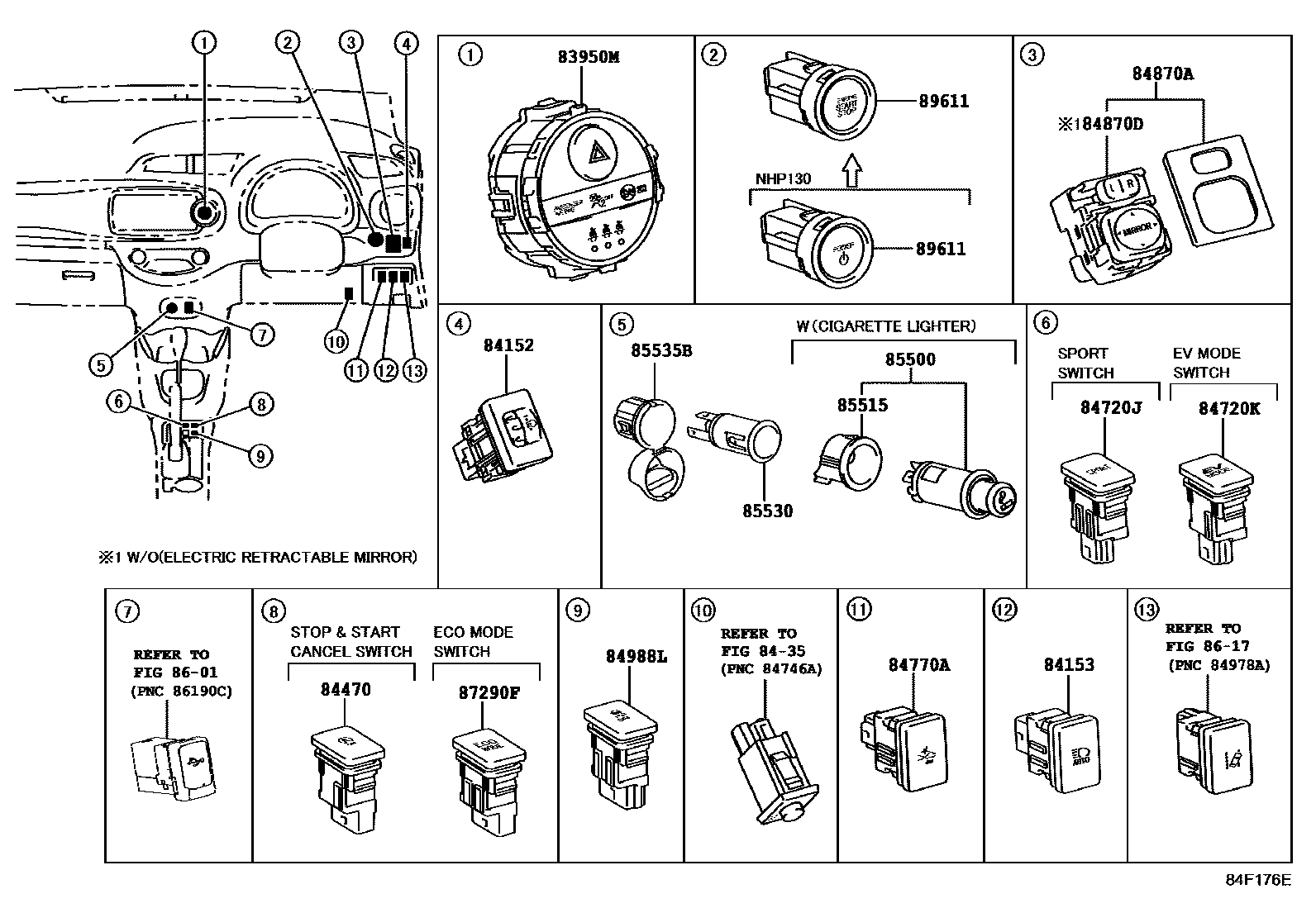

Diagram
8 parts
