Engine / Fuel / Tool Parts Diagrams for Toyota Hilux

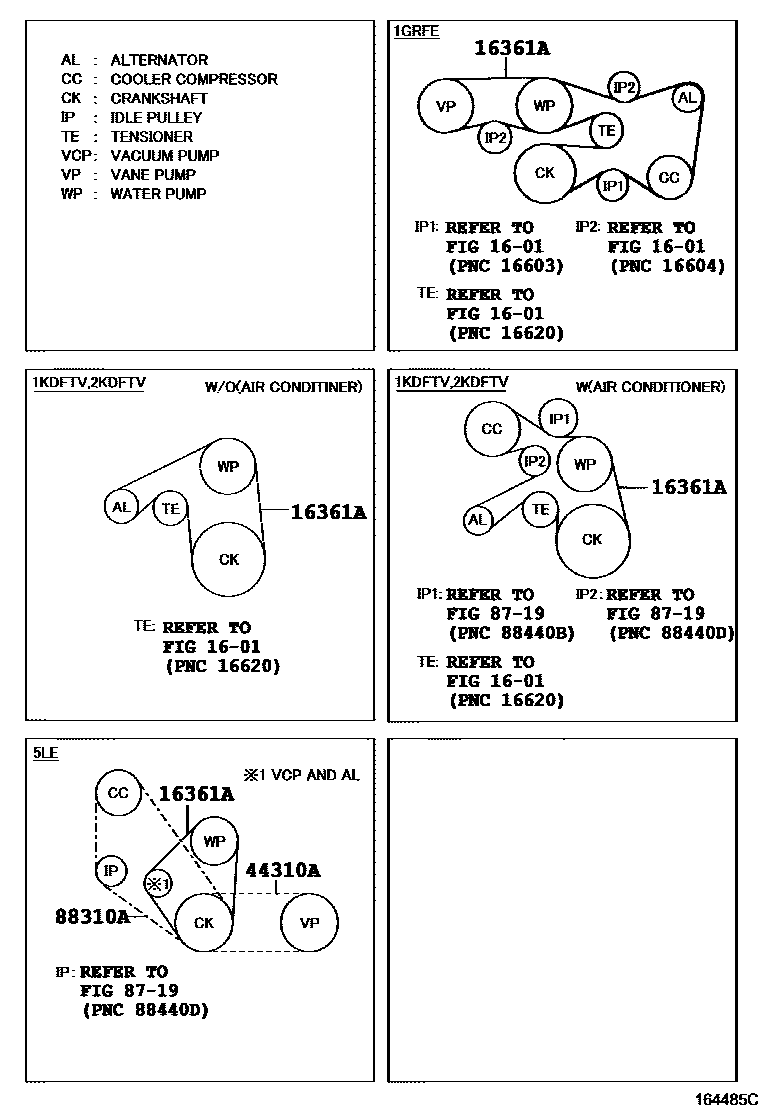

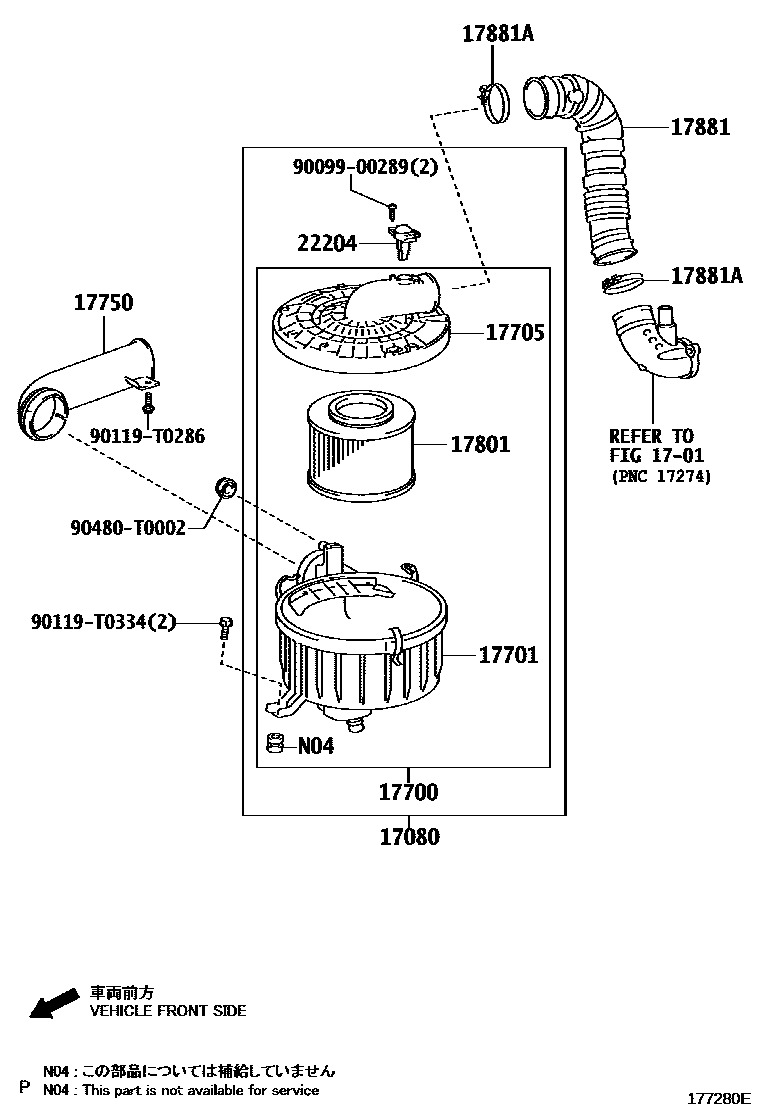

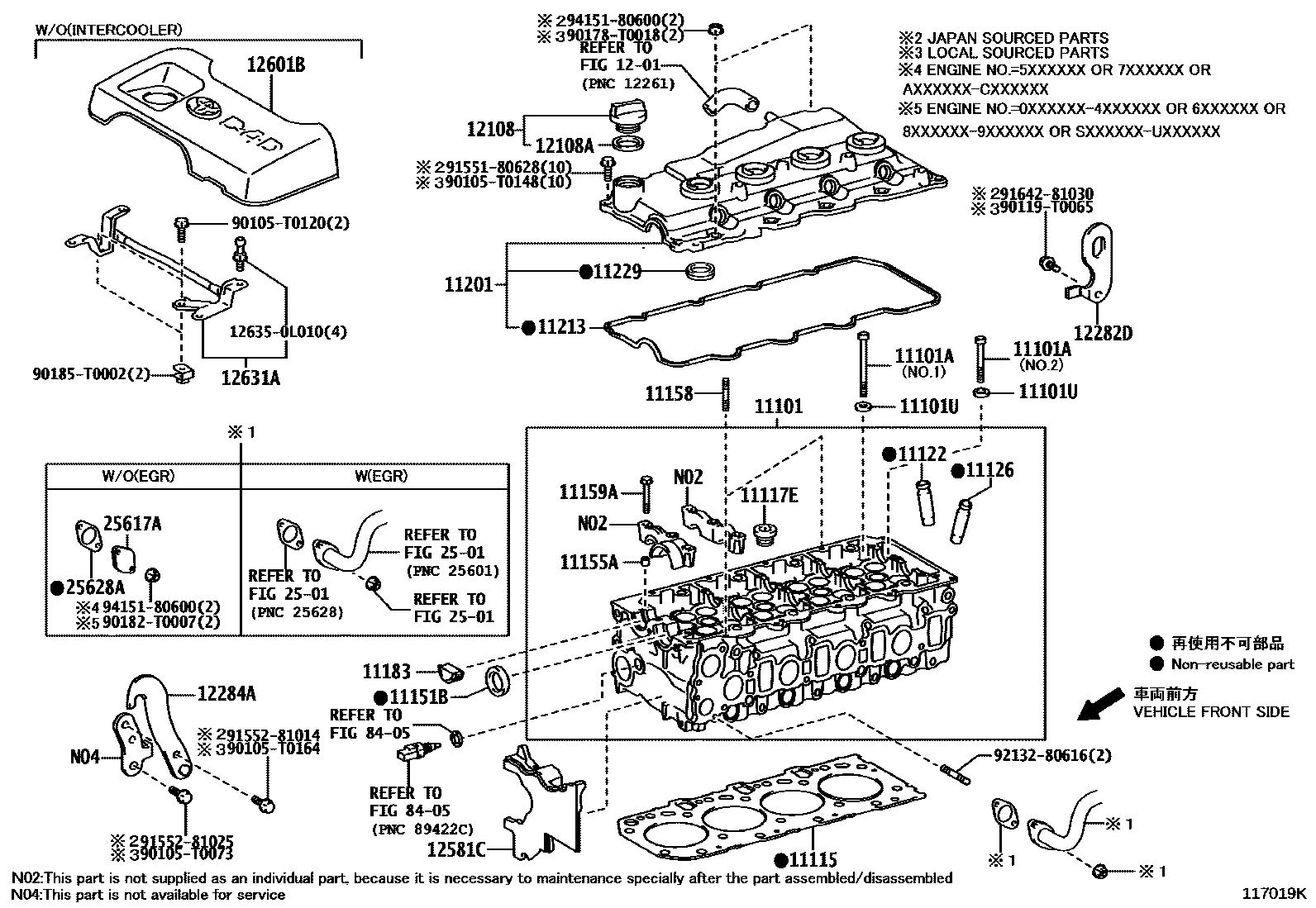

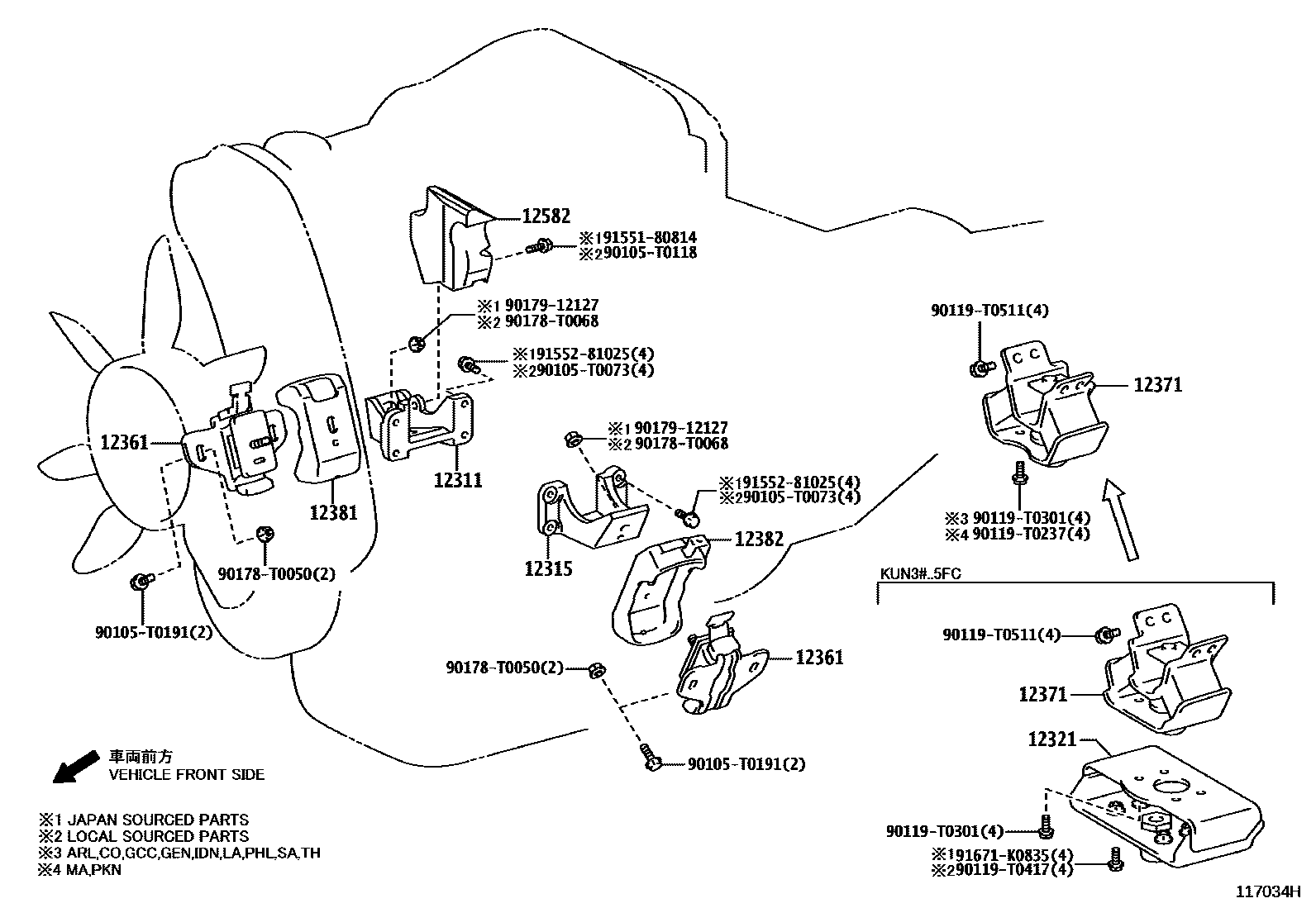

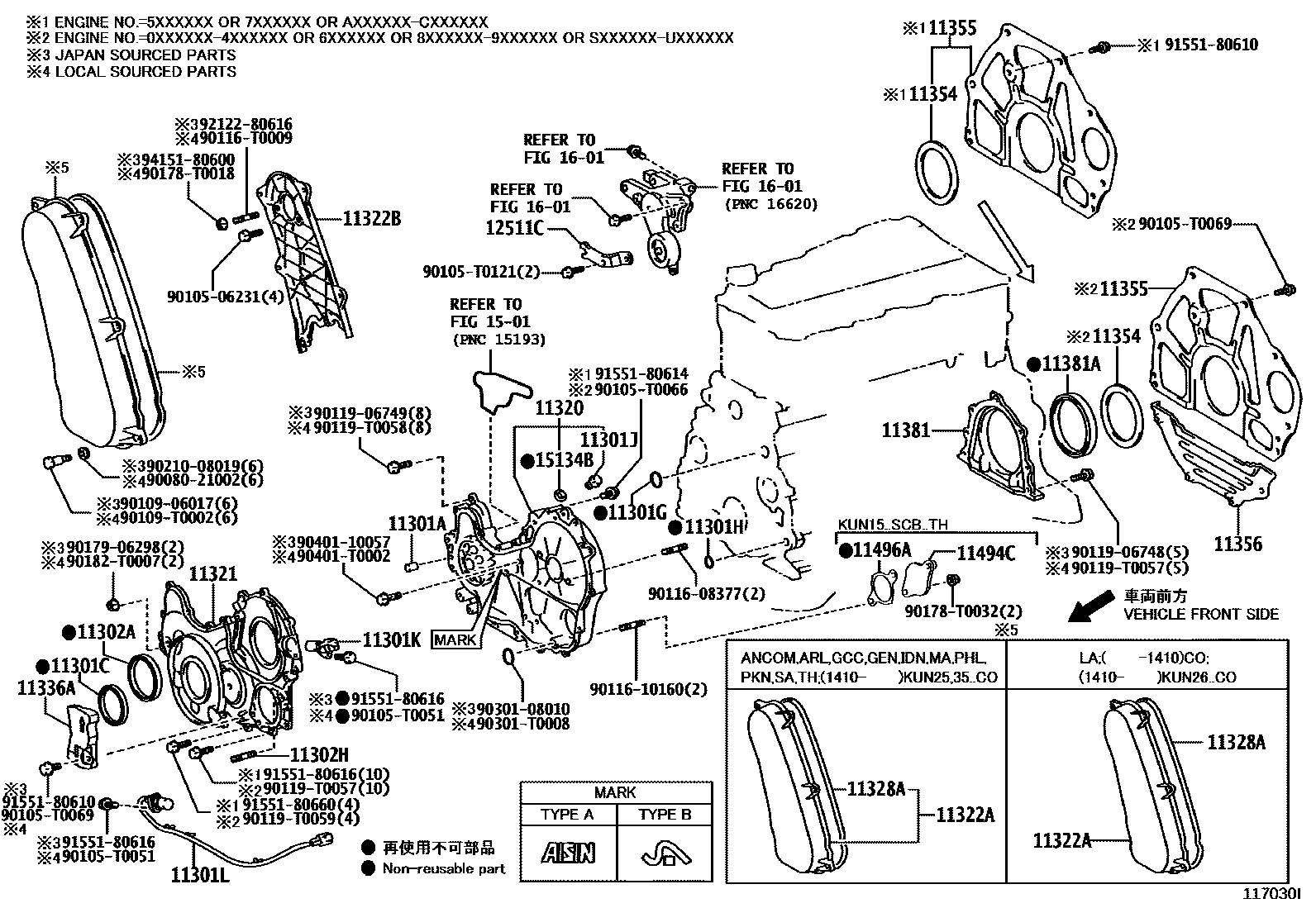

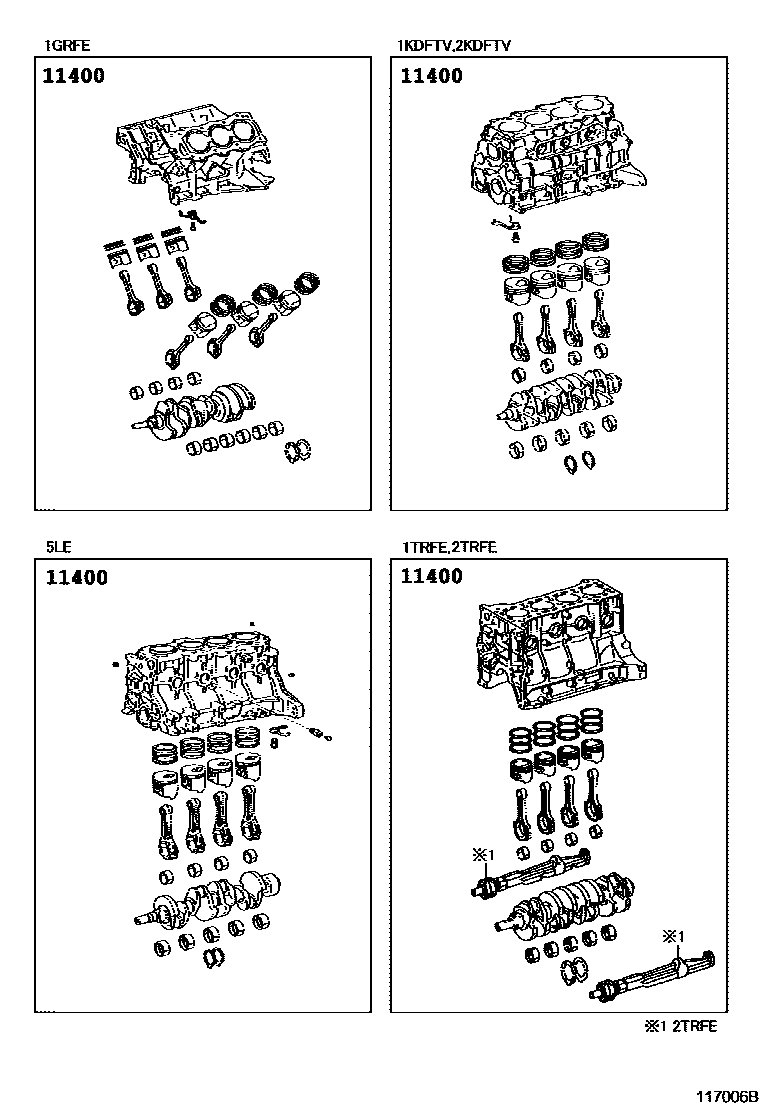

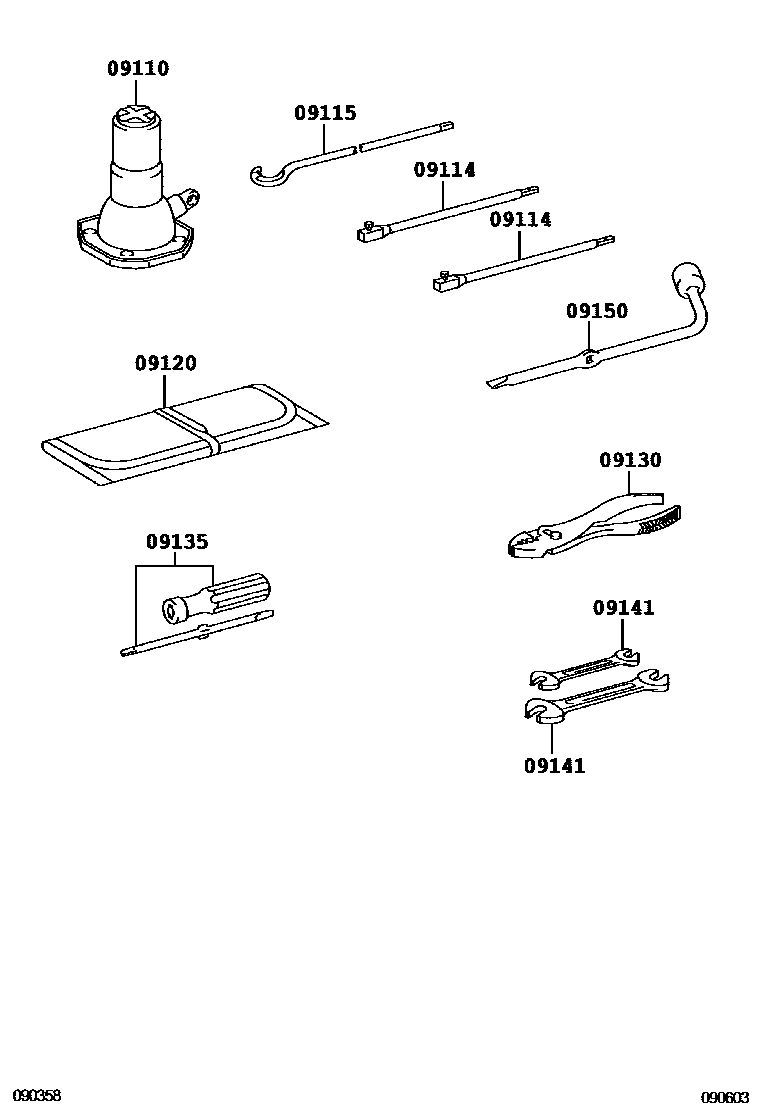

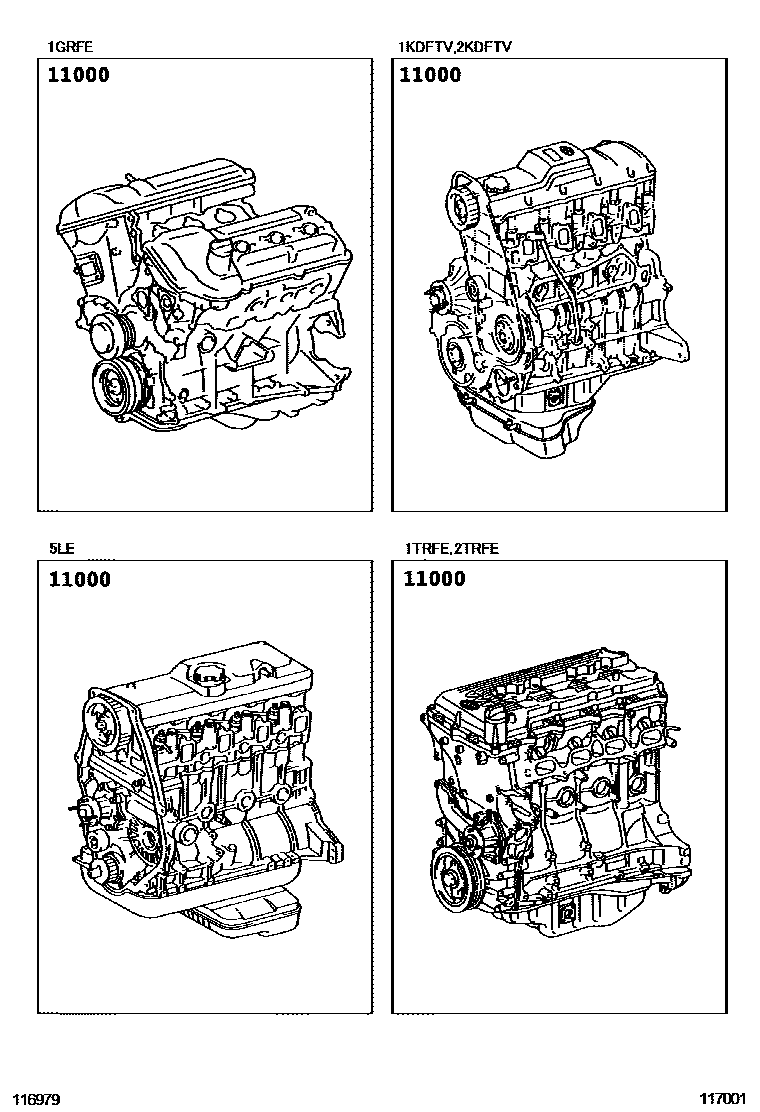

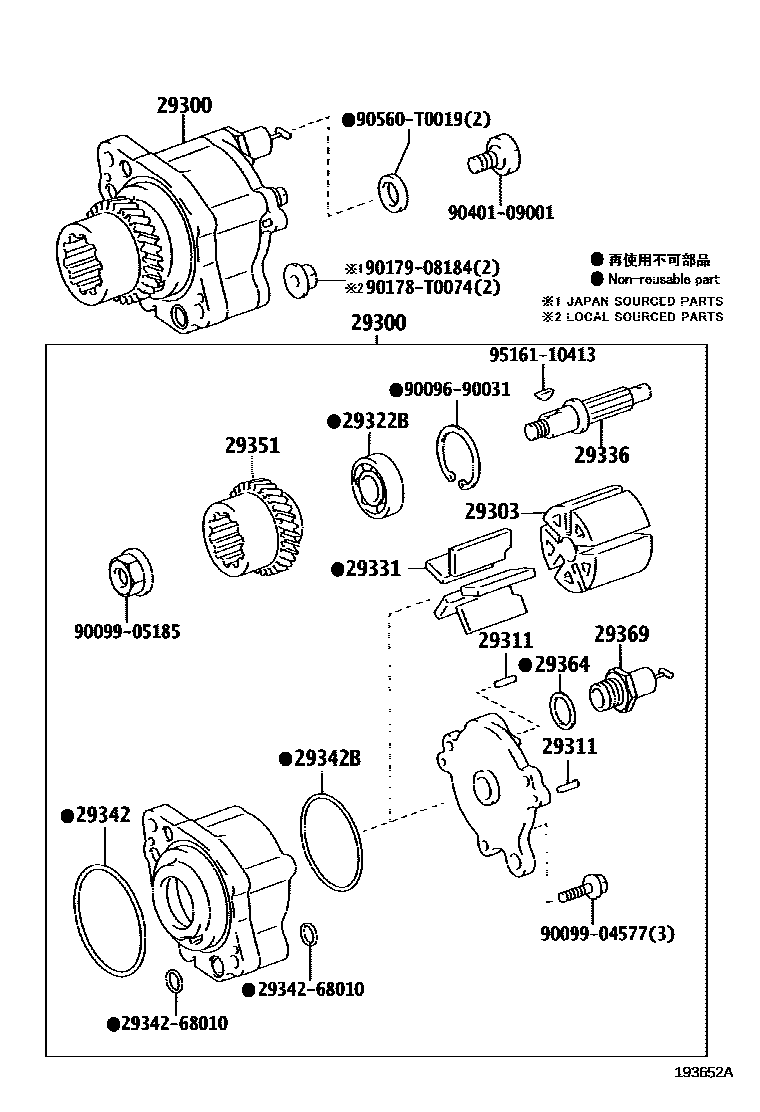

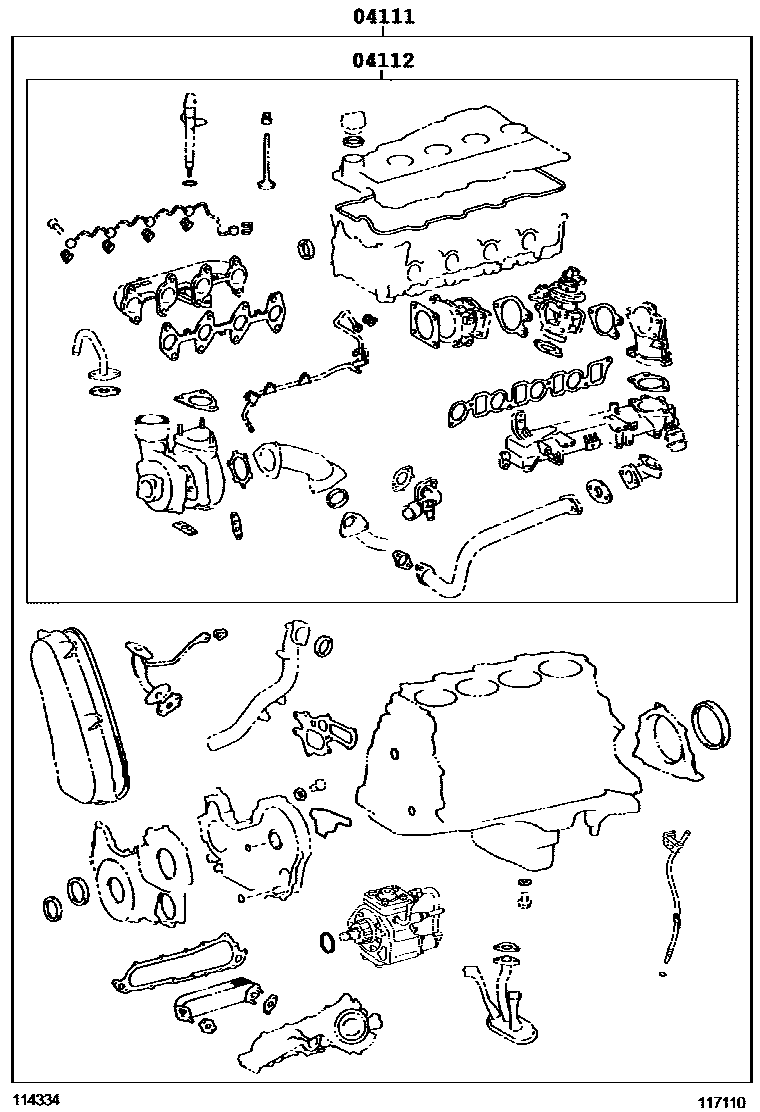

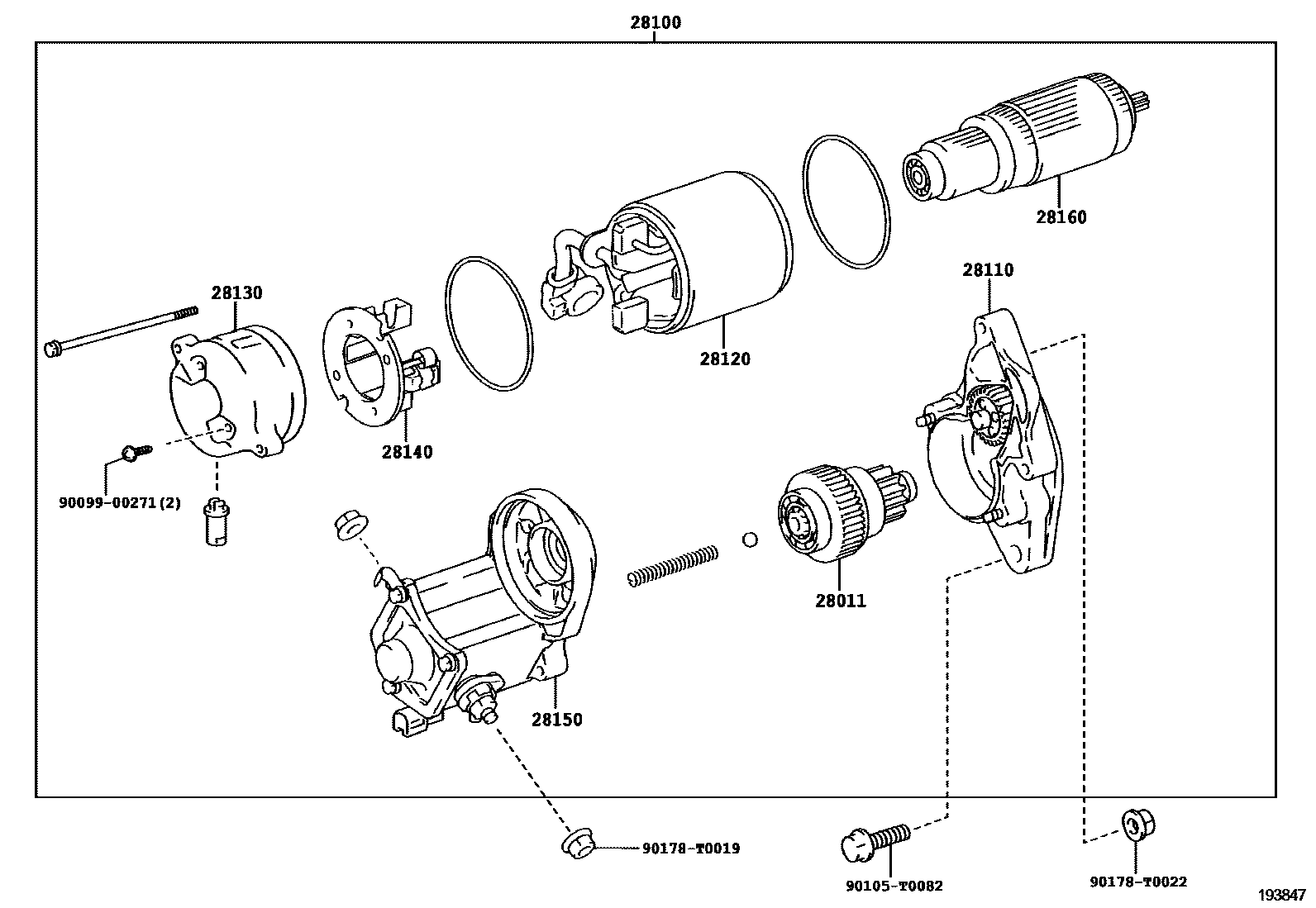

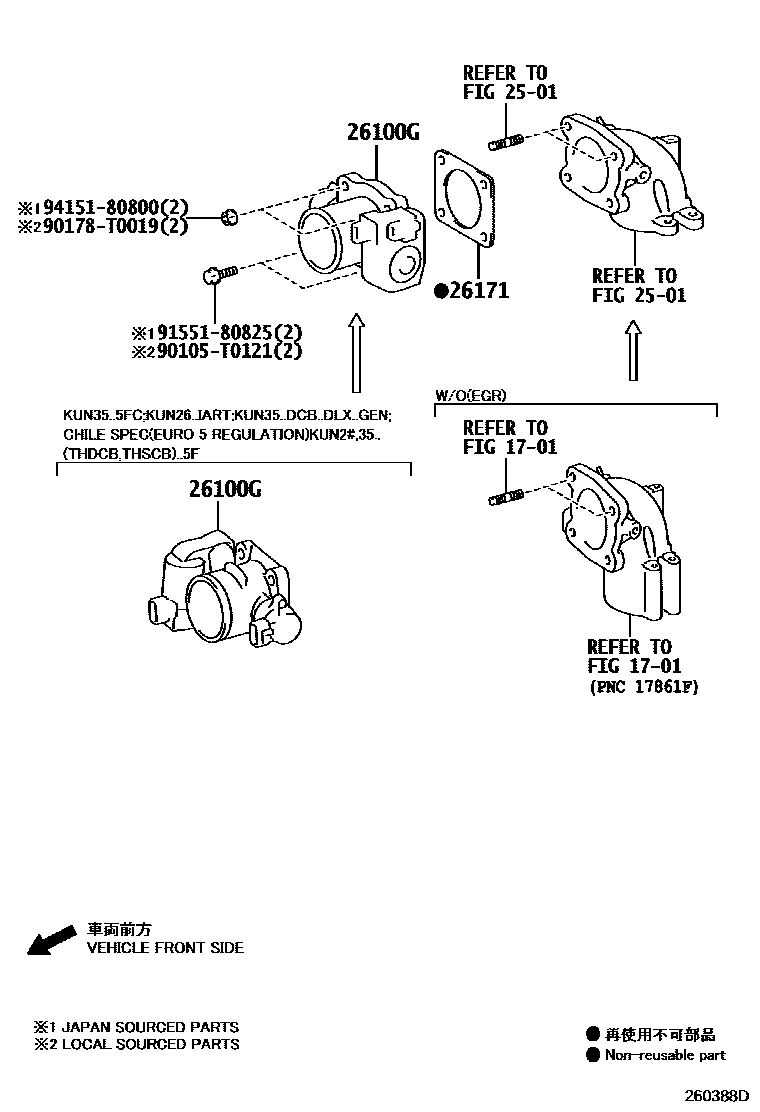

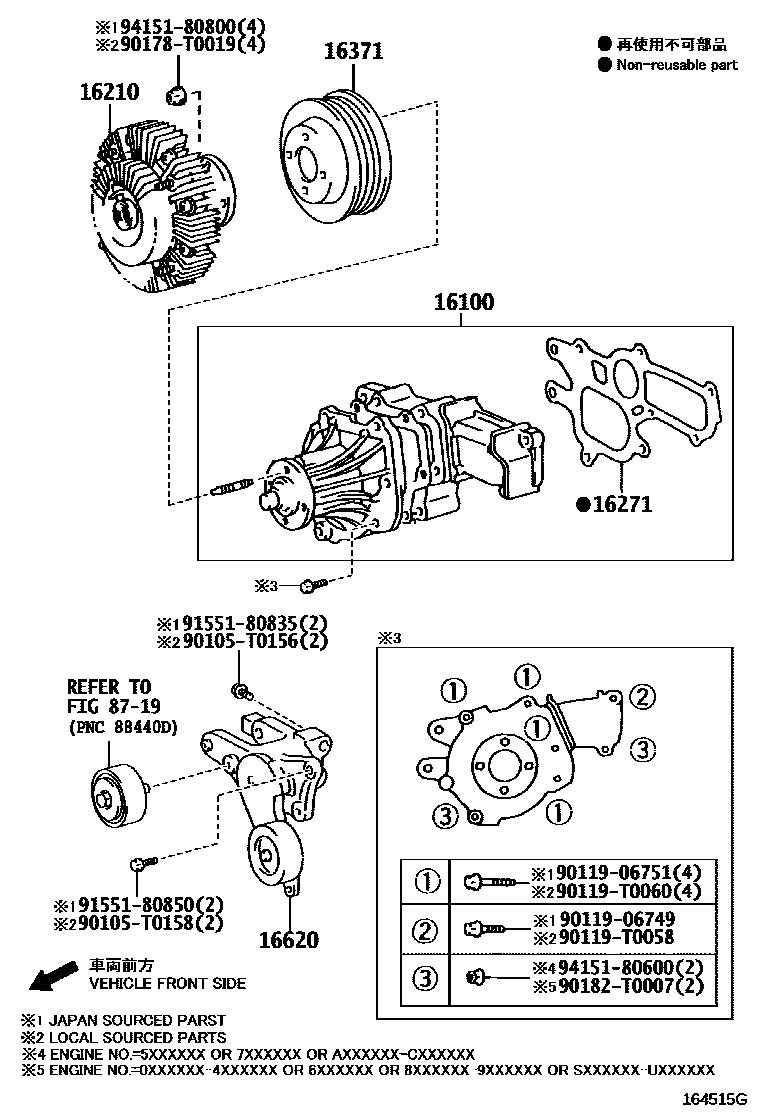

0901 STANDARD TOOL 1101 PARTIAL ENGINE ASSEMBLY 1102 SHORT BLOCK ASSEMBLY 1103 ENGINE OVERHAUL GASKET KIT 1104 CYLINDER HEAD 1105 CYLINDER BLOCK 1106 TIMING GEAR COVER & REAR END PLATE 1107 MOUNTING 1201 VENTILATION HOSE 1301 CRANKSHAFT & PISTON 1302 CAMSHAFT & VALVE 1501 ENGINE OIL PUMP 1502 OIL FILTER 1503 ENGINE OIL COOLER 1601 WATER PUMP 1603 RADIATOR & WATER OUTLET 1605 V-BELT 1701 MANIFOLD 1702 EXHAUST PIPE 1703 AIR CLEANER 1708 VACUUM PIPING 1901 IGNITION COIL & SPARK PLUG / GLOW PLUG 1903 ALTERNATOR 1904 STARTER 1905 VACUUM PUMP 2201 INJECTION NOZZLE 2202 INJECTION PUMP ASSEMBLY 2302 FUEL FILTER 2501 EXHAUST GAS RECIRCULATION SYSTEM 2606 VENTURI
