Open RégionAnnéeModèleCode modèle Détails
USA / Canada 2018 G80 16 B1S4J5G1J
Catalog: GENESIS202602 Model: B1S4J5G1J Model Year: 2018 Engine Number: G6DPJA041928 Transmission Number: VCJLS1751737 Destination: USA Nation: U.S.A Plant: K7 Exterior Color: TITANIUM BLACK Interior Color: SPORTS RRY Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TEMPERATE ZONE Body Type: SEDAN - 4DR 5P Engine Capacity: 3300 CC - LAMBDA 2 Engine Type: DOHC - TCI/GDI Fuel Type: GASOLINE - UNLEADED Transaxle: AUTO - 8 SPEED 2WD Build Date: 2018-03-14 Nation Code: B28 Area: K7 Drive Type: L Weather Type: 3 Order Number: E1803H096B28A Vehicle Factory: 084 Full Specification Code: B28AB1S4J5G1J G91713 Exterior Color Code: T5K Interior Color Code: RSS Engine Mip Code: AP81 Transmission Mip Code: 2DN1 Vin Tag: 1 Model Year Code: 16 Catalog Information: (S4) SEDAN - 4DR 5P,(J5) 3300 CC - LAMBDA 2,(G) DOHC - TCI/GDI,(1) GASOLINE - UNLEADED,(J) AUTO - 8 SPEED 2WD,(L) DRIVE TYPE - LHD,(3) WEATHER - THE TEMPERATE ZONE Region: NA Native Region: HMA

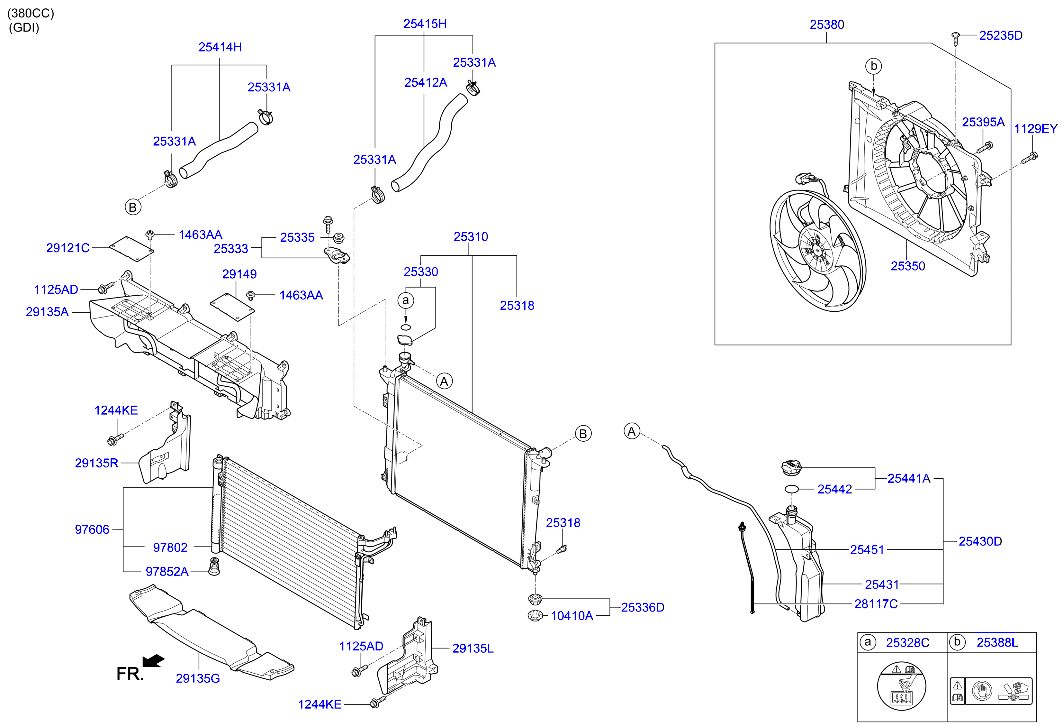

Genesis G80 16 2018 — Engine Cooling System

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
25461C1000 CLIP 2
Production:2015-12-01 – …
1125406206B BOLT 4
Production:2015-11-01 – …
1129306206B BOLT 8
Production:2015-11-01 – …
1140306606K BOLT 1140EZ 2
Production:2016-02-01 – …
1244206207B SCREW - TAPPING 2
Production:2015-11-01 – …
252353K020 SCREW - TAPPING 2
Production:2015-11-01 – …
25310D2000 RADIATOR ASSY 1
Production:2015-11-01 – …
253183K100 PLUG - RADIATOR DRAIN 1
Production:2015-11-01 – …
25328B1000 LABEL - RADIATOR CAP 1
Production:2015-11-01 – …
25330B1000 CAP ASSY - RADIATOR 1
Production:2015-11-01 – …
253312P044 CLAMP - (HOSE) 2
Production:2015-11-01 – …
253312P044 CLAMP - (HOSE) 2
Production:2017-01-01 – …
25333B1000 BRACKET ASSY - RADIATOR MOUNTING, UPPER 2
Production:2015-11-01 – …
253353M000 INSULATOR - RADIATOR MOUNTING, UPPER 2
Production:2015-11-01 – …
25336C1000 INSULATOR - RADIATOR MOUNTING, LOWER 2
Production:2015-12-01 – …
25350D2000 SHROUD - RADIATOR 1
Production:2015-11-01 – …
25380D2000 BLOWER ASSY 1
Production:2015-11-01 – …
25388B1000 LABEL 1
Production:2015-11-01 – …
25395D7000 TAP BOLT 3
Production:2015-11-01 – …
25400B1000 COOLER ASSY - TRANSMISSION OIL 25400 1
Production:2016-02-01 – …
25414D2000 HOSE ASSY - RADIATOR, UPPER 1
Production:2017-01-01 – …
25415D2000 HOSE ASSY - RADIATOR, LOWER 1
Production:2015-11-01 – …
25430D2000 RESERVOIR ASSY - RADIATOR 1
Production:2015-11-01 – …
25431B1001 RESERVOIR ASSY - RADIATOR 1
Production:2015-11-01 – …
25441B1000 CAP - RADIATOR RESERVOIR 1
Production:2015-11-01 – …
254421D100 GASKET - RADIATOR RESERVOIR CAP 1
Production:2015-11-01 – …
25451D2000 HOSE - RADIATOR TO RESERVOIR 1
Production:2015-11-01 – …
25630D2000 VALVE - BY-PASS 26454 1
Production:2015-11-01 – …
25444B1001 GAUGE - LEVEL 1
Production:2015-11-01 – …
29121B1100 COVER - SIDE 1
Production:2015-11-01 – …
29136B1000 GUARD - AIR 1
Production:2015-11-01 – …
29121B1000 COVER 1
Production:2015-11-01 – …
97606B1410 CONDENSER ASSY - COOLER 1
Production:2016-02-01 – …
97690D2000 O-RING 97690A 1
Production:2015-11-01 – …
97802D2000 DESICCANT - RECEIVER DRIER 1
Production:2015-11-01 – …
97803D2000 CAP ASSY - BOTTOM 97803 1
Production:2015-11-01 – …

Schéma

36 pièces
Genesis G80 16 2018 — Engine Cooling System
