Open RégionAnnéeModèleCode modèle Détails
General 2018 L200 TRITON STRADA G EXP MMTH KL3T
Catalog: MMC202408 Color Code: W54A Frame Mask: KJ-L# Model Short: KL3T Modification: 2500DIESEL(4D56)/4WD - U-LINE(W-CAB),5FM/T LHD Options: V81: FUEL TANK CHANGE; URETHANE COVER STEERING WHEEL; CLOCK; 3 POINT RR S/BELT (X2); RR SEAT H/REST; SPECIAL SEAT TRIM; ELR WITH PRETENSIONER; WOOD PRINT PANEL; P/W + AUTO DOOR LOCK; RR WINDOW DEFOGGER; HOOK; PLATED BUMPER; HIGH-MOUNT STOP LAMP; A/C; CAPACITY-UP A/C; AIR FILTER; CAPACITY-UP A/C + A/C, AUTO A/C, COOLER (B); P/W + AUTO DOOR LOCK + WOOD PRINT PANEL; WOOD PRINT PANEL + P/W + AUTO DOOR LOCK; RR WINDOW DEFOGGER + A/C; HOOK + RR BODY GUARD FRAME; HOOK + HIGH-MOUNT STOP LAMP; P/W+AUTO DR LOCK+AUTO DR LOCKING+ANTENNA+4SPEAKER; CAPACITY-UP A/C + A/C, COOLER (B); RR SEAT H/REST + 3 POINT RR S/BELT(X2); PLATED BUMPER + HIGH-MOUNT STOP LAMP; LEA S/WHL+URETHANE S/WHL+STRG CONT SW+AIR BAG; A/C + AIR FILTER; IMMOBILIZER; RR BODY GUARD FRAME; AUTO DOOR LOCKING SYSTEM; AIR BAG (DRIVER + PASSENGER SIDE); OWNER'S GUIDE FOR SPANISH; NUMBERING CHANGE Production: 201501-201905 Production Date: 201802 Trim Code: 58W Year: 2018 Region: OTHER Native Region: M80

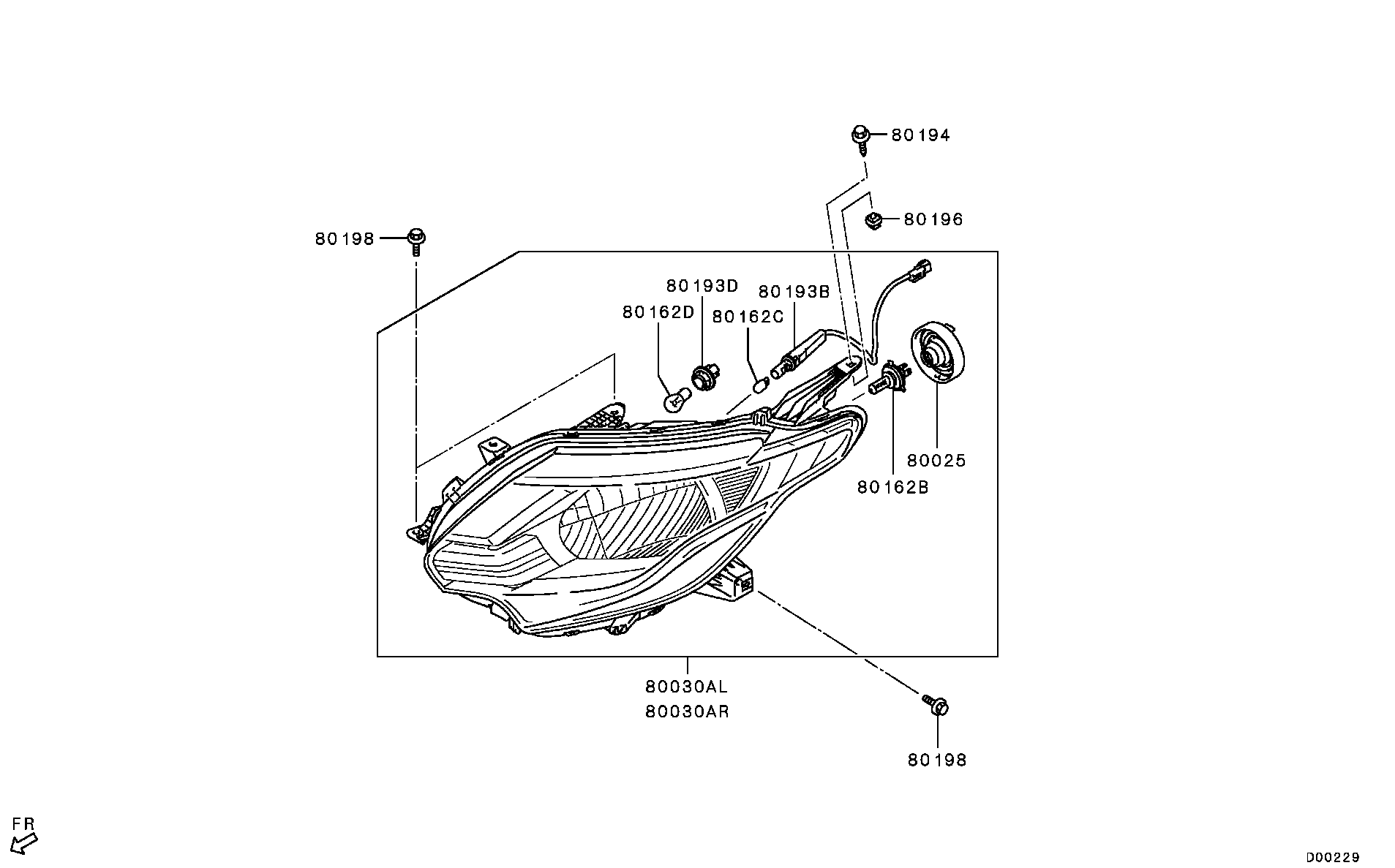

Mitsubishi L200-TRITON-STRADA-G-EXP-MMTH 2018 — Headlamp / Halogen

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8301C838 COVER,HEADLAMP BULB SOCKET 2
Production:2016-12 – 2018-10
8301C726 HEADLAMP ASSY,RH 1
Production:2016-12 – 2019-05 Remarks:HALOGEN
8301C725 HEADLAMP ASSY,LH 1
Production:2016-12 – 2019-05 Remarks:HALOGEN
MR393386 GROMMET,HEADLAMP 2
Production:2016-12 – 2018-10 Spec:6 Size:6
MS820046 BULB,HEADLAMP 2
Production:2016-12 – 2019-05 Spec:12V-21W Standard:12V-21W Color:BEAD:CLEAR
MS240142 BOLT,HEADLAMP 6
Note:ALL Production:2015-01 – 2019-05 Spec:WASHER ASSEMBLED,6X20 Size:6X20 Shape:WASHER ASSEMBLED
MU805815 SOCKET,HEADLAMP 2
Production:2016-12 – 2019-05
8301C804 SOCKET,HEADLAMP 2
Production:2016-12 – 2018-10
MS820090 BULB,HEADLAMP 2
Production:2016-12 – 2018-10 Spec:12V-5W Standard:12V-5W Color:BEAD:CLEAR
MS820968 BULB,HEADLAMP 2
Production:2016-12 – 2018-10 Spec:12V-60/55W(H4,HB2) Standard:12V-60/55W(H4,HB2) Remarks:HALOGEN
MS452398 SCREW,HEADLAMP 2
Production:2016-12 – 2018-06 Spec:TAPPING WASHER ASSEMBLED,6X25 Size:6X25 Shape:TAPPING WASHER ASSEMBLED Remarks:GREEN

Schéma

11 pièces
Mitsubishi L200-TRITON-STRADA-G-EXP-MMTH 2018 — Headlamp / Halogen
