Open RégionAnnéeModèleCode modèle Détails
USA / Canada 2022 HILUX DOUBLE CAB GUN125L-DTFLXV
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FC20 Production: 202208-202307 Model Short: GUN125L-DTFLXV Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2022 — Culasse

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
90109-06080 BOULON (P. TETE A CHAPEAU DE PALIER D'ARBRE A CAMES) 16
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
90119-T0551 BOULON (P. TETE A CHAPEAU DE PALIER D'ARBRE A CAMES) 16
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:90109-06080 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90105-T0130 BOULON (POUR CULASSE A CHAPEAU DE PALIER D'ARBRE A CAMES) 2
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:91551-80840 (fitment: unknown) Spec:(L) Spec Note:(Local made)
91551-80840 BOULON (POUR CULASSE A CHAPEAU DE PALIER D'ARBRE A CAMES) 6
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
90910-02192 BOULON (P. FIXATION DE CULASSE) 4
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J),NO.2 Spec Note:(Japan made),NO.2
90910-02193 BOULON (P. FIXATION DE CULASSE) 6
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J),NO.1 Spec Note:(Japan made),NO.1
90910-T2010 BOULON (P. FIXATION DE CULASSE) 6
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:90910-02193 (fitment: unknown) Spec:(L),NO.1 Spec Note:(Local made),NO.1
90910-T2011 BOULON (P. FIXATION DE CULASSE) 4
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:90910-02192 (fitment: unknown) Spec:(L),NO.2 Spec Note:(Local made),NO.2
11101-0E011 SOUS-ENS. DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:11101-11161 (fitment: unknown) Spec:THA SOURCED PARTS
11101-11161 SOUS-ENS. DE CULASSE 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:JAPAN SOURCED PARTS
90560-15022 ENTRETOISE (POUR BOULON DE FIXATION DE CULASSE) 6
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
90560-T0026 ENTRETOISE (POUR BOULON DE FIXATION DE CULASSE) 6
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:90560-15022 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90250-05027 GOUPILLE RECTILIGNE 2
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:L=8,OD=5,(J) Spec Note:L=8,OD=5,(Japan made)
90250-T0011 GOUPILLE RECTILIGNE 2
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:90250-05027 (fitment: unknown) Spec:L=8,OD=5,(L) Spec Note:L=8,OD=5,(Local made)
11115-0E020-A0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:11115-11120-A0 (fitment: unknown) Spec:MARK A,(L),REFER R/M Spec Note:MARK A,(Local made),REFER R/M
11115-0E020-B0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:11115-11120-B0 (fitment: unknown) Spec:MARK B,(L),REFER R/M Spec Note:MARK B,(Local made),REFER R/M
11115-0E020-C0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:11115-11120-C0 (fitment: unknown) Spec:MARK C,(L),REFER R/M Spec Note:MARK C,(Local made),REFER R/M
11115-0E020-D0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:11115-11120-D0 (fitment: unknown) Spec:MARK D,(L),REFER R/M Spec Note:MARK D,(Local made),REFER R/M
11115-0E020-E0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:11115-11120-E0 (fitment: unknown) Spec:MARK E,(L),REFER R/M Spec Note:MARK E,(Local made),REFER R/M
11115-11120-A0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – … Spec:MARK A,(J),REFER R/M Spec Note:MARK A,(Japan made),REFER R/M
11115-11120-B0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – … Spec:MARK B,(J),REFER R/M Spec Note:MARK B,(Japan made),REFER R/M
11115-11120-C0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – … Spec:MARK C,(J),REFER R/M Spec Note:MARK C,(Japan made),REFER R/M
11115-11120-D0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – … Spec:MARK D,(J),REFER R/M Spec Note:MARK D,(Japan made),REFER R/M
11115-11120-E0 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..AGTP,GHAP,KENP,MAP,MMRP,PKNP,SAP,THP Production:2022-08 – … Spec:MARK E,(J),REFER R/M Spec Note:MARK E,(Japan made),REFER R/M
90341-14015 OBTURATEUR FILETE AVEC TETE RECTILIGNE NO. 1 4
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
90341-T0005 OBTURATEUR FILETE AVEC TETE RECTILIGNE NO. 1 4
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:90341-14015 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90253-11021 GOUPILLE DE BAGUE 4
Note:1G#,2GDFTV..GGN125,GUN12#,13#..THP Production:2022-08 – 2023-07
11159-0E010 JOINT ETANC., ORIFICE GRAISSAGE CHAP. PAL. ARB. CAMES 2
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:11159-11010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11159-11010 JOINT ETANC., ORIFICE GRAISSAGE CHAP. PAL. ARB. CAMES 2
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
11201-0E011 SOUS-ENS. DE COUVERCLE DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – 2023-06 Replacements:11201-11081 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11201-11082 SOUS-ENS. DE COUVERCLE DE CULASSE 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
11213-0E010 JOINT DE CULASSE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:11213-11070 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11213-11070 JOINT DE CULASSE 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
11214-0E010 JOINT DE CULASSE NO. 2 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:11214-11010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11214-11010 JOINT DE CULASSE NO. 2 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
11382-11020 ARRETOIR, JOINT HUILE ARBRE A CAMES 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
11382-0E010 ARRETOIR, JOINT HUILE ARBRE A CAMES 1
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Replacements:11382-11020 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90919-05060 CAPTEUR ARBRE A CAMES 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07
12281-0E010 CROCHET SUSPENSION MOTEUR NO.1 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:12281-11050 (fitment: unknown) Spec:THA SOURCED PARTS
12281-11050 CROCHET SUSPENSION MOTEUR NO.1 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:JAPAN SOURCED PARTS
12284-0E010 DISP. SUSPENSION MOTEUR SUPERIEUR NO.1 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:12284-11010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
12284-11010 DISP. SUSPENSION MOTEUR SUPERIEUR NO.1 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
23682-0E010 JOINT ETANCH., SUPPORT GICLEUR 4
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:23682-11020 (fitment: unknown) Spec:(L) Spec Note:(Local made)
23682-11020 JOINT ETANCH., SUPPORT GICLEUR 4
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
11122-30020 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Spec:O/S 0.05
11123-30020 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Spec:STD
11122-30020 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Spec:O/S 0.05
11123-30020 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:1GDFTV,2GDFTV..GUN12#,13# Production:2022-08 – … Spec:STD
12180-0H020 SOUS-ENS. DE BOUCHON DE REMPLISSAGE D'HUILE 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:12180-38010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
12180-38010 SOUS-ENS. DE BOUCHON DE REMPLISSAGE D'HUILE 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
90080-43027 JOINT (P. BOUCHON DE REMPLISSAGE D'HUILE) 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:90430-37140 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90430-35001 JOINT (P. BOUCHON DE REMPLISSAGE D'HUILE) 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
12282-0E010 CROCHET SUSPENSION MOTEUR NO.2 1
Note:1GDFTV,2GDFTV..GUN12#,13#..THP Production:2022-08 – 2023-07 Replacements:12282-11080 (fitment: unknown) Spec:(L) Spec Note:(Local made)
12282-11080 CROCHET SUSPENSION MOTEUR NO.2 1
Note:2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH Production:2022-08 – 2023-07 Spec:(J) Spec Note:(Japan made)
90126-06030 standard —
90109-06384 standard —
90109-T0055 standard —
Replacements:90109-06384 (fitment: unknown)
90119-T0238 standard —
91671-80825 standard —
91552-81025 standard —
90105-T0073 standard —
Replacements:91552-81025 (fitment: unknown)
94151-80600 standard —
90178-T0018 standard —
90119-T0219 standard —
Replacements:91671-80835 (fitment: unknown)
91671-80835 standard —
91551-80625 standard —
90105-T0052 standard —
Replacements:91551-80625 (fitment: unknown)

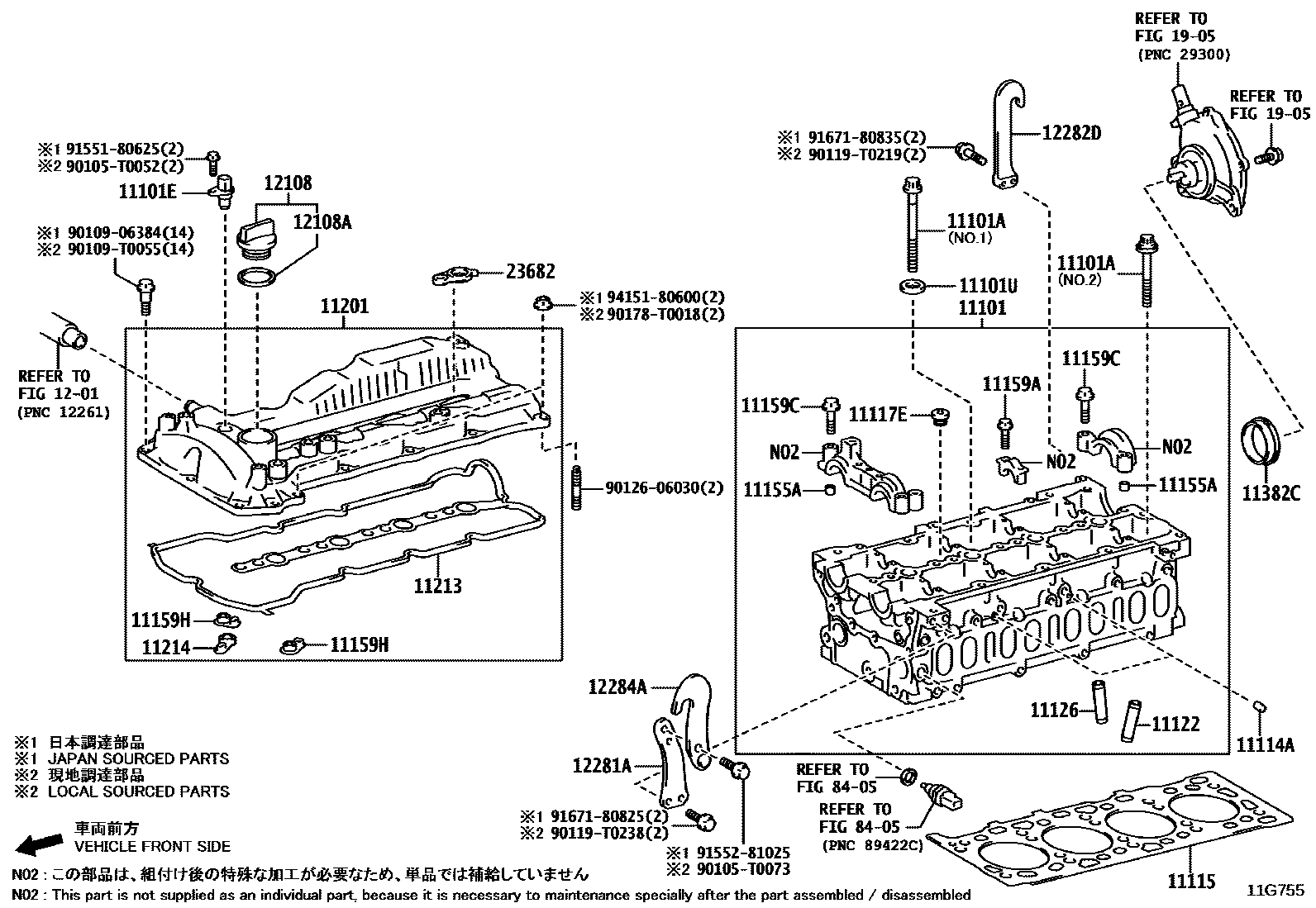

Schéma

67 pièces
Toyota HILUX-DOUBLE-CAB 2022 — Culasse
