Toyota Hilux 2014 — Circuit De Depression
Pièces de rechange
| Numéro de pièce | Description | PNC | Quantité |
|---|---|---|---|
| 90917-11036 | FILTRE A GAZ NO. 1 | 1 | |
Note:1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA) Production:2011-07 – 2016-01 | |||
| — | Cette pièce ne correspond pas à la configuration de ce véhicule. | 25770 | — |
| — | Cette pièce ne correspond pas à la configuration de ce véhicule. | 25804 | — |
| — | Cette pièce ne correspond pas à la configuration de ce véhicule. | 25780 | — |
| — | Cette pièce ne correspond pas à la configuration de ce véhicule. | 25760A | — |
| 25707-0L020 | SOUS-ENS. TUYAU D'EMISSION DE VIDE NO. 2 | 1 | |
Note:1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..4FC..(CO,TH);2KDFTV..KUN35..LHD..DCB..DLX;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN35..SCB,THDCB,XTR;2KDFTV..KUN35..SR..(GEN,PHL,SA);2KDFTV..KUN25..RHD..(IDN,MA,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;2KDFTV..KUN15,25..DLX..(CO,LA,PHL);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA);1KDFTV,2KDFTV..KUN1#..RHD..(4FC,5F)..DCR..(IDN,SA,TH) Production:2011-07 – 2016-01 Replacements:25707-30020 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****) | |||
| 25707-30020 | SOUS-ENS. TUYAU D'EMISSION DE VIDE NO. 2 | 1 | |
Note:1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN15,35..DLX..PHL;2KDFTV..KUN25..RHD..(MA,SA);1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN35..SR..(GEN,PHL,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);2KDFTV..KUN15,25..SR..(GEN,IDN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA);2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN Production:2011-07 – 2016-01 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX) | |||
| 25706-0L010 | SOUS-ENS. TUYAU D'EMISSION DE VIDE NO. 1 | 1 | |
Note:2KDFTV..KUN15..DCR;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..CO,LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;2KDFTV..KUN10,25..CO,GCC,GEN,IDN,LA,MA,PKN,SA;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2011-07 – 2016-09 Replacements:25706-30020 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****) | |||
| 25706-30020 | SOUS-ENS. TUYAU D'EMISSION DE VIDE NO. 1 | 1 | |
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25..HDCR..(GCC,GEN,MA,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX) | |||
| — | Cette pièce ne correspond pas à la configuration de ce véhicule. | 25860E | — |
| — | Cette pièce ne correspond pas à la configuration de ce véhicule. | 25860A | — |
| 17696-0L020 | PLAT. FIX., FILTRE A ESSENCE | 1 | |
Note:1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA) Production:2011-07 – 2016-01 | |||
| — | Cette pièce ne correspond pas à la configuration de ce véhicule. | 25760 | — |
| 93319-15008 | standard | — | |
| 91551-80816 | standard | — | |
| 90999-92002 | standard | — | |
| 90464-00082 | standard | — | |
| 82711-33250 | standard | — | |
| 90447-08168 | standard | — | |
| 90469-07011 | standard | — | |

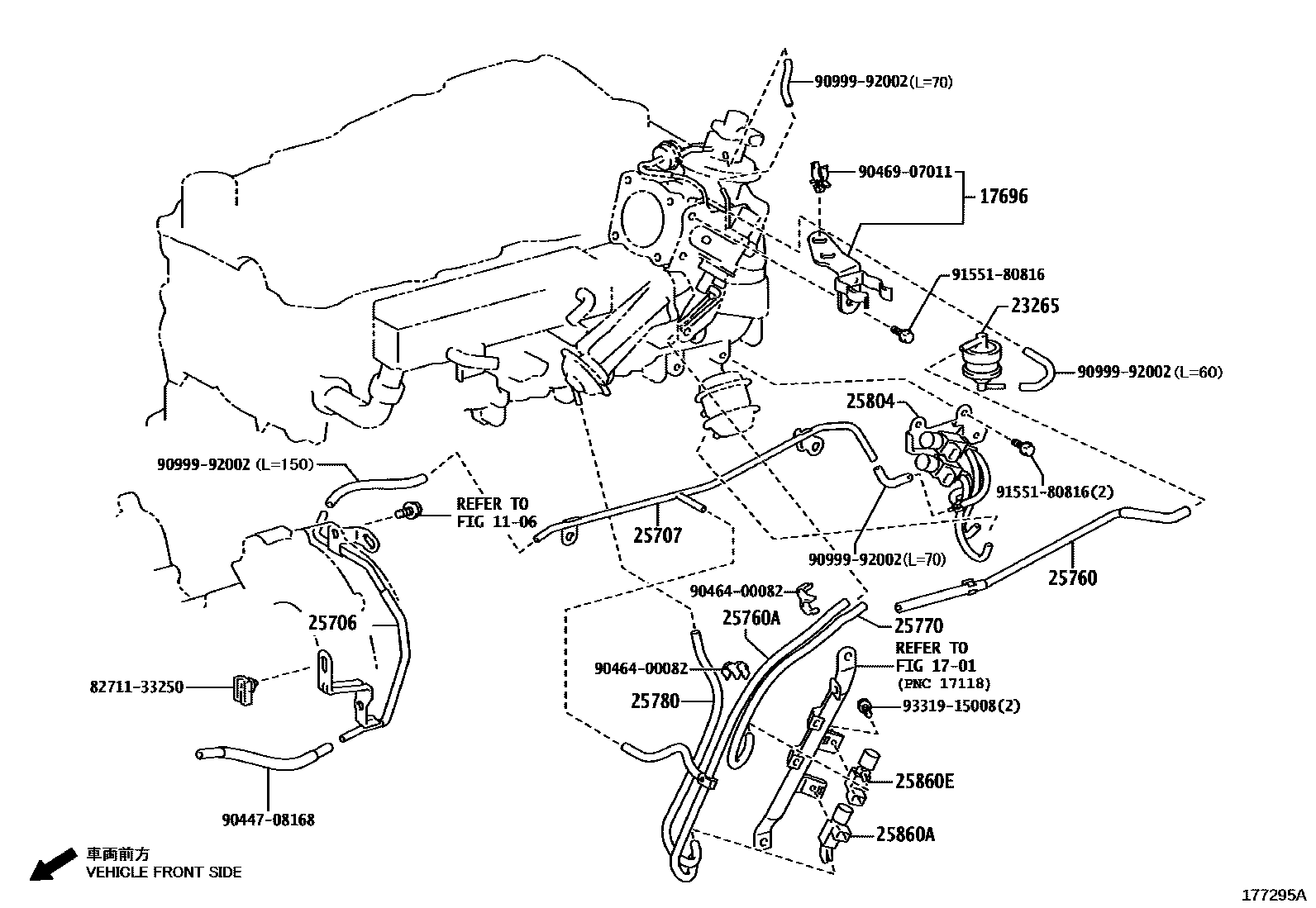

Schéma
13 pièces
