Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84920-33120 SWITCH ASSY, POWER SEAT FRONT, LH 1
Note:GSZ10..GCC;AXZA10,AXZH10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 Spec:ULTRA LUXURY PACKAGE
89710-33090 COMPUTER ASSY, POSITION CONTROL, LH 1
Note:AXZH10..LHD..(CHI,EUR) Production:2021-08 – 2024-02 Spec:ULTRA LUXURY PACKAGE
89710-33140 COMPUTER ASSY, POSITION CONTROL, RH 1
Note:AXZH10..LHD..(CHI,EUR) Production:2021-08 – 2024-02 Spec:ULTRA LUXURY PACKAGE
84920-33130 SWITCH ASSY, POWER SEAT FRONT, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 Spec:ULTRA LUXURY PACKAGE
84920-33220-C0 SWITCH ASSY, POWER SEAT 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 Spec:ULTRA LUXURY PACKAGE,BLACK,TRIM0#,2#,4#,6#,7#
84660-33310 SWITCH ASSY, COOLER CONTROL 1
Note:AXZH10..ARL;AXZH10..LHD..EUR Production:2021-08 – 2024-11 Spec:ULTRA LUXURY PACKAGE&SUN SHADE-WITH(REAR DOOR & REAR WINDOW)&AIR CONDITIONER-3ZONEMODE CONTROL & W(HUMIDITY SENSOR)
93560-54012 standard —

Diagram

7 parts

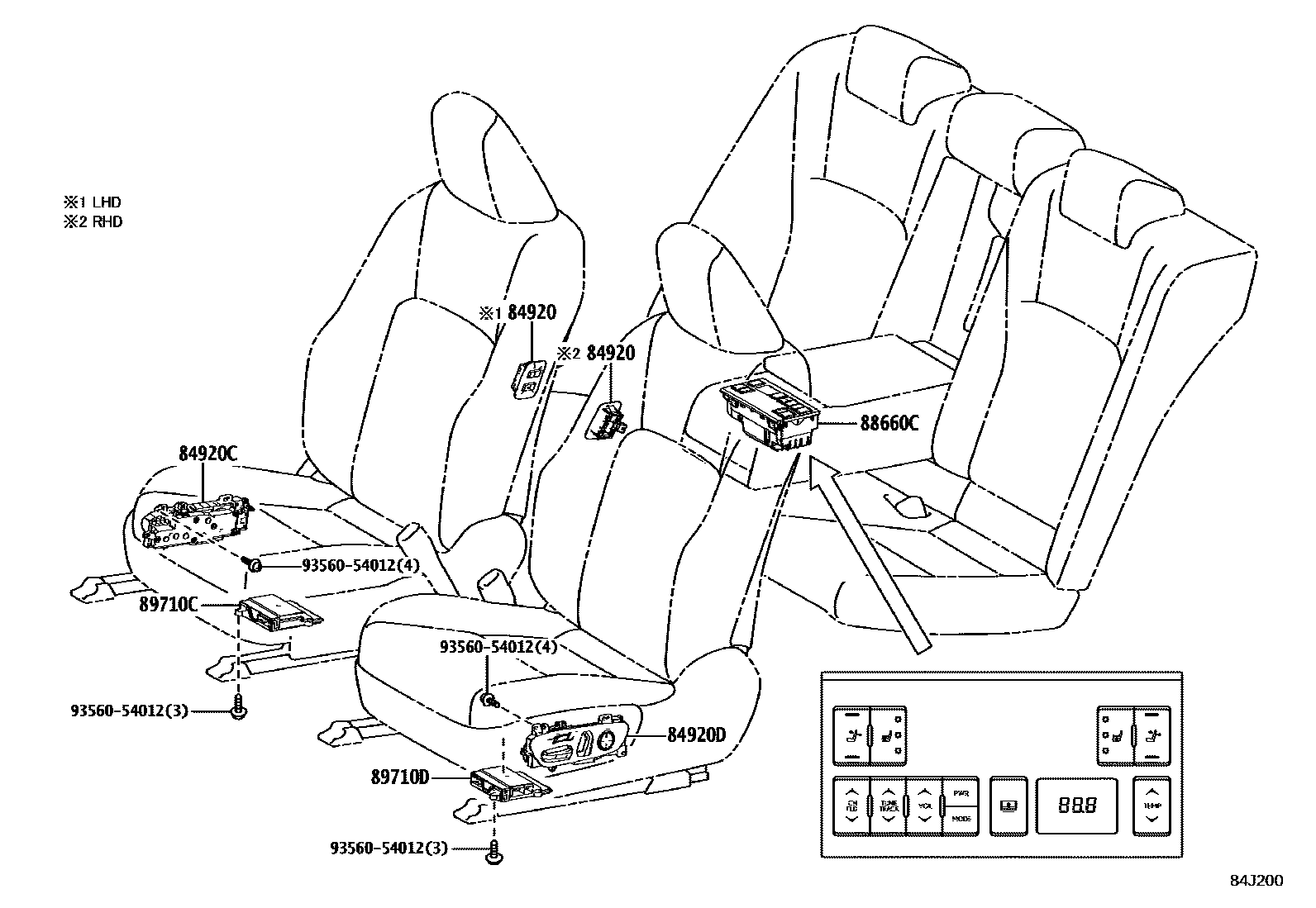

Lexus ES350-300H-2 2022 — Switch & Relay & Computer
