Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84872-78020 SWITCH ASSY, OUTER MIRROR 1
Note:AXZH10..LHD..EUR Production:2021-08 – 2024-02 Spec:ULTRA LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & *RIF & ASPHERICAL
84040-33250 MASTER SWITCH ASSY,MULTIPLEX NETWORK 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12
89430-33300 COMPUTER ASSY, OUTER MIRROR CONTROL, RH 1
Note:AXZH10..EUR Production:2021-08 – 2024-02 Spec:ULTRA LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & *RIF & ASPHERICAL
84810-33150 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
84930-33140 SWITCH ASSY, DOOR CONTROL 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
84927-33160 SWITCH, SEAT MEMORY, RH 1
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC Production:2021-08 – 2025-12 Spec:ULTRA LUXURY PACKAGE
84231-30380 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
84810-33150 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
84231-50190 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
84927-33150 SWITCH, SEAT MEMORY, LH 1
Note:GSZ10..GCC;AXZA10,AXZH10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:ULTRA LUXURY PACKAGE
89430-33290 COMPUTER ASSY, OUTER MIRROR CONTROL, LH 1
Note:AXZH10..EUR Production:2021-08 – 2024-02 Spec:ULTRA LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & MEMORY & *RIF & ASPHERICAL
90164-40103 standard —
90159-60303 standard —
90189-06227 standard —
90164-40105 standard —
90166-70001 standard —

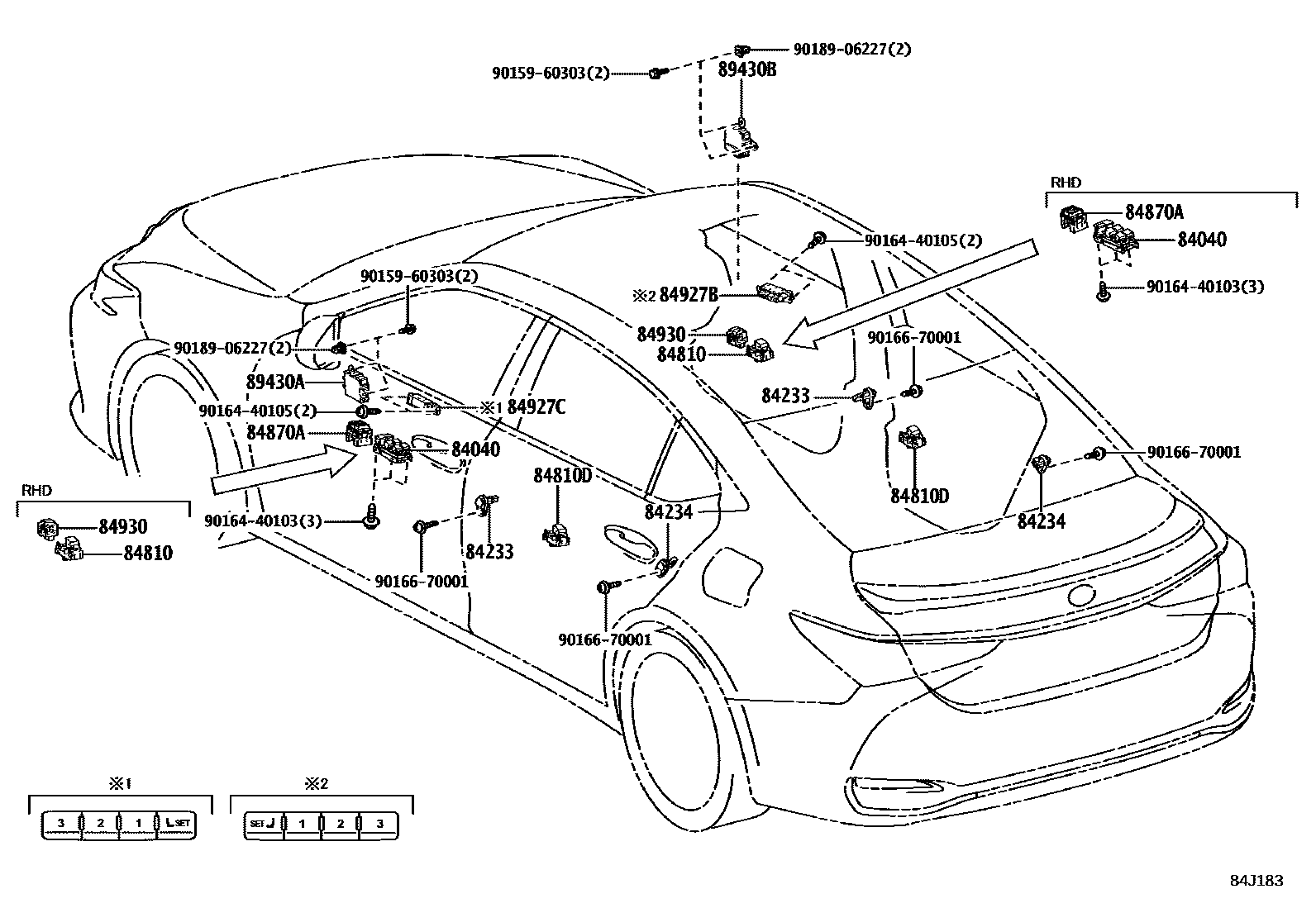

Diagram

16 parts
Lexus ES350-300H-2 2022 — Switch & Relay & Computer
