Toyota CAMRY-HYBRID-NAP 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 82610C | — |
| — | Part does not apply to this vehicle configuration. | 82662C | — |
| — | Part does not apply to this vehicle configuration. | 82663A | — |
| 82610-33140 | BLOCK ASSY, FUSE | 1 | |
Note:AXVH7# Production:2020-10 – … | |||
| 82660-33100 | BLOCK ASSY, RELAY | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … | |||
| 82660-33110 | BLOCK ASSY, RELAY | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … | |||
| 82661-33050 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … | |||
| 82662-06480 | COVER, RELAY BLOCK, UPPER, NO.2 | 1 | |
Note:AXVH7# Production:2020-10 – … | |||
| 82663-33230 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:AXVH7# Production:2020-10 – … | |||
| 82740-33090 | BLOCK ASSY, ENGINE ROOM RELAY | 1 | |
Note:AXVH7# Production:2020-10 – … | |||
| — | Part does not apply to this vehicle configuration. | 82742 | — |
| 90982-08296 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:50A,FEMALE,RED,58V | |||
| 90982-08298 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:30A,TERMINAL:FEMALE | |||
| 90982-08300 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXVH7# Production:2020-10 – … Spec:50A-30A-30A,FEMALE | |||
| 90982-08303 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXVH7# Production:2020-10 – … Spec:50A-50A-50A,FEMALE | |||
| 90080-87026 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:(J) Spec Note:(Japan made) | |||
| — | Part does not apply to this vehicle configuration. | 87346K | — |
| 90080-87026 | RELAY, DAY TIME RUNNING LIGHT, NO.1 | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, DAY TIME RUNNING LIGHT, NO.1 | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … Spec:(J) Spec Note:(Japan made) | |||
| 90080-87026 | RELAY ASSY, HORN | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90080-87024 | RELAY, WINDSHIELD WASHER | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Replacements:90987-02025 (fitment: unknown) | |||
| 90080-87026 | RELAY, IGNITION, NO.2 | 1 | |
Note:A25#,2GRFKS..AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90080-87026 | RELAY, HEADLAMP DIMMER | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90080-87025 | RELAY, DEFOGGER | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Replacements:90987-04010 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 28300 | — |
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:25A,MINI FUSE | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Spec:30A,MINI FUSE,GRN | |||
| 82620-33140 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:AXVH7# Production:2020-10 – … | |||
| 90080-87026 | RELAY, HEADLAMP | 2 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … Replacements:90987-02027 (fitment: unknown) | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … | |||
| 90178-06018 | standard | — | |
| 90178-06025 | standard | — | |
| 90119-06951 | standard | — | |
| 90119-A0105 | standard | — | |
Replacements:90119-06951 (fitment: unknown) | |||
| 90119-06A18 | standard | — | |
| 94151-80600 | standard | — | |
| 90178-A0023 | standard | — | |
Replacements:94151-80600 (fitment: unknown) | |||

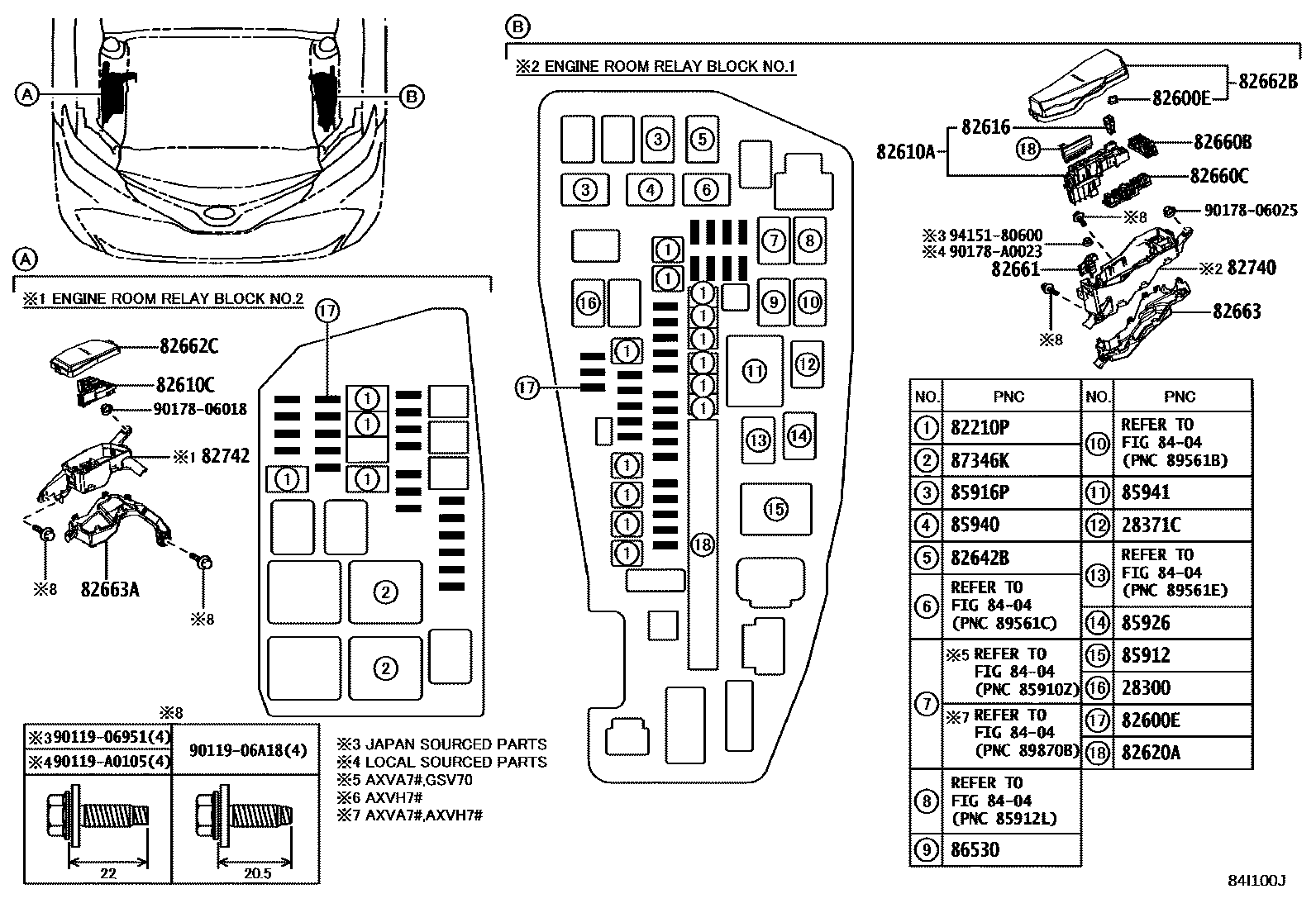

Diagram
36 parts
