Toyota CAMRY-HYBRID-NAP 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-06210 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AXVH7# Production:2020-10 – … Spec:MARK=06210 | |||
| 83320-33160 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AXVH7# Production:2020-10 – … Spec:MARK=33160 | |||
| 84930-0E160 | SWITCH ASSY, DOOR CONTROL | 1 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … | |||
| 88162-06080 | SENSOR, BLIND SPOT MONITOR, RH | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 89747-52010 | BUZZER, BLIND SPOT MONITOR | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 84872-08030 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 84040-0E120 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 84231-08030 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … | |||
| 84231-08030 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:AXVA7#,AXVH7#,GSV70 Production:2020-10 – … | |||
| 88162-06080 | SENSOR, BLIND SPOT MONITOR, LH | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 84810-0E110 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 84810-0E110 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXVA7#,AXVH7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 28850-F0080 | SENSOR ASSY, BATTERY STATE | 1 | |
Note:A25AFXS..AXVH7# Production:2020-10 – … | |||
| — | Part does not apply to this vehicle configuration. | 28859A | — |
| 82620-33160 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:AXVH7# Production:2020-10 – … | |||
| — | Part does not apply to this vehicle configuration. | 82671A | — |
| 90982-09019 | LUGGAGE ROOM FUSE | 1 | |
Note:AXVH7# Production:2020-10 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | LUGGAGE ROOM FUSE | 1 | |
Note:AXVH7# Production:2020-10 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 89461-48020 | SENSOR, VAPOR PRESSURE | 1 | |
Note:AXVH7# Production:2020-10 – … | |||
| — | Part does not apply to this vehicle configuration. | 83320B | — |
| 84945-06020 | SWITCH, LUGGAGE ELECTRICAL KEY | 1 | |
Note:AXVH7#;AXVA7#,GSV70..XLE,XSE Production:2020-10 – … | |||
| 90080-17245 | standard | — | |
Replacements:90178-06012 (fitment: unknown) | |||
| 90080-16098 | standard | — | |
| 90166-A0008 | standard | — | |
| 90166-70001 | standard | — | |
| 90159-60498 | standard | — | |
| 90189-06197 | standard | — | |

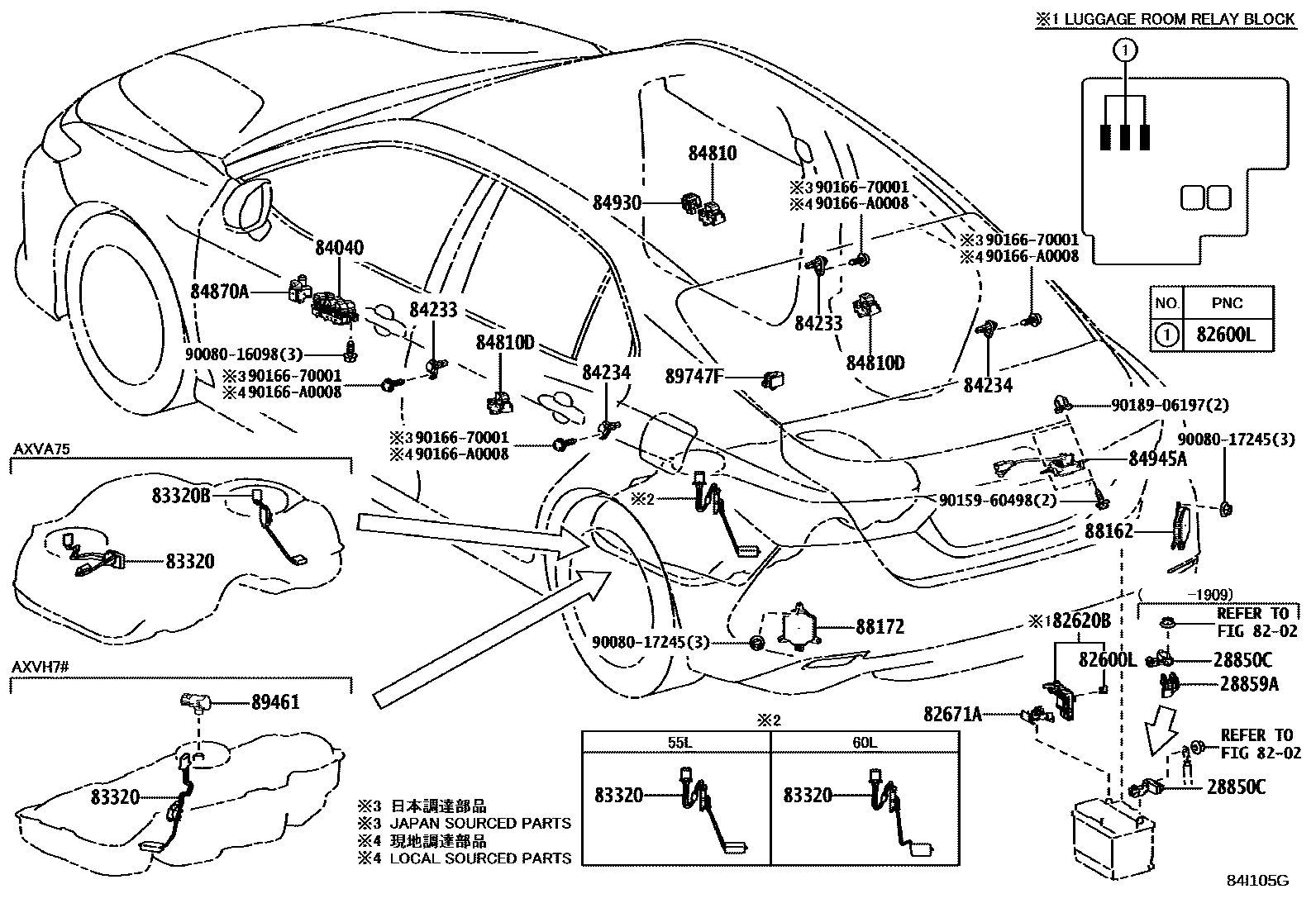

Diagram
24 parts
