Toyota COROLLA-S-AFRICA 2006 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82741-12020 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 82663-12010 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 82616-20010 | PULLER, FUSE | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 82662-02070 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:ZZE120,121,122 Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 90080-87027 | RELAY, MAGNET-CLUTCH | 1 | |
Note:ZZE123;ZZE120,121,122..SA Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087027 Fitment:Matches · configuration | |||
| 90987-02020 | RELAY, MAGNET-CLUTCH | 1 | |
Note:ZZE123;ZZE120,121,122..SA Production:2004-08 – 2007-07 Replacements:90987-02027 (fitment: unknown) Spec:P/N LABEL=9098702020 Fitment:Matches · configuration | |||
| 90080-82020 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09008 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration | |||
| 90080-82021 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09009 (fitment: unknown) Spec:10A,MINI FUSE,RED,LOCAL SOURCED PARTS Fitment:Matches · configuration | |||
| 90080-82022 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09010 (fitment: unknown) Spec:15A,MINI FUSE,BLUE,LOCAL SOURCED PARTS Fitment:Matches · configuration | |||
| 90080-82024 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09013 (fitment: unknown) Spec:30A,MINI FUSE,GREEN,LOCAL SOURCED PARTS Fitment:Matches · configuration | |||
| 90080-82033 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90982-09012 (fitment: unknown) Spec:25A,MINI FUSE Fitment:Matches · configuration | |||
| 90982-09007 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:5A,MINI FUSE,TAN Fitment:Matches · configuration | |||
| 90982-09009 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:10A,MINI FUSE,RED,JAPAN SOURCED PARTS Fitment:Matches · configuration | |||
| 90982-09010 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:15A,MINI FUSE,BLUE,JAPAN SOURCED PARTS Fitment:Matches · configuration | |||
| 90982-09013 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:30A,MINI FUSE,GRN,JAPAN SOURCED PARTS Fitment:Matches · configuration | |||
| 90080-87009 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-04004 (fitment: unknown) Spec:P/N LABEL=9008087009 Fitment:Matches · configuration | |||
| 90080-87020 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-04004 (fitment: unknown) Spec:P/N LABEL=9008087020 Fitment:Matches · configuration | |||
| 90080-87028 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-04004 (fitment: unknown) Spec:P/N LABEL=9008087028 Fitment:Matches · configuration | |||
| 90987-04004 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:P/N LABEL=9098704004 Fitment:Matches · configuration | |||
| 90080-87008 | RELAY, COOLING FAN | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087008 Fitment:Matches · configuration | |||
| 90080-87010 | RELAY, COOLING FAN | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02027 (fitment: unknown) Spec:P/N LABEL=9008087010 Fitment:Matches · configuration | |||
| 90080-87021 | RELAY, COOLING FAN | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087021 Fitment:Matches · configuration | |||
| 90080-87027 | RELAY, COOLING FAN | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087027 Fitment:Matches · configuration | |||
| 90987-02027 | RELAY, COOLING FAN | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Spec:P/N LABEL=9098702027 Fitment:Matches · configuration | |||
| 90080-87008 | RELAY ASSY, HORN | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087008 Fitment:Matches · configuration | |||
| 90080-87027 | RELAY ASSY, HORN | 1 | |
Note:ZZE12# Production:2004-08 – 2007-07 Replacements:90987-02012 (fitment: unknown) Spec:P/N LABEL=9008087027 Fitment:Matches · configuration | |||
| 91651-B0618 | standard | — | |
Fitment:Matches · configuration | |||
| 90179-06292 | standard | — | |
Fitment:Matches · configuration | |||

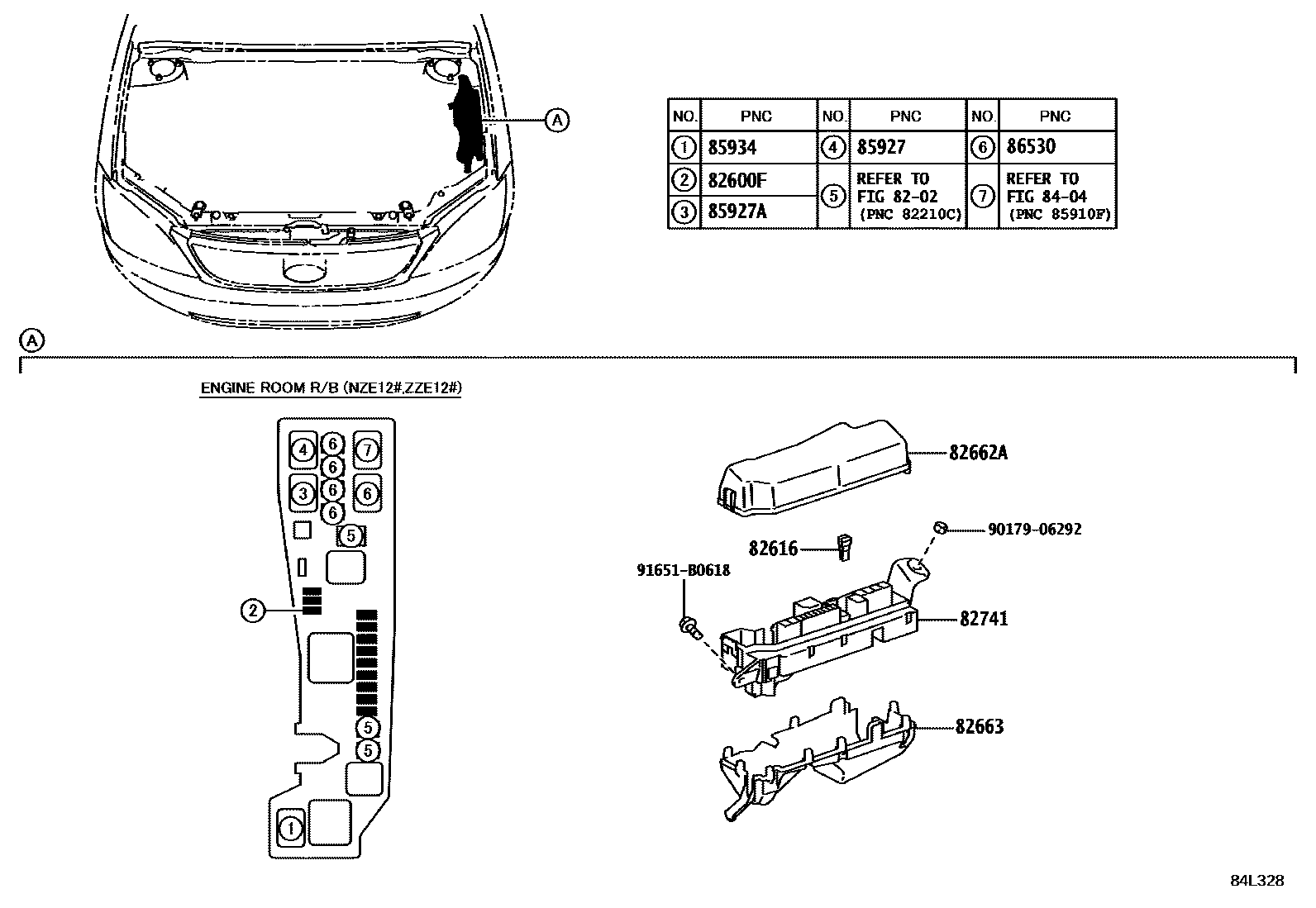

Diagram
28 parts
