Toyota COROLLA-S-AFRICA 2006 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90010-03044 | LAMP SUB-ASSY, INDICATOR | 1 | |
Note:ZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD Production:2004-08 – 2007-07 Spec:14V0.84W,W/GREEN CAP Fitment:Matches · configuration | |||
| 84999-10310 | BULB, HAZARD WARNING SIGNAL SWITCH | 1 | |
Note:ZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD Production:2004-08 – 2007-07 Spec:14V 0.91W Fitment:Matches · configuration | |||
| 84660-12200 | SWITCH, COOLER | 1 | |
Note:ZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 90010-01060 | BULB(FOR REAR WINDOW DEFOGGER SWITCH) | 1 | |
Note:ZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD Production:2004-08 – 2007-07 Spec:14V0.84W,W/GREEN CAP Fitment:Matches · configuration | |||
| 84332-12440 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:ZZE122..ARL;ZZE122..GLS;ZZE120,121..GLE,GLS,RS,RT,STD Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 85513-12020 | COVER, CIGARETTE LIGHTER | 1 | |
Note:ZZE12# Production:2004-08 – 2007-06 Spec:TYPE A:REFER ILLUST. Fitment:Matches · configuration | |||
| 85513-28010 | COVER, CIGARETTE LIGHTER | 1 | |
Note:ZZE12# Production:2004-08 – 2007-06 Spec:TYPE B:REFER ILLUST. Fitment:Matches · configuration | |||
| 85520-28010 | KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | 1 | |
Note:ZZE12# Production:2004-08 – 2007-06 Fitment:Matches · configuration | |||
| 85500-12240 | LIGHTER ASSY, CIGARETTE | 1 | |
Note:ZZE12# Production:2004-08 – 2007-06 Fitment:Matches · configuration | |||
| 85510-16040 | SOCKET & RETAINER ASSY, CIGARLIGHTER | 1 | |
Note:ZZE12# Production:2004-08 – 2007-06 Fitment:Matches · configuration | |||
| 85515-12110 | STAY, CIGARETTE LIGHTER BEZEL | 1 | |
Note:ZZE12# Production:2004-08 – 2007-06 Fitment:Matches · configuration | |||
| 90010-01065 | BULB, CIGARETTE LIGHTER | 1 | |
Note:ZZE12# Production:2004-08 – 2007-06 Replacements:84999-10250 (fitment: unknown) Spec:14V1.4W,W(GREEN CAP) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84870A | — |
| 84999-10310 | BULB(FOR DOOR CONTROL SWITCH) | 1 | |
Note:ZZE122..ARL;ZZE120,121..GLE,RT,STD Production:2004-08 – 2007-07 Spec:14V 0.91W Fitment:Matches · configuration | |||
| 84930-52010 | SWITCH ASSY, DOOR CONTROL | 1 | |
Note:ZZE122..ARL;ZZE120,121..GLE,RT,STD Production:2004-08 – 2007-07 Fitment:Matches · configuration | |||
| 84656-12110-B0 | BEZEL, SWITCH | 1 | |
Note:ZZE120..RT Production:2004-08 – 2007-07 Spec:DK.GRAY,TRIM1# Fitment:Matches · configuration | |||

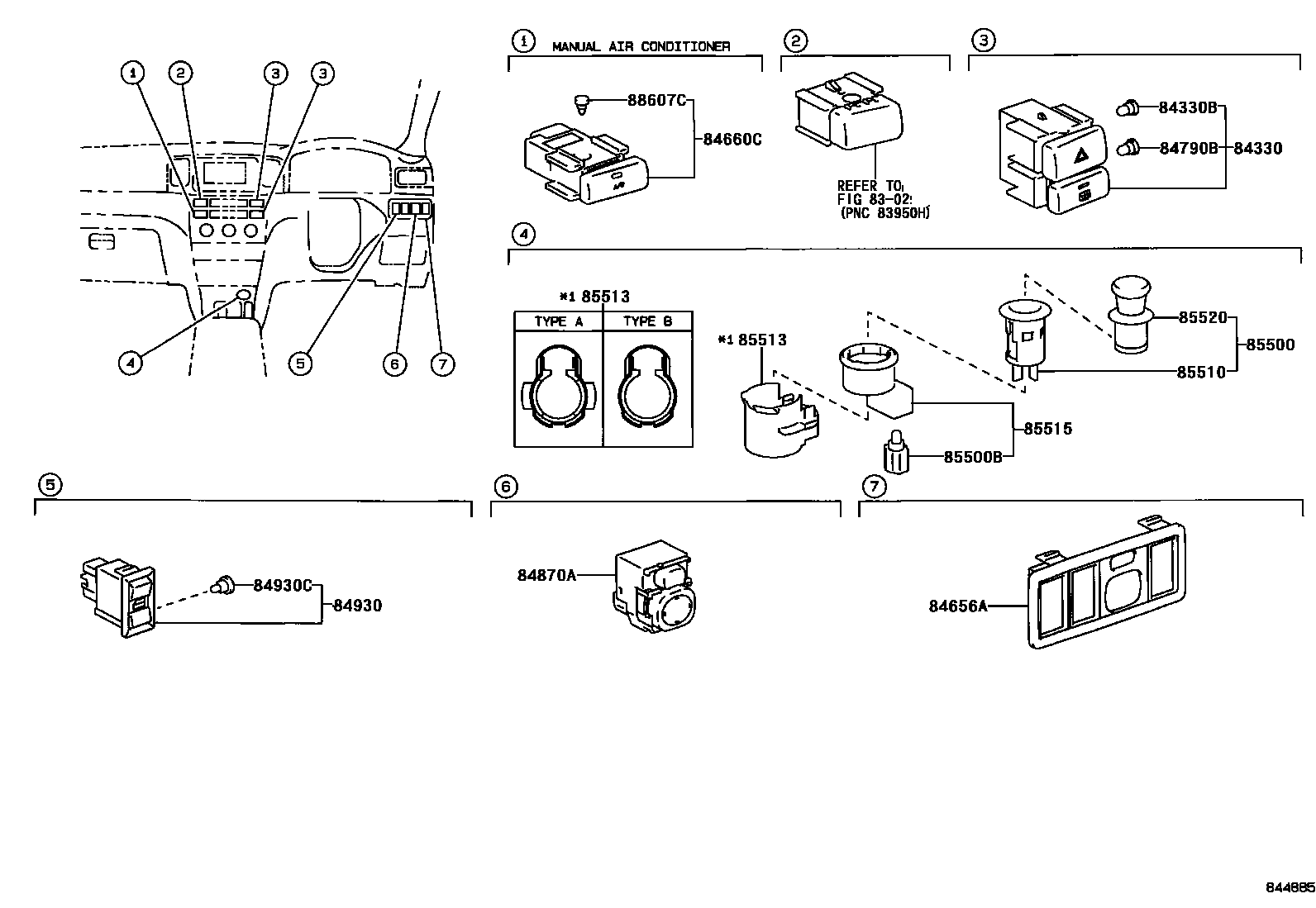

Diagram
15 parts
