Toyota Corolla 2015 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90987-02027 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| 90987-T2002 | RELAY, HEATER | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2014-01 – 2017-01 Replacements:90987-02025 (fitment: unknown) | |||
| 90080-87021 | RELAY, LAMP CUT | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Replacements:90987-02012 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85916D | — |
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Spec:25A,MINI FUSE | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Spec:30A,FEMALE,PNK,32V | |||
| 82755-12030 | BLOCK, CENTER RELAY | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 | |||
| 84340-09040 | SWITCH ASSY, STOP LAMP | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2014-01 – 2017-01 Replacements:84340-19025 (fitment: unknown) | |||
| 89650-12E90 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2015-04 Replacements:89650-12E91 (fitment: unknown) | |||
| 82673-12320 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| 82673-12330 | BRACKET, JUNCTION BLOCK | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| 89220-02150 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:NDE180,NRE180,ZRE18#..6F..SA Production:2014-01 – 2017-01 | |||
| 82673-12310 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| 69065-02010 | CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 Replacements:69065-12460 (fitment: unknown) | |||
| 82730-12Y50 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2016-05 Replacements:82730-12Y51 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85903 | — |
| 82672-12570 | COVER, JUNCTION BLOCK | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| 84520-42010 | SWITCH ASSY, CLUTCH START | 2 | |
Note:NDE180,NRE180,ZRE18#..6F..SAP Production:2013-06 – 2017-01 | |||
| 84550-16060 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| — | Part does not apply to this vehicle configuration. | 82877 | — |
| — | Part does not apply to this vehicle configuration. | 85940 | — |
| 85970-12030 | RELAY ASSY, DOUBLE LOCK DOOR CONTROL | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| — | Part does not apply to this vehicle configuration. | 89120A | — |
| — | Part does not apply to this vehicle configuration. | 895A0A | — |
| — | Part does not apply to this vehicle configuration. | 89960 | — |
| 90119-06952 | standard | — | |
| 90119-W0156 | standard | — | |
Replacements:90119-06952 (fitment: unknown) | |||
| 90179-06110 | standard | — | |
| 93315-14012 | standard | — | |
| 94120-41000 | standard | — | |
| 90159-70004 | standard | — | |
| 90119-T0260 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 90119-W0030 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||

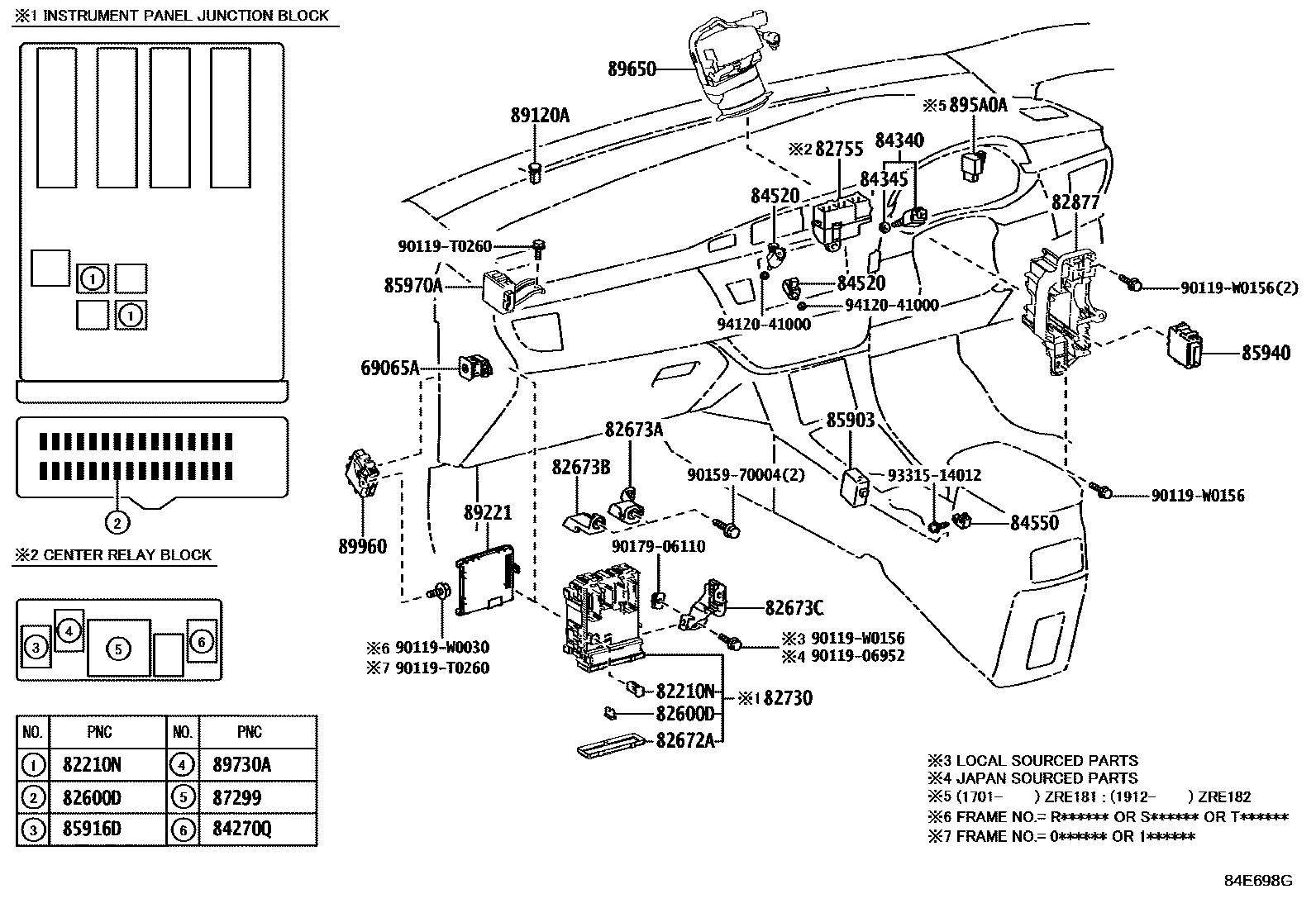

Diagram
32 parts
