Toyota Corolla 2015 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-02390-C0 | SWITCH ASSY, STEERING PAD | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2014-01 – 2015-05 Replacements:84250-02390-C1 (fitment: unknown) Spec:BLACK,TRIM2# | |||
| 84306-02210 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 | |||
| 84450-02030 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 | |||
| 84052-71010 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:NDE180,NRE180,ZRE18#..SAP Production:2013-06 – 2017-01 | |||
| — | Part does not apply to this vehicle configuration. | 82291D | — |
| — | Part does not apply to this vehicle configuration. | 84307 | — |
| 84140-02B00 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| 84652-06270 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:NDE180,NRE180,ZRE18#..SA Production:2014-01 – 2017-01 | |||
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| — | Part does not apply to this vehicle configuration. | 89245B | — |
| 93319-14012 | standard | — | |
| 90159-50199 | standard | — | |

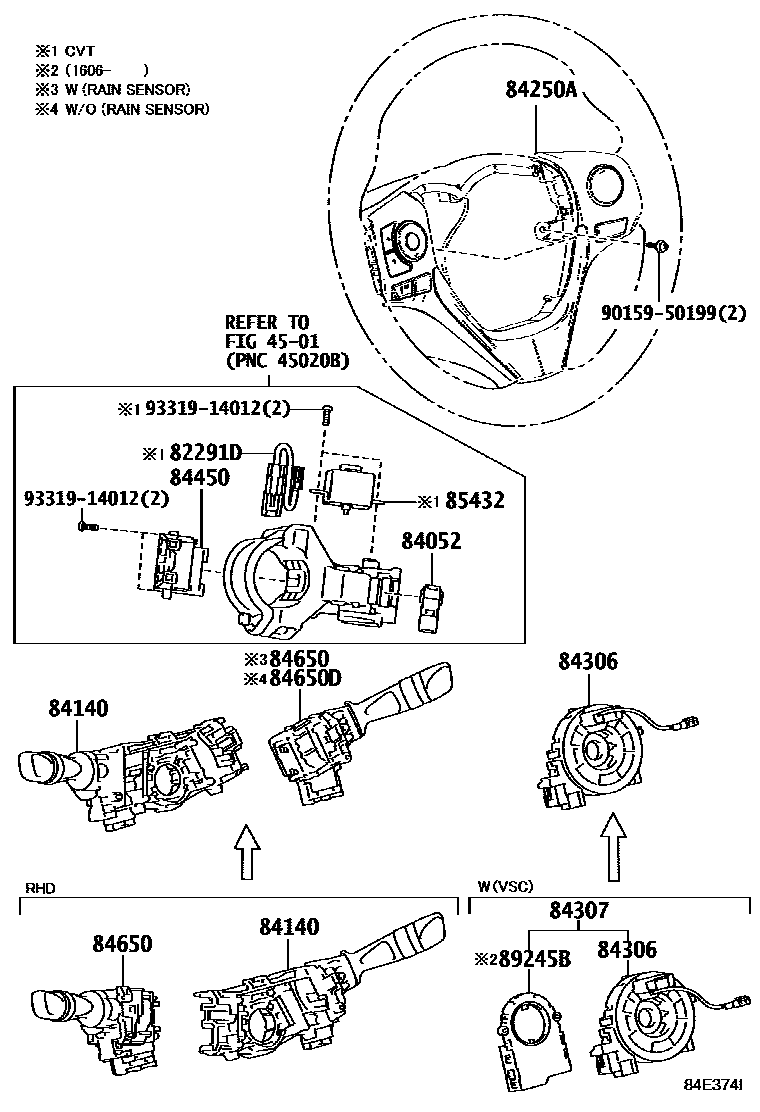

Diagram
8 parts
