Toyota Tercel — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84222B | — |
| 89427-16020 | SWITCH, TEMPERATURE DETECT | 1 | |
Note:AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC Production:1982-08 – 1987-08 Fitment:Matches · model | |||
| 83420-16010 | GAGE ASSY, WATER TEMPERATURE SENDER | 1 | |
Note:AL2# Production:1982-08 – 1983-08 Replacements:83420-20020 (fitment: unknown) Fitment:Matches · model | |||
| 83420-20020 | GAGE ASSY, WATER TEMPERATURE SENDER | 1 | |
Note:AL2# Production:1983-08 – 1988-01 Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84222 | — |
| 84210-16021 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:AL2#..MTM Production:1982-08 – 1984-08 Fitment:Matches · model | |||
| 84210-16030 | SWITCH ASSY, BACK-UP LAMP | 1 | |
Note:AL2#..MTM Production:1984-08 – 1988-01 Fitment:Matches · model | |||
| 89428-15030 | SWITCH, TEMPERATURE DETECT, NO.2 | 1 | |
Note:AL2# Production:1982-08 – 1987-08 Fitment:Matches · model | |||
| 84540-16020 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:AL2#..3FC Production:1982-08 – 1988-01 Fitment:Matches · model | |||
| 83530-12040 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:AL2# Production:1982-08 – 1985-02 Replacements:83530-14040 (fitment: unknown) Fitment:Matches · model | |||
| 83530-14040 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:AL2# Production:1985-02 – 1985-11 Replacements:83530-30080 (fitment: unknown) Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 85420E | — |
| 83391-16040 | SWITCH, VACUUM | 1 | |
Note:AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC Production:1982-08 – 1987-08 Spec:MARK=80M Fitment:Matches · model | |||
| 83391-16060 | SWITCH, VACUUM | 1 | |
Note:AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC Production:1982-08 – 1987-08 Spec:MARK=200B Fitment:Matches · model | |||
| 85931-16010 | RELAY, EMISSION CONTROL | 1 | |
Note:AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC Production:1982-08 – 1987-08 Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 83399 | — |
| 85430-16011 | VALVE, OUTER VENT CONTROL | 1 | |
Note:AL2#..USA Production:1982-08 – 1988-01 Fitment:Matches · model | |||
| 85430-16011 | VALVE, OUTER VENT CONTROL | 1 | |
Note:AL2#..3FC..CND;AL21..STD..CND..3AC Production:1982-08 – 1988-01 Fitment:Matches · model | |||
| 89465-29075 | SENSOR, OXYGEN | 1 | |
Note:AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC Production:1982-08 – 1987-08 Replacements:89465-29076 (fitment: unknown) Fitment:Matches · model | |||
| 89466-30010 | GASKET, OXYGEN SENSOR | 1 | |
Note:AL21..USA;AL25..3FC;AL25..6F..USA;AL21..(3FC,4F)..CND..3AC Production:1982-08 – 1987-08 Replacements:89466-20020 (fitment: unknown) Fitment:Matches · model | |||
| 90987-02002 | RELAY, IGNITION, NO.1 | 1 | |
Note:3A#..AL2# Production:1982-08 – 1984-08 Replacements:90987-02004 (fitment: unknown) Fitment:Matches · model | |||
| 90987-02004 | RELAY, IGNITION, NO.1 | 1 | |
Note:3A#..AL2# Production:1984-08 – 1988-01 Fitment:Matches · model | |||
| 90987-01003 | RELAY, LIGHT CONTROL | 2 | |
Note:AL2# Production:1982-08 – 1984-08 Fitment:Matches · model | |||
| 90987-02002 | RELAY, LIGHT CONTROL | 1 | |
Note:AL2# Production:1984-08 – 1988-01 Replacements:90987-02004 (fitment: unknown) Spec:TAIL LAMP Fitment:Matches · model | |||
| 90987-02006 | RELAY, LIGHT CONTROL | 1 | |
Note:AL2# Production:1984-08 – 1988-01 Spec:HEADLAMP Fitment:Matches · model | |||
| 90987-03001 | RELAY, COOLING FAN | 1 | |
Note:AL2# Production:1982-08 – 1988-01 Fitment:Matches · model | |||
| 90987-01003 | RELAY ASSY, COOLER | 1 | |
Note:AL2#..(3FC,5F,6F)..USA Production:1982-08 – 1984-08 Fitment:Matches · model | |||
| 90987-01003 | RELAY ASSY, COOLER | 1 | |
Note:AL21..STD..CND..3AC;AL2#..(3FC,5F,6F)..CND Production:1983-11 – 1984-08 Fitment:Matches · model | |||
| 90987-02004 | RELAY ASSY, COOLER | 1 | |
Note:AL2#..(3FC,5F,6F)..USA Production:1984-08 – 1988-01 Fitment:Matches · model | |||
| 90987-02004 | RELAY ASSY, COOLER | 1 | |
Note:AL21..3A;AL2#..WG..CND Production:1984-08 – 1988-01 Fitment:Matches · model | |||
| 90982-09002 | FUSE, FUSE BLOCK | 1 | |
Note:AL2# Production:1982-08 – 1988-01 Spec:10A,10A Fitment:Matches · model | |||
| 90982-09003 | FUSE, FUSE BLOCK | 9 | |
Note:AL2# Production:1982-08 – 1988-01 Spec:15A,15A Fitment:Matches · model | |||
| 90982-09004 | FUSE, FUSE BLOCK | 2 | |
Note:AL2# Production:1982-08 – 1988-01 Spec:20A,YELLOW,20A Fitment:Matches · model | |||
| 90982-09005 | FUSE, FUSE BLOCK | 7 | |
Note:AL2# Production:1982-08 – 1988-01 Spec:7.5A,7.5A Fitment:Matches · model | |||
| 82661-16070 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:AL2# Production:1982-08 – 1984-08 Fitment:Matches · model | |||
| 82661-16110 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:AL2# Production:1984-08 – 1988-01 Fitment:Matches · model | |||
| 82616-12010 | PULLER, FUSE | 1 | |
Note:AL2# Production:1982-08 – 1988-01 Fitment:Matches · model | |||
| 85999-16030 | BRACKET, COMBINATION RELAY | 1 | |
Note:AL2# Production:1982-08 – 1988-01 Fitment:Matches · model | |||
| 82711-16230 | standard | — | |
Fitment:Matches · model | |||
| 90461-08312 | standard | — | |
Fitment:Matches · model | |||
| 82711-16280 | standard | — | |
Fitment:Matches · model | |||
| 90461-06102 | standard | — | |
Fitment:Matches · model | |||
| 90461-08359 | standard | — | |
Fitment:Matches · model | |||
| 90430-18007 | standard | — | |
Replacements:90430-18008 (fitment: unknown) Fitment:Matches · model | |||
| 90301-11001 | standard | — | |
Fitment:Matches · model | |||
| 90301-23001 | standard | — | |
Fitment:Matches · model | |||
| 91651-40825 | standard | — | |
Fitment:Matches · model | |||
| 90119-06122 | standard | — | |
Fitment:Matches · model | |||
| 91611-60616 | standard | — | |
Replacements:91611-B0616 (fitment: unknown) Fitment:Matches · model | |||
| 91611-60612 | standard | — | |
Replacements:91611-G0612 (fitment: unknown) Fitment:Matches · model | |||
| 91651-40612 | standard | — | |
Fitment:Matches · model | |||
| 82711-16250 | standard | — | |
Fitment:Matches · model | |||
| 90179-08059 | standard | — | |
Replacements:90179-08101 (fitment: unknown) Fitment:Matches · model | |||
| 90467-06017 | standard | — | |
Fitment:Matches · model | |||
| 90467-11021 | standard | — | |
Fitment:Matches · model | |||
| 91656-40616 | standard | — | |
Replacements:91651-60614 (fitment: unknown) Fitment:Matches · model | |||

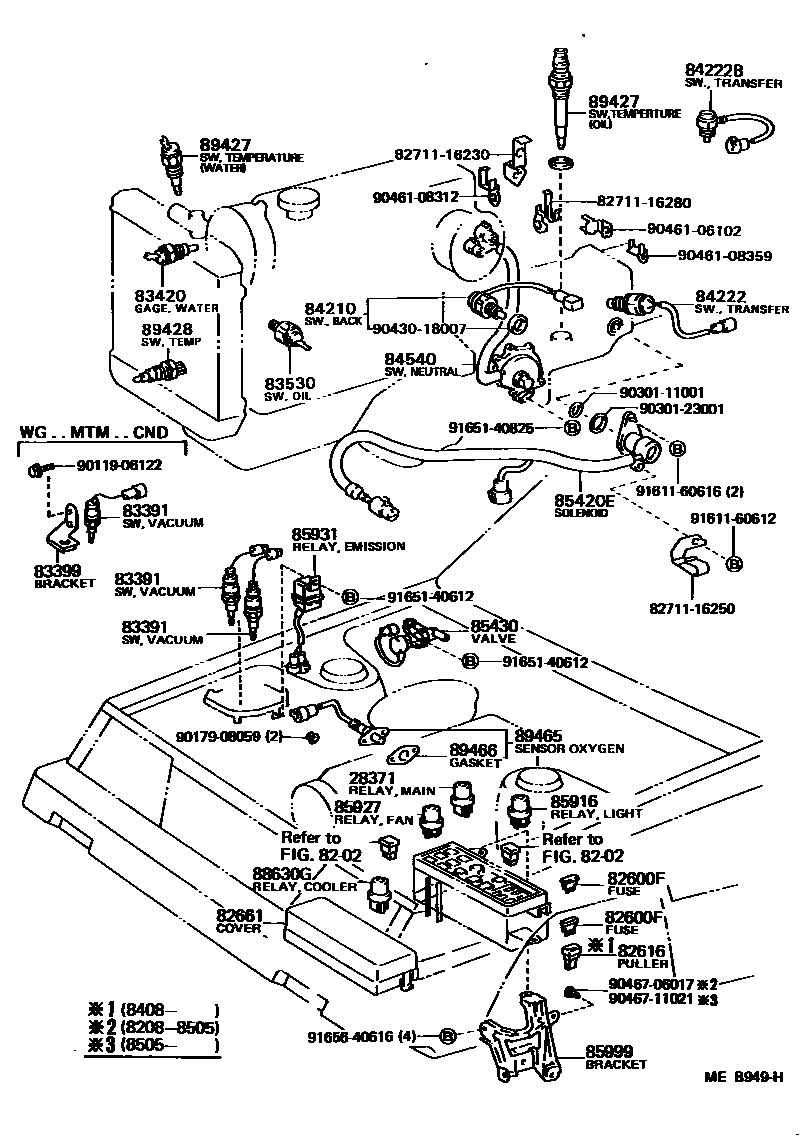

Diagram
52 parts
