Toyota Tercel — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84340-32010 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AL2# Production:1982-08 – 1985-06 Replacements:84340-30030 (fitment: unknown) Fitment:Matches · model | |||
| 84340-30030 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AL2# Production:1985-06 – 1988-01 Spec:MATSUSHITA Fitment:Matches · model | |||
| 84340-32010 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AL2# Production:1985-06 – 1988-01 Replacements:84340-30030 (fitment: unknown) Spec:TOKAIRIKA Fitment:Matches · model | |||
| 84520-16010 | SWITCH ASSY, CLUTCH START | 1 | |
Note:AL2#..MTM Production:1985-08 – 1988-01 Replacements:84520-16020 (fitment: unknown) Fitment:Matches · model | |||
| 84550-24010 | SWITCH ASSY, BRAKE WARNING TEST | 1 | |
Note:AL2# Production:1982-08 – 1984-08 Fitment:Matches · model | |||
| 84550-16010 | SWITCH ASSY, BRAKE WARNING TEST | 1 | |
Note:AL2# Production:1984-08 – 1988-01 Fitment:Matches · model | |||
| 83320-19615 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AL21..STD Production:1982-08 – 1982-12 Fitment:Matches · model | |||
| 83320-19695 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AL21..STD Production:1982-12 – 1986-08 Fitment:Matches · model | |||
| 84231-20080 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AL2# Production:1982-08 – 1988-01 Replacements:84231-28020 (fitment: unknown) Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84234 | — |
| 84234-22010 | CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | 2 | |
Note:AL2# Production:1982-08 – 1988-01 Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84234B | — |
| 84231-16021 | SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | 1 | |
Note:AL21..SED Production:1982-08 – 1986-08 Fitment:Matches · model | |||
| 94120-41000 | standard | — | |
Fitment:Matches · model | |||
| 90480-26043 | standard | — | |
Fitment:Matches · model | |||
| 93315-14012 | standard | — | |
Fitment:Matches · model | |||
| 90159-40155 | standard | — | |
Fitment:Matches · model | |||
| 91651-40610 | standard | — | |
Fitment:Matches · model | |||

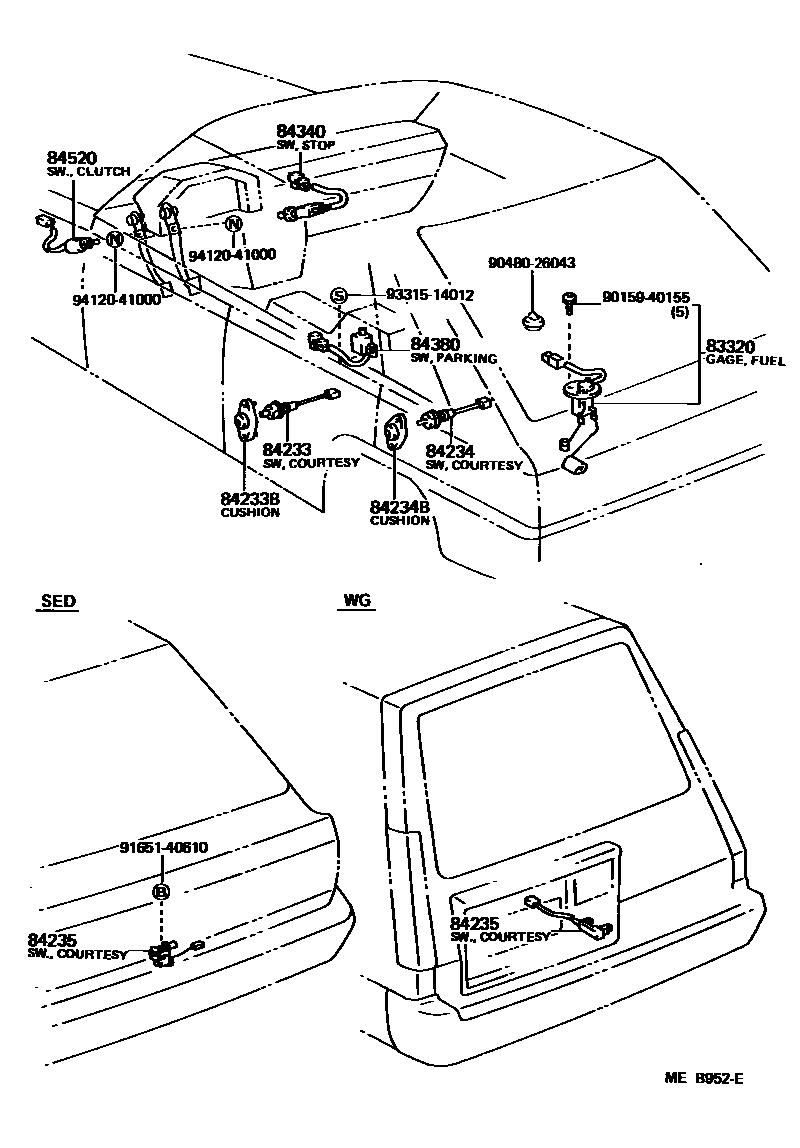

Diagram
16 parts
