Toyota COROLLA-ALTIS-SED-WG 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 28610 | — |
| — | Part does not apply to this vehicle configuration. | 83390 | — |
| 89438-33010 | SWITCH, POWER STEERING OIL PRESSURE | 1 | |
Note:ZZE12#..ARL,GCC,GEN Production:2004-04 – 2007-08 | |||
| 82662-12240 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| — | Part does not apply to this vehicle configuration. | 89448A | — |
| 85928-12010 | RESISTOR, COOLING FAN | 1 | |
Note:NZE12#,ZZE12#..ARL,GCC,GEN Production:2004-04 – 2007-08 | |||
| 82741-12020 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:NZE12#,ZZE12#..GCC,GEN Production:2004-04 – 2007-08 | |||
| 82616-20010 | PULLER, FUSE | 1 | |
Note:CE120,NZE12#,ZZE12#..ARL,GCC,GEN Production:2004-04 – … | |||
| 82663-12010 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:NZE12#,ZZE12#..GCC,GEN Production:2004-04 – 2007-08 | |||
| 90987-02028 | RELAY, MAGNET-CLUTCH | 1 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| 90982-09007 | FUSE, FUSE BLOCK | 1 | |
Note:CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09008 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:7.5A,MINI FUSE,BRN | |||
| 90982-09009 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09010 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09012 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:25A,MINI FUSE | |||
| 90982-09013 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN Production:2004-04 – … Spec:30A,MINI FUSE,GRN | |||
| 90987-04004 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:CE120,NZE12#,ZZE12#..ARL,GCC,GEN Production:2004-04 – 2007-08 | |||
| 90987-02020 | RELAY, COOLING FAN | 1 | |
Note:CE120,NZE12#,ZZE12#..ARL,GCC,GEN Production:2004-04 – … Replacements:90987-02027 (fitment: unknown) Spec:PART NUMBER LABEL=90987-02020 | |||
| — | Part does not apply to this vehicle configuration. | 89654 | — |
| 90987-02020 | RELAY ASSY, HORN | 1 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85927B | — |
| — | Part does not apply to this vehicle configuration. | 82661 | — |
| — | Part does not apply to this vehicle configuration. | 82742 | — |
| — | Part does not apply to this vehicle configuration. | 82663A | — |
| — | Part does not apply to this vehicle configuration. | 82662B | — |
| — | Part does not apply to this vehicle configuration. | 85916P | — |
| — | Part does not apply to this vehicle configuration. | 85916U | — |
| 90119-T0038 | standard | — | |
| 90301-11021 | standard | — | |
| 90179-06292 | standard | — | |
| 91631-J0612 | standard | — | |
| 90119-T0184 | standard | — | |
Replacements:91651-B0618 (fitment: unknown) | |||
| 91651-B0618 | standard | — | |
| 91651-B0614 | standard | — | |

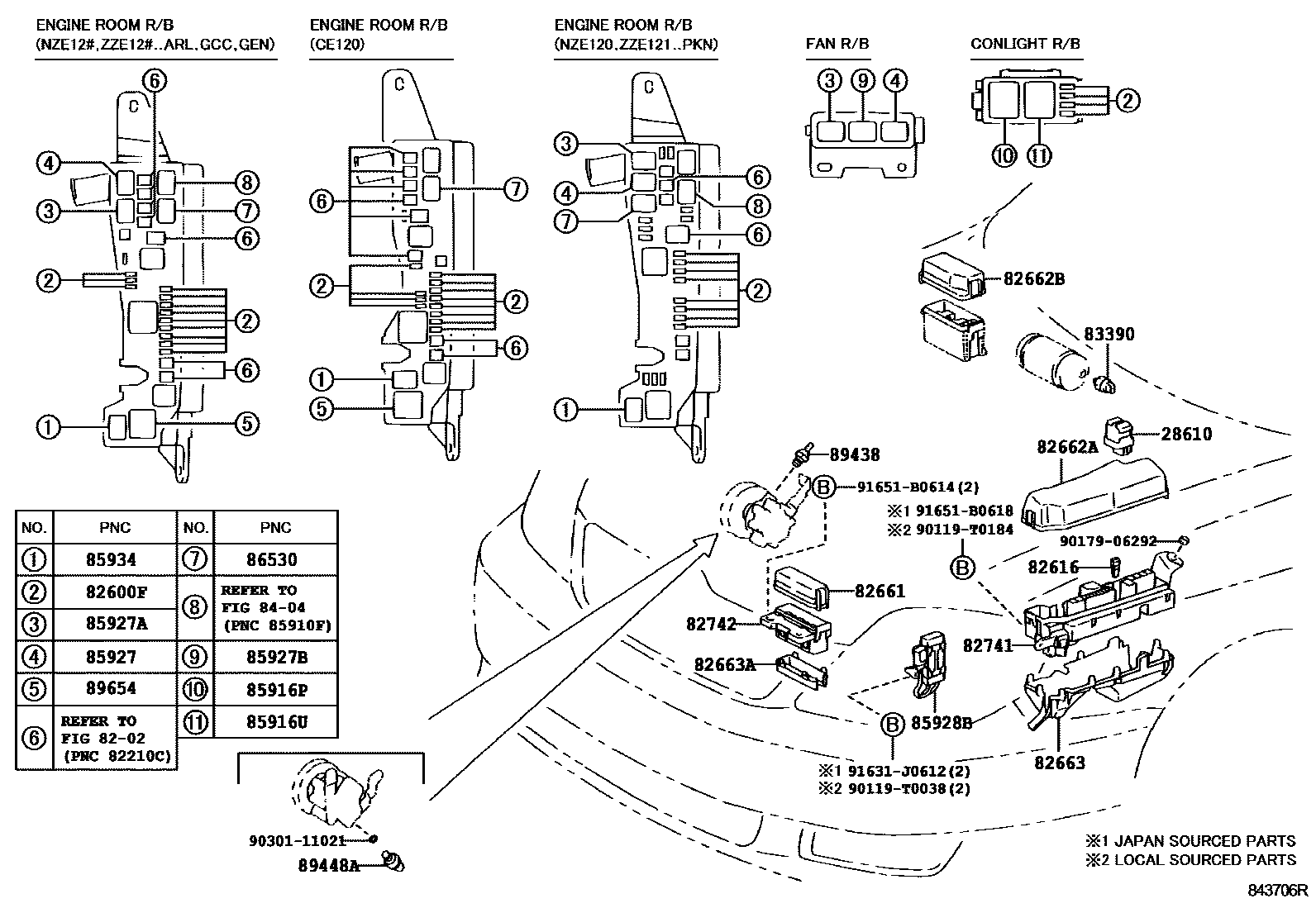

Diagram
23 parts
