Toyota COROLLA-ALTIS-SED-WG 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84231-12130 | SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM) | 1 | |
Note:CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) Production:2004-04 – 2007-08 Replacements:84231-12090 (fitment: unknown) | |||
| 83320-12700 | GAGE ASSY, FUEL SENDER | 1 | |
Note:NZE12#,ZZE12#..GCC,GEN Production:2004-04 – 2007-08 | |||
| 84810-12080 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| 84231-60070 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| 84810-12080 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| 84820-12480 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:CE120,NZE120,ZZE12#..LHD Production:2004-04 – … | |||
| — | Part does not apply to this vehicle configuration. | 89407 | — |
| 84231-53010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN Production:2004-04 – … | |||
| 93269-15008 | standard | — | |
| 48966-68010 | standard | — | |
| 90109-06296 | standard | — | |
| 90164-40103 | standard | — | |
| 93319-14008 | standard | — | |
| 94150-10641 | standard | — | |
| 91631-B0820 | standard | — | |

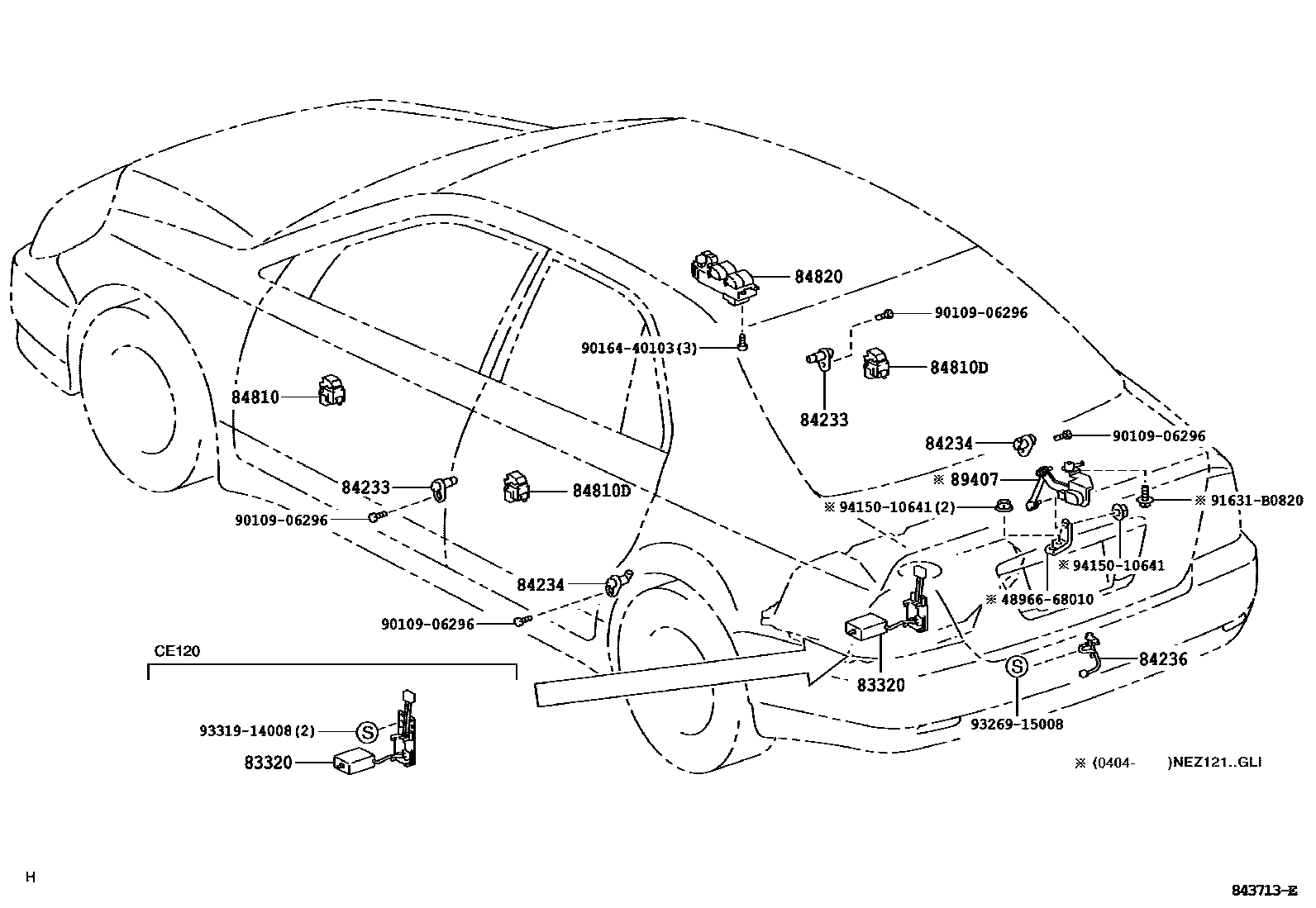

Diagram
14 parts
