Toyota RAV4 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:ASA4#,ZSA4# Production:2015-10 – 2018-12 | |||
| 89465-42210 | SENSOR, OXYGEN | 1 | |
Note:ZSA4# Production:2015-10 – 2018-12 | |||
| 83530-28020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:ASA4#,ZSA4# Production:2015-10 – 2018-12 | |||
| 89467-52060 | SENSOR, AIR FUEL RATIO | 1 | |
Note:ZSA4# Production:2015-10 – 2018-12 | |||
| — | Part does not apply to this vehicle configuration. | 84210 | — |
| 84540-28030 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:ZSA4#..A Production:2015-10 – 2018-12 | |||
| 91551-80835 | standard | — | |
| 90179-06219 | standard | — | |
| 91553-81014 | standard | — | |
| 82715-42E50 | standard | — | |
| 82715-42E60 | standard | — | |
| 82715-42C80 | standard | — | |
| 90430-18008 | standard | — | |
| 91651-40625 | standard | — | |

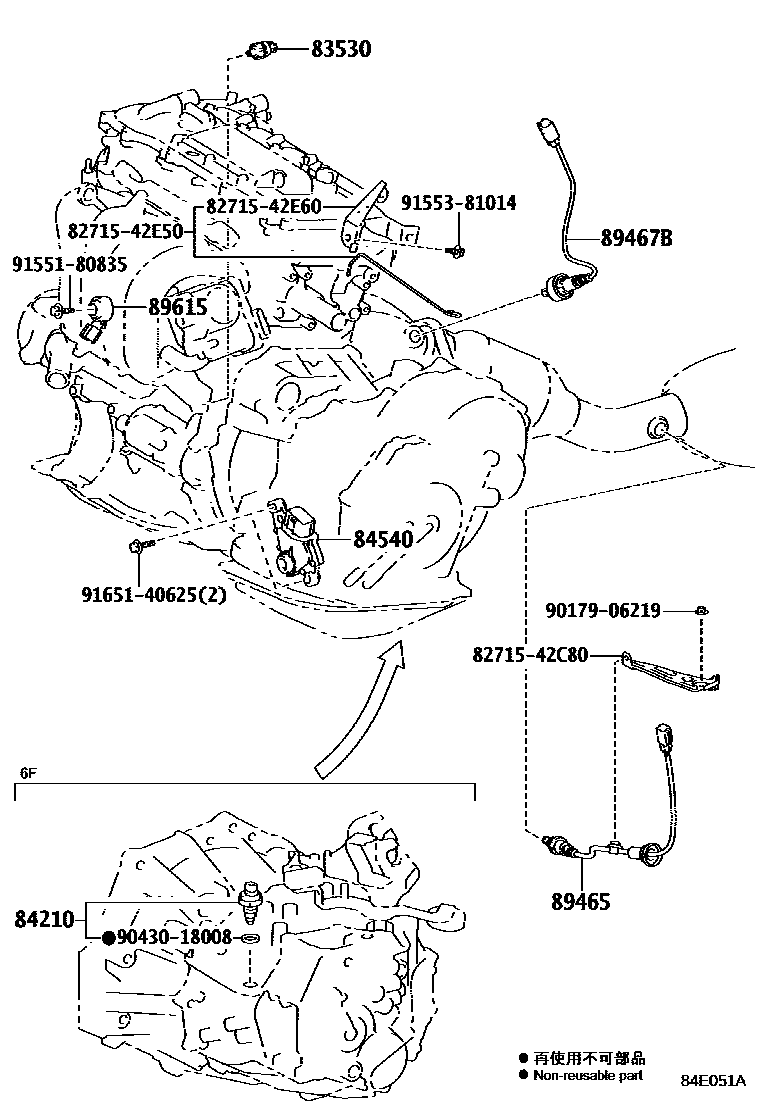

Diagram
13 parts
