Toyota RAV4 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84450 | — |
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| — | Part does not apply to this vehicle configuration. | 84052 | — |
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84140-33250 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:ASA4#,ZSA42..LHD..(6FC,A)..G..GEN Production:2015-10 – 2018-12 Spec:TAIWAN SPEC | |||
| 84250-42240-C1 | SWITCH ASSY, STEERING PAD | 1 | |
Note:ASA4#,ZSA42..LHD..(6FC,A)..G..GEN Production:2015-10 – 2018-12 Spec:TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH&AUDIO-6SPEAKER(AUDIO LESS),BLACK,TRIM1#,2#,3#,4# | |||
| 84308-12011 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:ALA49,ASA4#,AVA4#,ZSA4# Production:2015-10 – 2018-12 Replacements:84308-47040 (fitment: unknown) | |||
| 84307-12100 | CABLE SUB-ASSY, SPIRAL W/SENSOR | 1 | |
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12 | |||
| 84652-1A860 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:ALA49,ASA4#,ZSA4#..LHD Production:2015-10 – 2018-12 Replacements:84652-47190 (fitment: unknown) | |||
| 89650-42241 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:ASA4#,ZSA4#..LHD;ALA49..6F..(G,M)..GEN Production:2016-08 – 2018-12 | |||
| 8924B-12010 | SENSOR, STEERING | 1 | |
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12 | |||
| 90159-50199 | standard | — | |
| 90168-40129 | standard | — | |

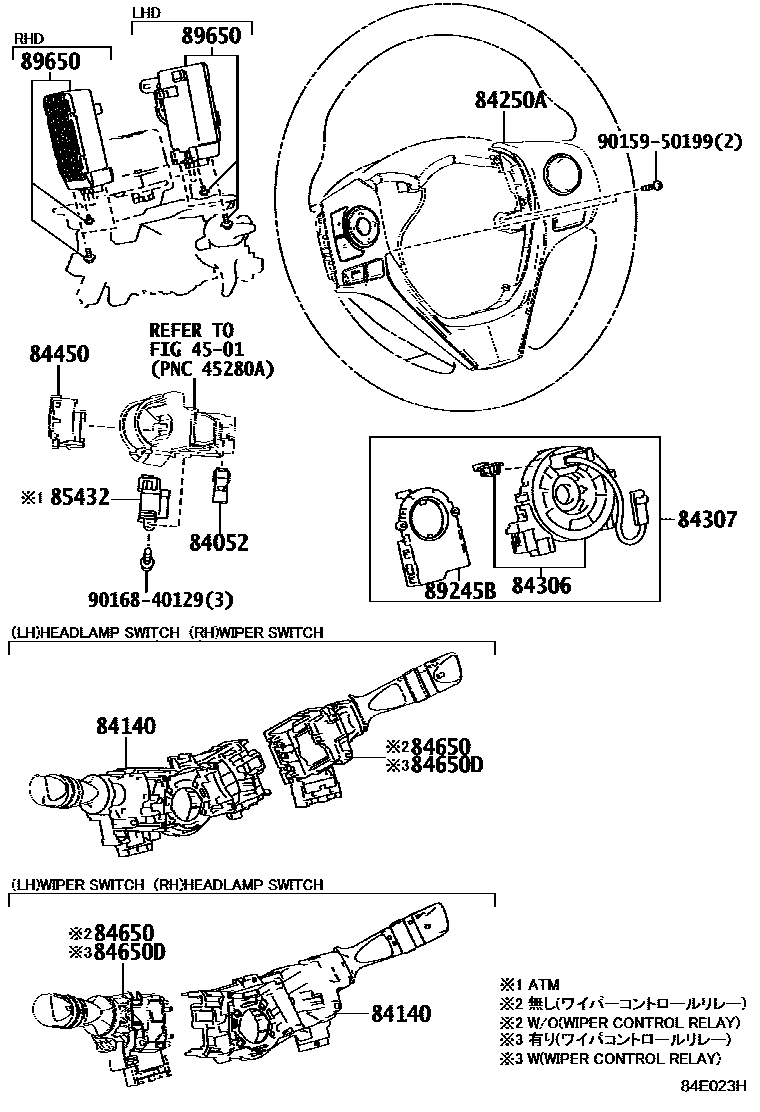

Diagram
9 parts
