Toyota RAV4-SFTM 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 89615-0E010 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 89491-06011 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 89451-10010 | SENSOR, SHIFT LEVER POSITION | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| — | Part does not apply to this vehicle configuration. | 89422N | — |
| 89467-0R190 | SENSOR, AIR FUEL RATIO | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 8946A-0E030 | BRACKET, EXHAUST SENSOR CLAMP | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 89425-0E040 | SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 89425-0E030 | SENSOR, EXHAUST GAS TEMPERATURE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 89467-0R170 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 89481-K0010 | SENSOR, DIFFERENTIAL PRESSURE | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 90468-14044 | standard | — | |
| 82715-07160 | standard | — | |
| 90119-C0098 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 91551-80825 | standard | — | |
| 91551-80835 | standard | — | |
| 90105-C0048 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 90468-15007 | standard | — | |
| 90119-06A23 | standard | — | |
| 90119-C0619 | standard | — | |
| 94151-80600 | standard | — | |
| 90178-C0048 | standard | — | |
| 8946A-0E120 | standard | — | |
| 8946A-0R090 | standard | — | |
| 90119-06A14 | standard | — | |
| 82715-48V40 | standard | — | |
| 8946A-0R030 | standard | — | |
| 82715-0R810 | standard | — | |
| 90119-C0580 | standard | — | |

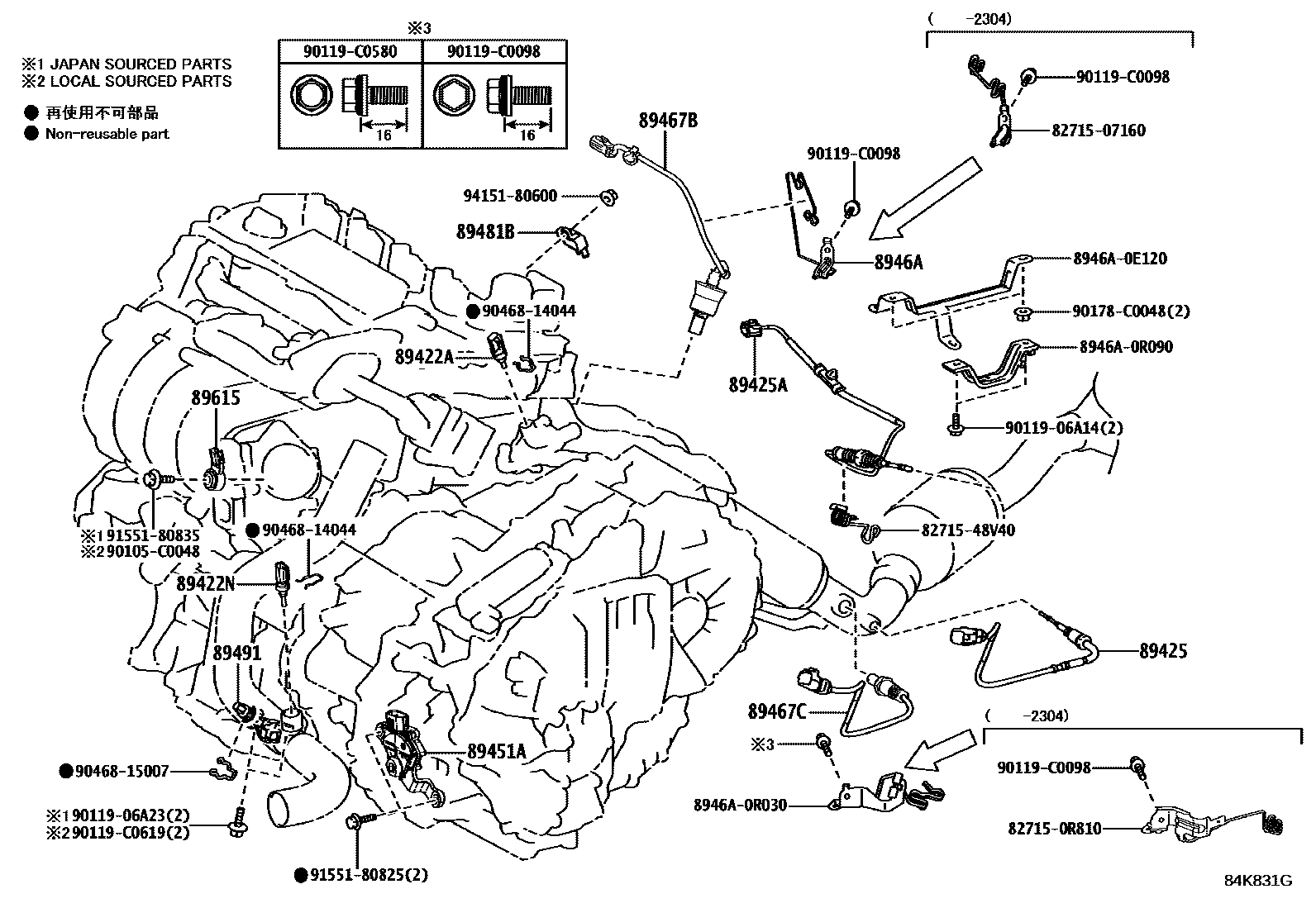

Diagram
28 parts
