Toyota RAV4-SFTM 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82610-48050 | BLOCK ASSY, FUSE | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 82610-42090 | BLOCK ASSY, FUSE | 1 | |
Note:AXAL5#..M Production:2024-09 – … Spec:FTRD INTERIOR PKG HI | |||
| 82660-42100 | BLOCK ASSY, RELAY, ENGINE ROOM | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 82660-42110 | BLOCK ASSY, RELAY | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 82663-42220 | COVER, RELAY BLOCK LOWER, NO.4 | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 82662-0R311 | COVER, RELAY BLOCK, UPPER, NO.2 | 1 | |
Note:AXAL5#..M Production:2024-09 – … Spec:FTRD INTERIOR PKG HI | |||
| 82663-0R110 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 82663-0R120 | COVER, RELAY BLOCK, LOWER, NO.2 | 1 | |
Note:AXAL5#..M Production:2024-09 – … Spec:FTRD INTERIOR PKG HI | |||
| 82740-0R070 | BLOCK ASSY, ENGINE ROOM RELAY | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 82740-0R080 | BLOCK ASSY, ENGINE ROOM RELAY, NO.2 | 1 | |
Note:AXAL5#..M Production:2024-09 – … Spec:FTRD INTERIOR PKG HI | |||
| 90982-09019 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-08283 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,TERM.:FEMALE,PNK | |||
| 90982-08285 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A,FEMALE,RED,32VDC | |||
| 90982-08298 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,TERMINAL:FEMALE | |||
| 90982-08300 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A-30A-30A,FEMALE | |||
| 90982-08302 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A-30A-50A,FEMALE | |||
| 90987-02027 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:AXAL5# Production:2024-09 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:AXAL5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-T2005 | RELAY, RUNNING LIGHT | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, HEADLAMP DIMMER | 1 | |
Note:AXAL5#,MXAA52..M Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) Spec:FTRD INTERIOR PKG HI | |||
| 90987-T2005 | RELAY, WINDSHIELD WIPER | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-02027 | RELAY, ELECTRONIC DRIVER UNIT | 1 | |
Note:AXAL5# Production:2024-09 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ELECTRONIC DRIVER UNIT | 1 | |
Note:AXAL5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | 1 | |
Note:AXAL5# Production:2024-09 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | 1 | |
Note:AXAL5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-T2005 | RELAY ASSY, HORN | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 87989 | — |
| 90987-02027 | RELAY, VVT | 1 | |
Note:AXAL5# Production:2024-09 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, VVT | 1 | |
Note:AXAL5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-T2005 | RELAY, HYBRID WATER PUMP | 1 | |
Note:AXAL5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, FOG LAMP | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85912 | — |
| 90987-02025 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:AXAL5# Production:2024-09 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2004 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:AXAL5# Production:2024-09 – … Spec:(L) Spec Note:(Local made) | |||
| 82620-48280 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 90987-T2005 | RELAY, HEADLAMP | 2 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 82662-0R302 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,MINI FUSE,GRN | |||
| 82662-42730 | COVER, RELAY BLOCK, UPPER, NO.7 | 1 | |
Note:AXAL5# Production:2024-09 – … | |||
| — | Part does not apply to this vehicle configuration. | 82661 | — |

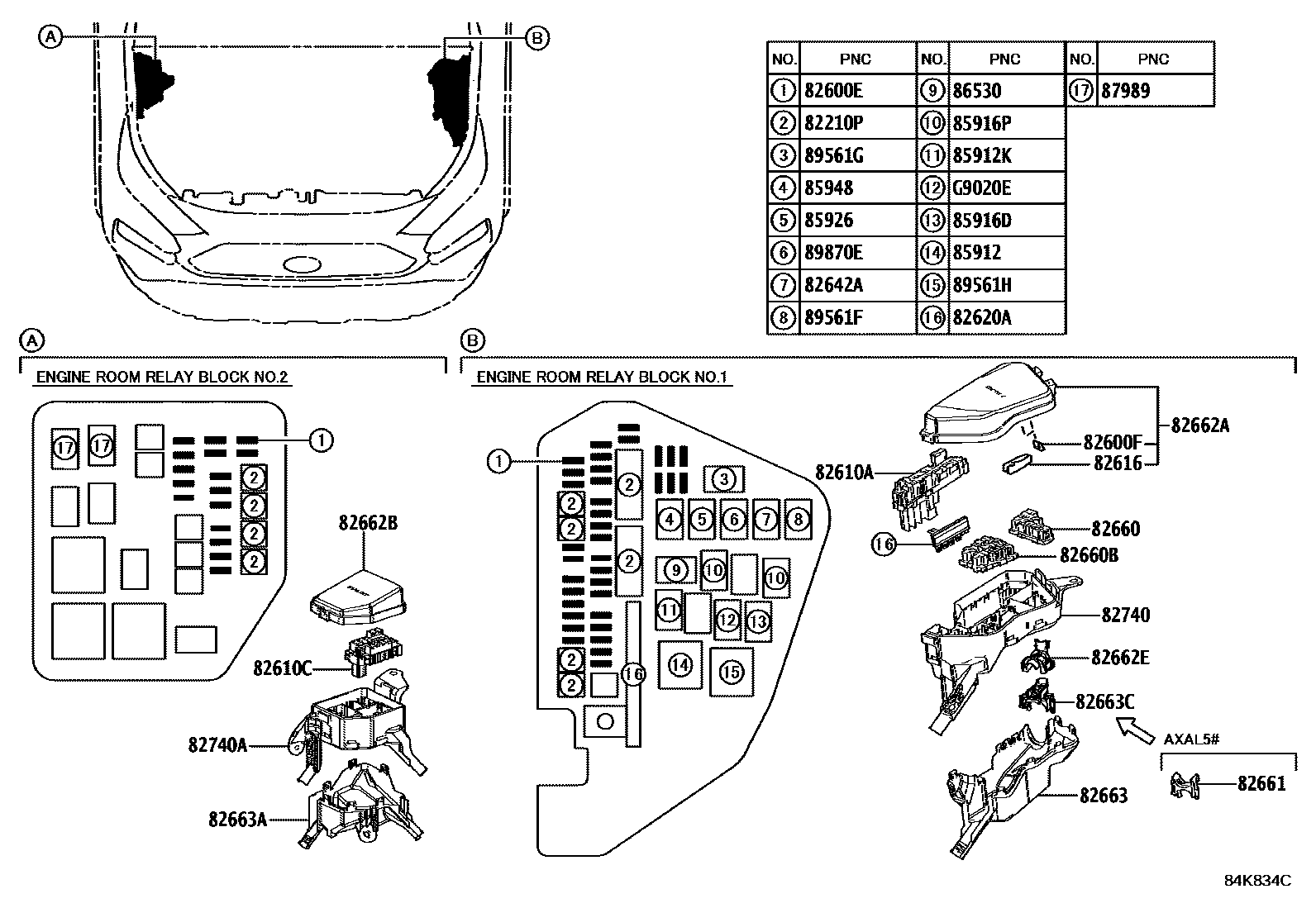

Diagram
44 parts
