Toyota Camry-Hybrid-China 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 84540-33021 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:AXVA70 Production:2022-02 – … | |||
| 89467-0R190 | SENSOR, AIR FUEL RATIO | 1 | |
Note:AXVA70,AXVH71 Production:2023-04 – … | |||
| 89491-33052 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:AXVA70,AXVH71 Production:2022-05 – … | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 89429F | — |
| — | Part does not apply to this vehicle configuration. | 83520 | — |
| — | Part does not apply to this vehicle configuration. | 89439 | — |
| 89481-K0010 | SENSOR, DIFFERENTIAL PRESSURE | 1 | |
Note:AXVA70,AXVH71 Production:2023-04 – … | |||
| 89467-06300 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXVA70,AXVH71 Production:2023-04 – … | |||
| 8946A-06050 | BRACKET, EXHAUST SENSOR CLAMP | 1 | |
Note:AXVA70,AXVH71 Production:2023-04 – … | |||
| 89425-06030 | SENSOR, EXHAUST GAS TEMPERATURE | 1 | |
Note:AXVA70,AXVH71 Production:2023-04 – … | |||
| 8946A-06020 | BRACKET, EXHAUST SENSOR CLAMP, NO.2 | 1 | |
Note:AXVA70,AXVH71 Production:2023-04 – … | |||
| 89425-06040 | SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | 1 | |
Note:AXVA70,AXVH71 Production:2023-04 – … | |||
| 90119-C0619 | standard | — | |
| 90119-06A23 | standard | — | |
| 91651-40625 | standard | — | |
| 90468-14044 | standard | — | |
| 90468-15007 | standard | — | |
| 91551-80835 | standard | — | |
| 90105-C0048 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 90105-C0130 | standard | — | |
| 90119-C0098 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 90430-12031 | standard | — | |
| 94151-80600 | standard | — | |
| 8946A-0E010 | standard | — | |
| 90178-C0032 | standard | — | |
| 82715-06X20 | standard | — | |
| 91671-80616 | standard | — | |
| 8946A-06040 | standard | — | |
| 90178-C0048 | standard | — | |

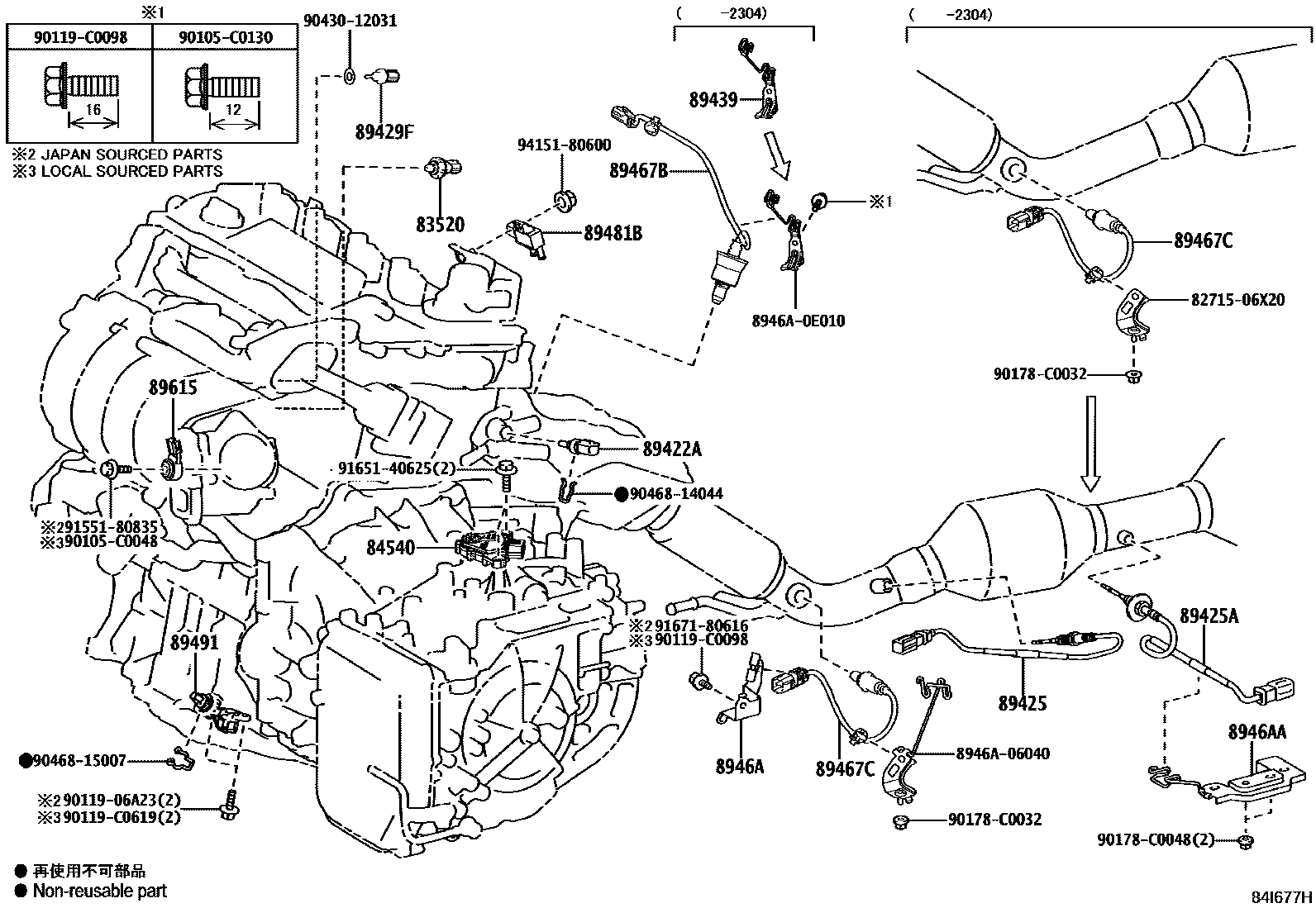

Diagram
28 parts
