Toyota Camry-Hybrid-China 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 84810-F4060 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 82600F | — |
| 83320-06230 | GAGE ASSY, FUEL SENDER | 1 | |
Note:AXVA70,MXVA71 Production:2022-10 – … | |||
| — | Part does not apply to this vehicle configuration. | 88162 | — |
| — | Part does not apply to this vehicle configuration. | 89747F | — |
| — | Part does not apply to this vehicle configuration. | 88172 | — |
| — | Part does not apply to this vehicle configuration. | 89430B | — |
| — | Part does not apply to this vehicle configuration. | 89430A | — |
| 84810-F4060 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 84872-06241 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXVA70,AXVH71,MXVA71..G,S Production:2023-10 – … | |||
| — | Part does not apply to this vehicle configuration. | 84927 | — |
| 84040-0E170 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 89461 | — |
| 28850-F0030 | SENSOR ASSY, BATTERY STATE | 1 | |
Note:A25AFKS,M20CFKS..AXVA70,MXVA71 Production:2021-03 – … | |||
| 28859-F0020 | HOLDER, BATTERY CURRENT SENSOR | 1 | |
Note:A25AFKS,M20CFKS..AXVA70,MXVA71 Production:2021-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 82620B | — |
| — | Part does not apply to this vehicle configuration. | 86210A | — |
| 84945-06030 | SWITCH, LUGGAGE ELECTRICAL KEY | 1 | |
Note:MXVA71..G,S;AXVA70,AXVH71 Production:2021-03 – … | |||
| 90178-C0076 | standard | — | |
| 90182-C0006 | standard | — | |
| 90166-C0005 | standard | — | |
| 90159-60303 | standard | — | |
| 90159-C0006 | standard | — | |
| 90164-C0009 | standard | — | |
| 90189-C0033 | standard | — | |
| 90178-C0049 | standard | — | |
| 90178-C0032 | standard | — | |
| 90189-06197 | standard | — | |
| 90159-60621 | standard | — | |

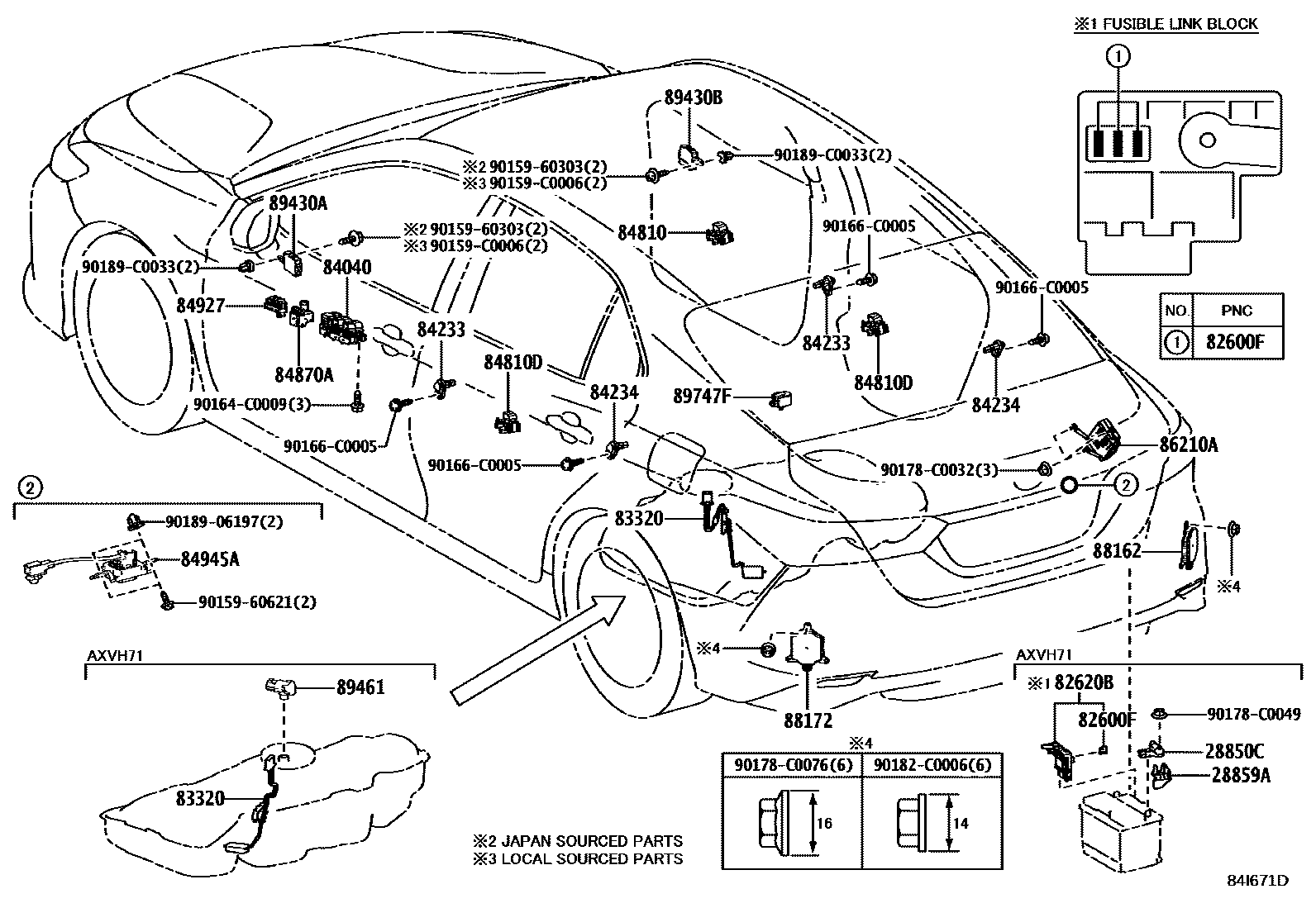

Diagram
21 parts
