Open RegionYearModelModelCode Details
General 2018 FORTUNER GUN165L-SDFLHU
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: INDONESIA PRODUCED SUV WAGON Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: VIETNAM Color Code: 1D6 Trim Code: FN41 Production: 201601-202007 Model Short: GUN165L-SDFLHU Region: OTHER Native Region: GR

Toyota Fortuner 2018 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 84470A —
— Part does not apply to this vehicle configuration. 84725A —
84988-0K060 SWITCH, VSC OFF 1
Note:GUN165..IDNSU..(PH,VN);GUN155..(H,S)..(GEN,IDN);TGN166..(M,S)..(GEN,IDN,PH);GUN156,165,KUN156..RHD..IDNSU..(M,S) Production:2016-01 – 2020-07 Spec:VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
— Part does not apply to this vehicle configuration. 84746 —
84970-0K030 SWITCH ASSY, COMBINATION 1
Note:GGN155,165,GUN15#,165,TGN156,166..IDNSU Production:2016-01 – 2020-07

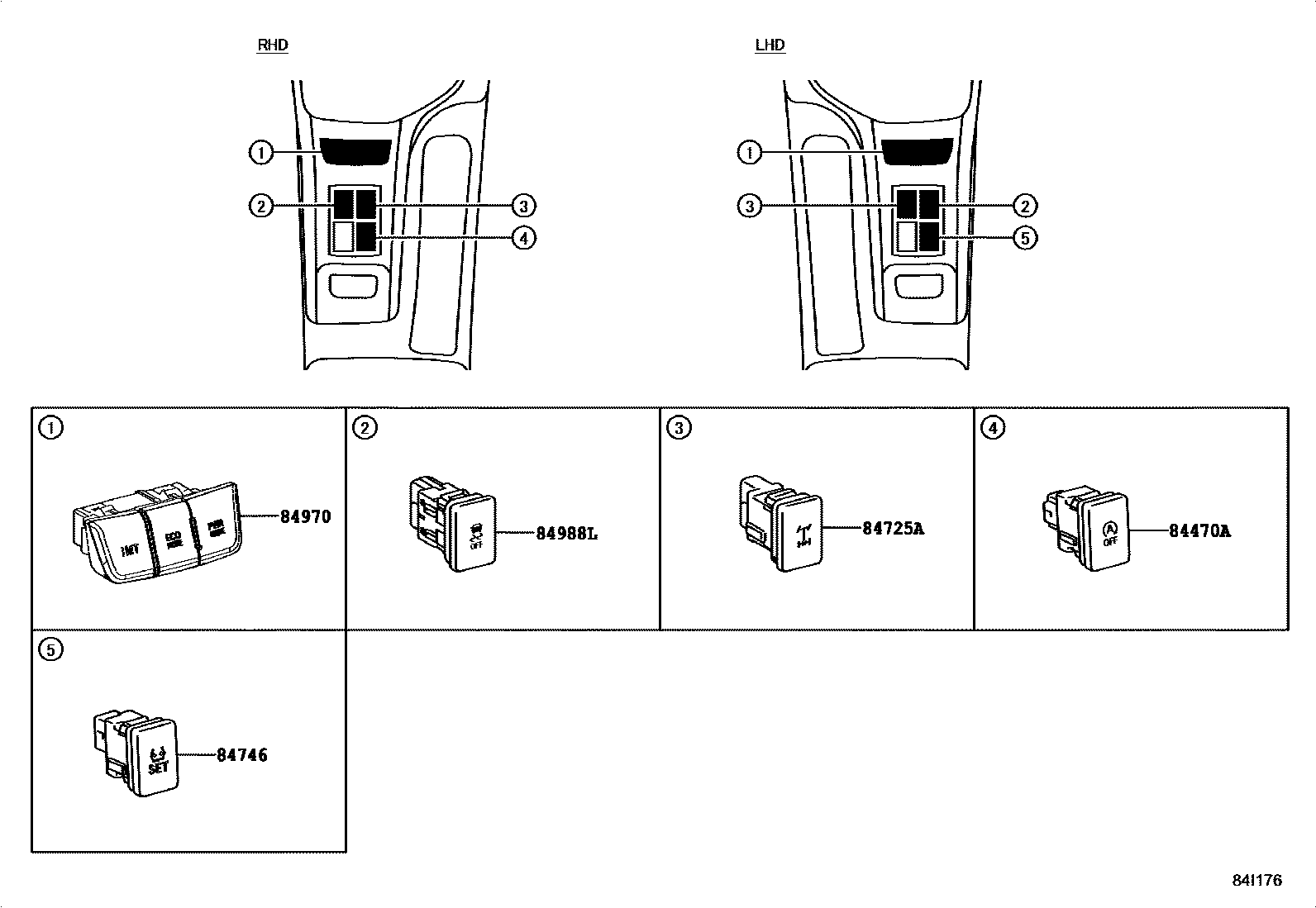

Diagram

2 parts
Toyota Fortuner 2018 — Switch & Relay & Computer
