Toyota HILUX-DOUBLE-CAB 2021 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84052 | — |
| — | Part does not apply to this vehicle configuration. | 84450 | — |
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| 84307-0K090 | CABLE SUB-ASSY, SPIRAL W/SENSOR | 1 | |
Note:GUN135..H,S;GUN125..RHD..(SA,TH);GUN125..LHD..(H,S)..SA;GUN125,135,TGN136..L..LA;GUN135..RHD..L..(GEN,SA);GGN125,GUN126,136..GCC,GEN,LA,PH,SA,TH,VN;GUN122,125,TGN121,126..(H,S)..(GCC,GEN,IDN,LA,VN) Production:2021-08 – 2021-10 Replacements:84307-0K091 (fitment: unknown) | |||
| 84308-0D020 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:GUN125..LHD..(H,S)..SA;GUN125..RHD..(KEN,SA,TH);GUN135..(SAP,THP)..(H,S);GUN135..RHD..L..(GEN,SA);GUN125,135,TGN136..(GHAP,THP)..L..(GHA,LA);GUN125,TGN126..(GHAP,THP)..(H,S)..(GCC,GEN,GHA,IDN,LA,VN);GGN125,GUN122,136,TGN121..(SAP,THP)..(H,S)..(GCC,GEN,LA,SA);GUN126..(GHAP,KENP,MMRP,SAP,THP)..(GCC,GEN,GHA,KEN,LA,MMR,PH,SA,TH,VN) Production:2021-08 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84652-0K280 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:TGN126..H..GCC;GUN135..6F..H..PH;GUN135..LHD..THP..6FC;GUN126..LHD..(MMRP,THP)..(H,S);GUN135..THP..6F..(H,S)..(GEN,LA);GGN125,GUN122,125,136,TGN121..THP..H..(GCC,LA);GUN122,125,TGN126..LHD..THP..(H,S)..(GEN,LA,VN) Production:2021-08 – 2022-10 | |||
| 84140-0K450 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:GGN125,GUN125,126,TGN126..H..GCC Production:2021-08 – 2022-08 | |||
| 8924B-0D020 | SENSOR, STEERING | 1 | |
Note:TGN121..ARL,GCC,SA;GUN125..(H,S)..IDN;TGN126..THP..(H,S);GUN135..(SAP,THP)..(H,S);GUN135..RHD..L..(ARL,GEN,SA);GUN126..GHAP,KENP,MMRP,SAP,THP;GUN135,TGN126,136..THP..L..(GCC,LA,VN);GGN125,GUN122,136,TGN120..(SAP,THP)..(ARL,GCC,GEN,LA,SA);GUN125..(GHAP,KENP,SAP,THP)..(ARL,GCC,GEN,GHA,KEN,LA,SA,TH,VN) Production:2021-08 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 84610F | — |
| — | Part does not apply to this vehicle configuration. | 84523 | — |
| 84250-0K310-C2 | SWITCH ASSY, STEERING PAD | 1 | |
Note:GUN136..H..SA;GUN126..LHD..6FC..H..GEN;GUN126..6F..H..(GEN,PH,SA);GUN125,135..6F..H..(GEN,PH);GGN125,GUN135..(SAP,THP)..6FC..H;GUN126..6FC..H..(MMR,PH,SA,TH,VN) Production:2021-08 – 2023-01 Spec:MLM ADVENTURE PACKAGE,BLACK/BLACK METALLIC,TRIM2# | |||
| — | Part does not apply to this vehicle configuration. | 45124A | — |
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) | |||
| 90168-40113 | standard | — | |
| 90159-50199 | standard | — | |

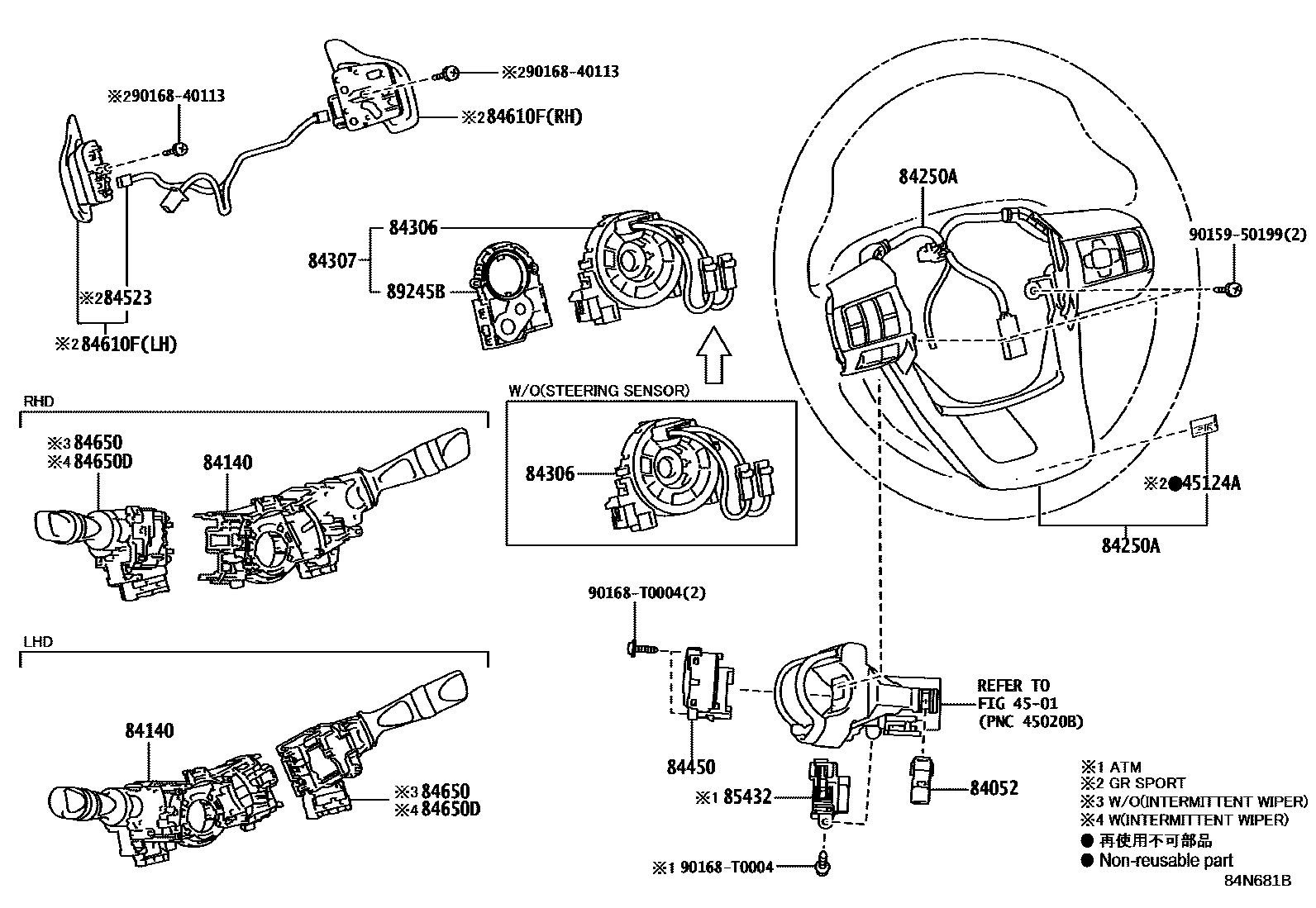

Diagram
9 parts
