Toyota HILUX-DOUBLE-CAB 2021 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0K181 | GAGE ASSY, FUEL SENDER | 1 | |
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03 | |||
| 84040-0K022 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN136,TGN126..(5F,6FC)..H..LA;GGN125,GUN135,TGN128,138..LHD..H;GUN125,126,136..LHD..H..(BZAG,GEN,MMR,PH,TWN,VN) Production:2021-08 – 2022-10 | |||
| 84810-0K080 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN136..6F..H..SA;TGN126..THP..H..LA;GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH);GUN125,126..H..(ARL,GEN,KEN,MMR,PH,TH,TWN,VN) Production:2021-08 – 2023-03 | |||
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..MMRP,SAP,THP Production:2021-08 – 2023-04 | |||
| 84810-0K080 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:GUN136..6F..H..SA;TGN126..THP..H..LA;GGN125,GUN13#..H..(ARL,GCC,GEN,PH,TH);GUN125,126..H..(ARL,GEN,KEN,MMR,PH,TH,TWN,VN) Production:2021-08 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 86247A | — |
| — | Part does not apply to this vehicle configuration. | G9221A | — |
| — | Part does not apply to this vehicle configuration. | 86210A | — |
| 84872-0K040 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:GGN125,GUN126..GCC;GUN125..6F..H..GCC Production:2021-08 – 2022-08 Spec:OUTSIDE REAR VIEW MIRROR-*273(BLACK) & W(*SITL) & W(*FLA) Spec Note:OUTSIDE REAR VIEW MIRROR-*273(ELECTRIC RETRACTABLE,ELECTRIC REMOTO CONTROL DOOR MIRROR)(BLACK) & W(*SITL) & W(*FLA) | |||
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03 | |||
| 90119-06915 | standard | — | |
| 90178-T0018 | standard | — | |
| 90119-T0130 | standard | — | |
Replacements:90119-06915 (fitment: unknown) | |||
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) | |||
| 90164-40103 | standard | — | |
| 90166-70001 | standard | — | |
| 90166-60005 | standard | — | |
| 90166-T0003 | standard | — | |
Replacements:90166-60005 (fitment: unknown) | |||

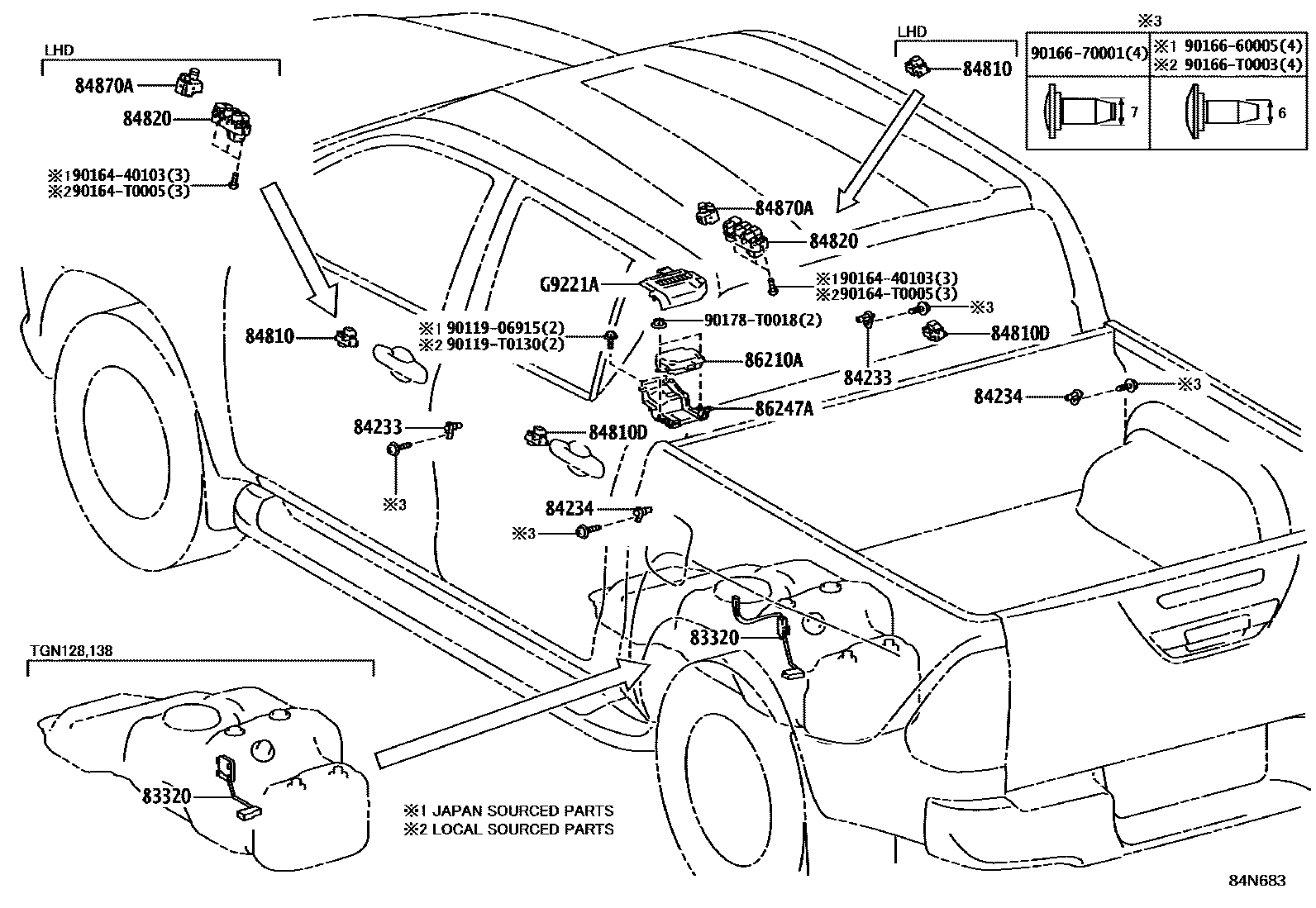

Diagram
15 parts
