Toyota Hilux 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84052-71010 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:KUN15,16..SR;KUN25..THDCB,THSCB;KUN15,25..ANCOM,GCC,LA;KUN15,25..RHD..SCB..SA;KUN16,TGN15..ARL,GCC,SA;TGN26..(SCB,THDCB)..(GEN,SA);TGN16,26..ANCOM,ARL,GCC,LA,TH;KUN25..RHD..(DCB,XTR)..(MA,SA,TH);GGN15,25,KUN10,26,3#,TGN10,11,36..ANCOM,ARL,GCC,GEN,LA,PHL,SA,TH Production:2004-08 – 2008-02 | |||
| 84450-0K010 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2012-02 | |||
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| 84140-0K020 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:KUN16..XTR..TH;KUN25..SCB..MA;KUN16..(DCB,SCB)..DLX;KUN26..(DCB,XTR)..5F..TH;KUN25..RHD..(DCB,SCB,XTR)..(GEN,SA,TH);KUN15,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA);KUN15,36..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);GGN15,25,KUN26,35,LAN15,25,35,TGN15,26..RHD..(DLX,STD)..(ARL,PKN,SA) Production:2004-08 – 2012-02 | |||
| 84306-0K020 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:GGN15,25;KUN25..SR..MA;KUN26..ARL,PHL;TGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN16,TGN16..(DCB,SCB)..5F..ARL;KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN16,TGN36..(DCB,SCB)..SR..(PHL,SA,TH);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,TH) Production:2004-08 – 2008-12 Replacements:84306-0K021 (fitment: unknown) Spec:TYPE C:REFER ILLUST. | |||
| — | Part does not apply to this vehicle configuration. | 84312 | — |
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84652-0K100 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:KUN16..(DCB,SCB)..ARL;KUN15,16,25,TGN16..RHD..SR;GGN15,25,KUN26,36,TGN26..ARL,TH Production:2004-08 – 2008-09 | |||
| — | Part does not apply to this vehicle configuration. | 84250A | — |
| — | Part does not apply to this vehicle configuration. | 84247A | — |
| 90159-T0007 | standard | — | |
Replacements:90159-50199 (fitment: unknown) | |||
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) | |||
| 90159-50199 | standard | — | |

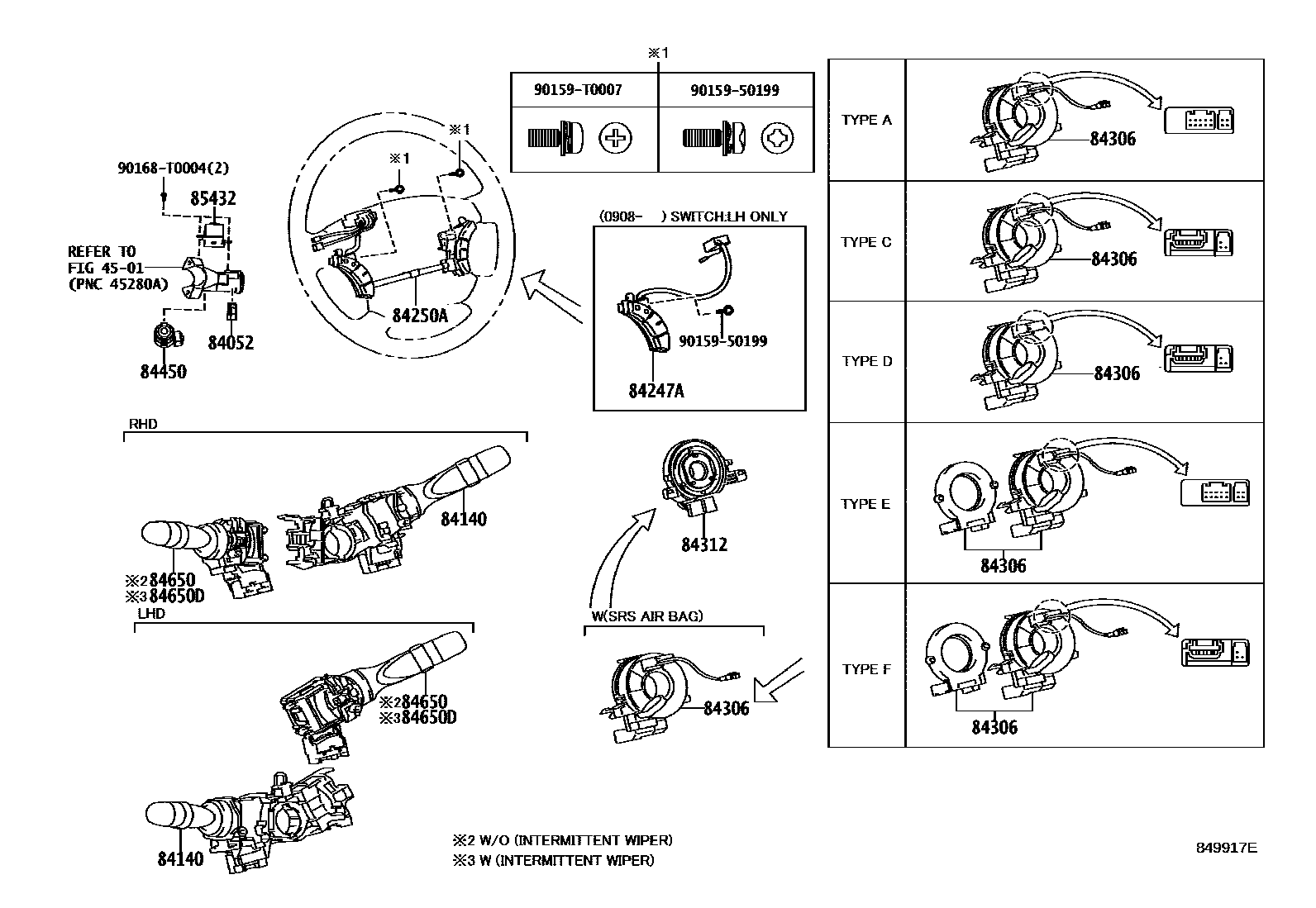

Diagram
8 parts
