Toyota Hilux 2007 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0K040 | GAGE ASSY, FUEL SENDER | 1 | |
Note:KUN16..DCB,SCB;KUN25..SCB..MA;KUN15..PHL..CBU;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN16..(DCB,SCB,XTR)..5F..(ARL,GCC,GEN);GGN15,25,KUN36,LAN15,TGN15,26,36..(DCB,SCB,XTR)..(ARL,GCC,GEN,PHL,PKN,TH) Production:2004-08 – 2012-01 | |||
| 84810-0K010 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GGN15,25;KUN36..XTR;KUN26..4FC..(GEN,LA);KUN16..(DCB,SCB)..ARL;KUN36..5F..SR..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN15,16,25,TGN16,26,36..(DCB,SCB,THDCB,XTR)..SR..(ANCOM,GCC,GEN,MA,PHL,SA,TH) Production:2004-08 – 2008-12 | |||
| 84810-0K010 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:GGN15,25,KUN16..DCB;KUN26..4FC..(GEN,LA);KUN26..DCB..(ARL,PHL,TH);KUN26,36..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN15,25,TGN16,26,36..(DCB,THDCB)..SR..(ANCOM,GCC,GEN,MA,PHL,SA,TH) Production:2004-08 – 2008-12 | |||
| 84820-0K011 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GGN15,25,KUN16,26..DCB..ARL Production:2007-08 – 2008-08 | |||
| 84231-0K020 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2012-02 Replacements:84231-53010 (fitment: unknown) | |||
| 84231-0K020 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:KUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH) Production:2004-08 – 2008-12 Replacements:84231-53010 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84222D | — |
| — | Part does not apply to this vehicle configuration. | 82223F | — |
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) | |||
| 90109-06296 | standard | — | |
| 90430-18008 | standard | — | |

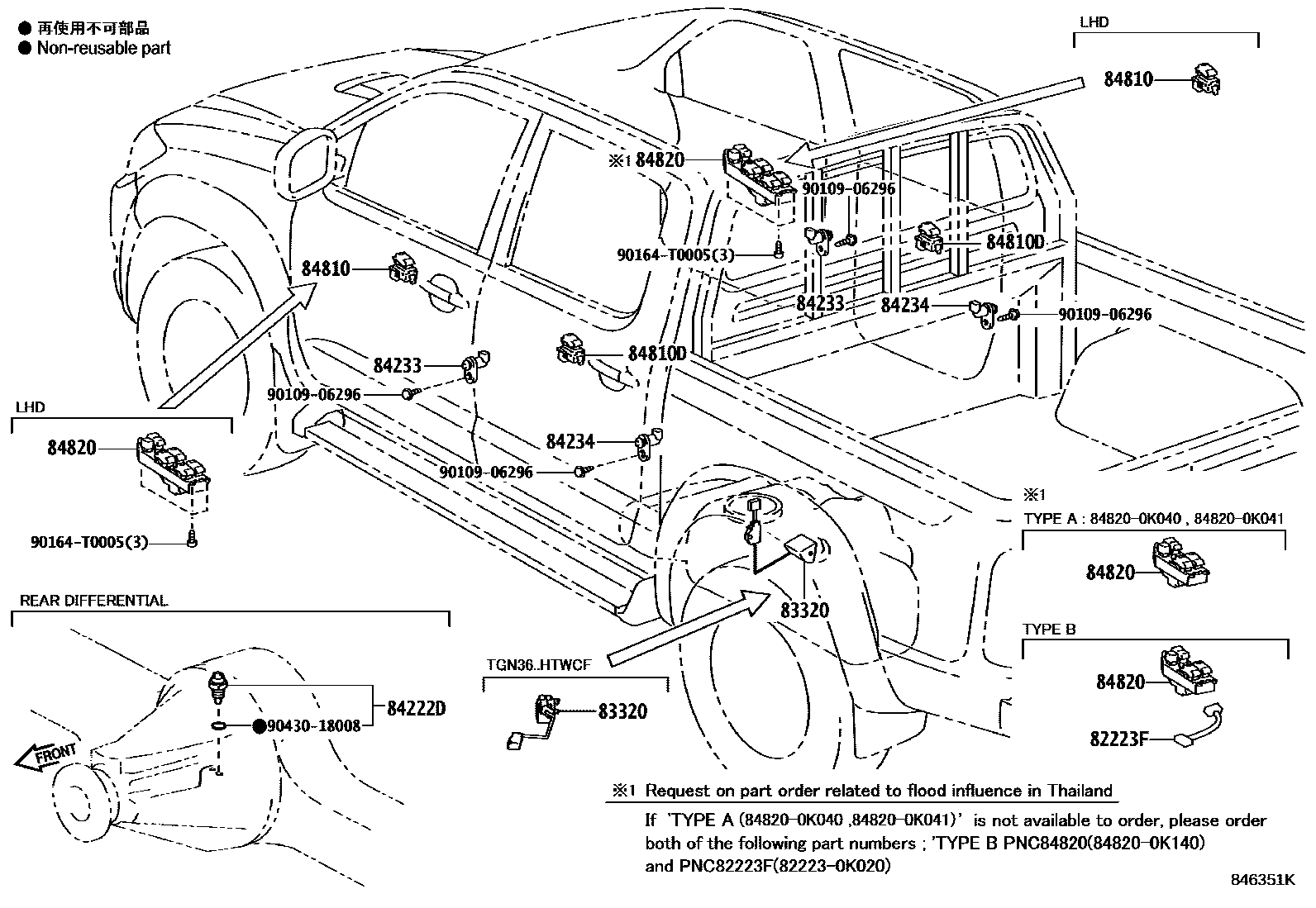

Diagram
9 parts
