Toyota Hilux 2020 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28551-0E010 | CONTROLLER, GLOW PLUG | 1 | |
Note:1GDFTV,2GDFTV,2TRFE..GUN112,12#,13#,TGN128,138 Production:2015-05 – 2021-05 Replacements:28551-30010 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 28551-30010 | CONTROLLER, GLOW PLUG | 1 | |
Note:1GDFTV,2GDFTV,2TRFE..GUN112,12#,13#,TGN128,138 Production:2015-05 – 2021-05 Spec:(J) Spec Note:(Japan made) | |||
| 28559-0L030 | BRACKET, GLOW PLUG CONTROLLER, NO.1 | 1 | |
Note:1GDFTV,2GDFTV..GUN112,122,125,126,13#..LHD Production:2015-05 – 2020-10 | |||
| 28559-0L040 | BRACKET, GLOW PLUG CONTROLLER, NO.2 | 1 | |
Note:1GDFTV,2GDFTV..GUN112,122,125,126,13#..LHD Production:2015-05 – 2020-10 | |||
| 83390-28120 | SWITCH ASSY, VACUUM WARNING | 1 | |
Note:GUN126..6F..H..TH;GUN126..TDC..(ARL,GCC,GEN,LA,PH,TAIW,VN);GUN112,120,122,123,125,13#,KUN112,12#,13#,LAN125;GUN126..ADC,ASC,KDC,MDC,PDC,PSC,SDC,SSC,SXT,TSC,TXT Production:2015-05 – 2021-05 | |||
| — | Part does not apply to this vehicle configuration. | 28850C | — |
| — | Part does not apply to this vehicle configuration. | 28859A | — |
| — | Part does not apply to this vehicle configuration. | 28380A | — |
| 90153-T0001 | standard | — | |
Replacements:90153-50010 (fitment: unknown) | |||
| 90105-T0066 | standard | — | |
Replacements:91551-80612 (fitment: unknown) | |||
| 90178-T0056 | standard | — | |
Replacements:94151-80801 (fitment: unknown) | |||
| 94151-80801 | standard | — | |
| 90119-T0130 | standard | — | |
Replacements:90119-06915 (fitment: unknown) | |||
| 90119-T0279 | standard | — | |
Replacements:90119-06995 (fitment: unknown) | |||

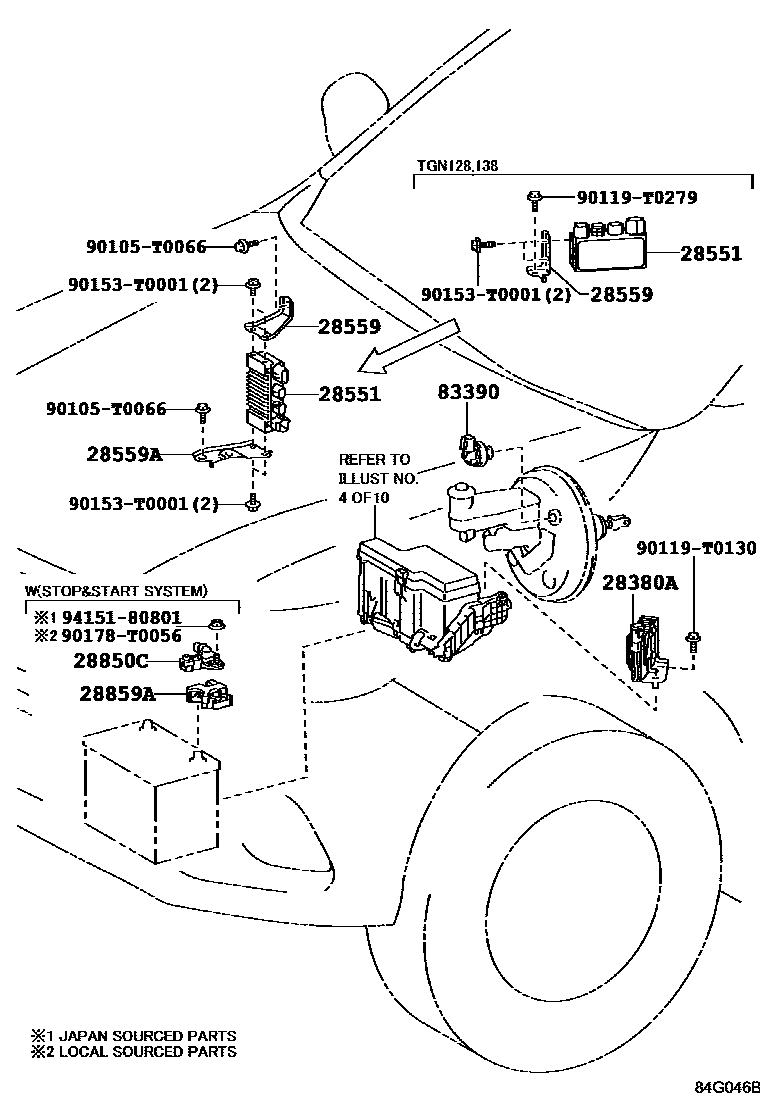

Diagram
11 parts
