Toyota Hilux 2020 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84751 | — |
| 83950-0K161 | LAMP ASSY, TELLTALE | 1 | |
Note:GUN126..TAIW;GUN122,125,135,TGN121..LHD..SDC..(M,X) Production:2019-05 – 2020-09 | |||
| 83910-0K040 | CLOCK ASSY | 1 | |
Note:GGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..TDC,TSC,TXT Production:2015-05 – 2020-05 | |||
| 84223-0K010 | SWITCH, TRANSFER POSITION | 1 | |
Note:GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128 Production:2015-05 – 2021-05 | |||
| — | Part does not apply to this vehicle configuration. | 84453 | — |
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| — | Part does not apply to this vehicle configuration. | 84152 | — |
| 89611-0K011 | SWITCH, PUSH START | 1 | |
Note:GUN125..S..MA;GUN136..RHD..TDC..(H,M);GGN125..(H,M)..(ARL,BZAGT,LA);GUN126..(H,M)..(ARL,KEN,MA,TAIW);GUN136,KUN126..H..(BZAGT,GEN,VN);GUN125,126,135,KUN122,125,135..(ADC,PDC,TDC)..H Production:2016-07 – 2021-05 | |||
| 84725-0K060 | SWITCH, DIFFERENTIAL LOCK | 1 | |
Note:GUN136..IV3;GUN125..TSC..M;GUN136..TDC..LA;GUN126..6F..S..GEN;TGN136..TDC..S..LA;GUN126..TDC..6FC..(S,X)..LA;GUN125,126..ARL,IDN,TAIW,TH;GUN125..LHD..TDC..(M,S)..GEN;GGN125,GUN135,TGN126..(M,S,X)..(ARL,GEN) Production:2017-08 – 2020-05 | |||
| 84970-0K020 | SWITCH ASSY, COMBINATION | 1 | |
Note:GUN126,TGN121..6FC;GUN125..SDC..6FC..S;GUN125..(ADC,MDC,SSC,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TXT)..6FC Production:2015-05 – 2021-05 | |||
| 84988-0K010 | SWITCH, VSC OFF | 1 | |
Note:GUN126..M..LA;TGN136..S..LA;GUN126..6FC..PH;TGN126..TDC..S..GCC;GUN126..RHD..SDC..M;TGN121,126..GCC..IV3;GUN122,125,13#..(S,X)..ARL;GUN126..6FC..H..(BZAGT,TH,VN);GUN136,TGN126..6FC..M..(BZAGT,GEN);GUN136,TGN121..(H,X)..(ARL,BZAGT,SA);GUN125,136..(SDC,SXT,TDC)..M..(ARL,IDN,SA);GUN125..LHD..(SSC,TDC)..6F..S..(GCC,GEN,SA);GGN12#,135,GUN123,KUN125..(5F,5FC,6FC)..(H,M,S);GUN126..(KDC,MDC,SXT,TDC,TSC,TXT)..(ARL,GCC,KEN,MA,SA,TAIW);GUN125,126,135,KUN126..LHD..(ADC,SDC,TDC)..(5FC,6F)..(H,X)..(BZAGT,SA,VN) Production:2015-05 – 2021-05 | |||
| 85530-0K040 | SOCKET ASSY, POWER OUTLET, NO.1 | 2 | |
Note:TGN126..M..(BZAGT,GEN,LA);GUN125..(MDC,TDC,TXT)..(MA,TH);GUN122,135,TGN121,136..(L,M,S)..(MA,TH);GGN125,135,GUN120,136,KUN13#,TGN128,136..H,L,M;GUN126..(ADC,KDC,MDC,SDC,SSC,SXT,TDC,TXT)..(H,M);GUN122,125,135,KUN12#,TGN121,138..(H,M)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,VN) Production:2015-05 – 2021-02 | |||
| 85535-0K090-C0 | COVER, POWER OUTLET SOCKET, NO.1 | 2 | |
Note:GUN125,135..MDC;GUN136..6FC..M..BZAGT;GUN126,KUN122..RHD..MTM..H..GEN;GGN125..(H,M)..(ARL,BZAGT,LA,SA);GUN126,136..(H,M)..(ARL,KEN,MA,SA,TAIW);GGN135,GUN122,125,KUN12#..(SDC,SSC,SXT,TSC,TXT)..M..(GEN,SA) Production:2015-05 – 2021-02 Spec:BLACK,TRIM2# | |||
| 84988-0K030 | SWITCH, DOWNHILL ASSIST CONTROL | 1 | |
Note:GUN126..TXT..6FC..M;GUN126..6FC..(TAIW,TH) Production:2015-05 – 2020-05 | |||
| 85530-71010-C0 | SOCKET, POWER OUTLET | 1 | |
Note:GUN126..TAIW;GUN126..RHD..6F..H..GEN Production:2015-05 – 2020-09 Spec:BLACK,TRIM2# | |||
| 84746-0K030 | SWITCH, TIRE PRESSURE WARNING | 1 | |
Note:GGN125,GUN112,122,125,126,KUN112,122,TGN11#,120,121,126..GCC,TAIW Production:2017-08 – 2020-05 | |||
| — | Part does not apply to this vehicle configuration. | 84752 | — |
| 84270-0K050 | SWITCH ASSY, DIESEL PARTICULATE REDUCTION | 1 | |
Note:GUN125..ARL..IV3;GUN125..TSC..6FC;GUN125..6FC..ARL..CBU;GUN135..RHD..(ARL,GEN);GUN122,123,126,136..ARL,TAIW Production:2018-06 – 2020-10 | |||
| — | Part does not apply to this vehicle configuration. | 84255 | — |
| 90167-T0012 | standard | — | |
Replacements:93568-55014 (fitment: unknown) | |||
| 93568-55014 | standard | — | |

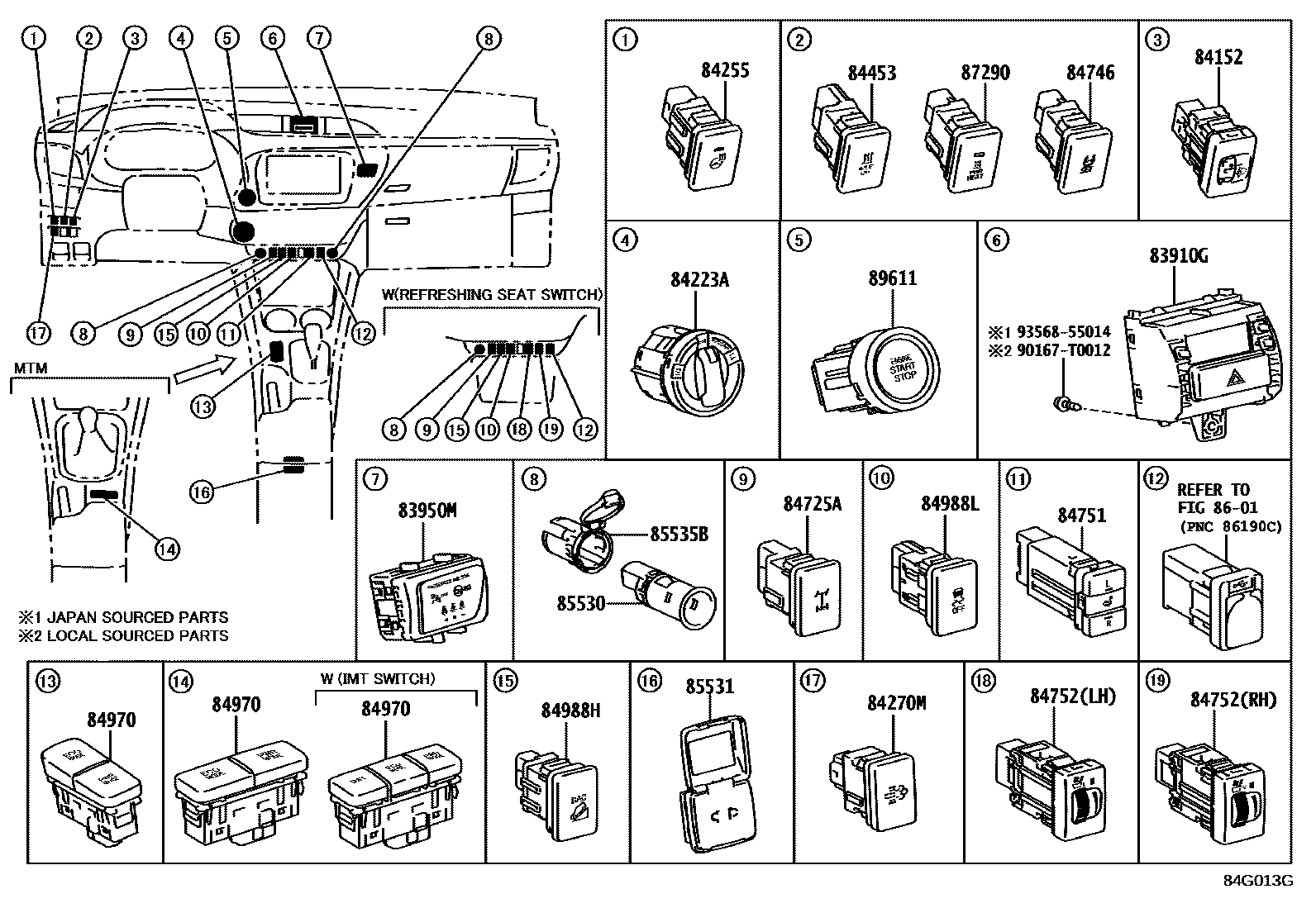

Diagram
15 parts
