Toyota Corolla-Altis 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89650-02701 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:ZRE14#..PHL,VN Production:2012-03 – … Fitment:Matches · configuration | |||
| 82861-12030 | BRACKET, COMPUTER INTEGRATION, NO.1 | 1 | |
Note:ZRE143..LHD..CVFC;ZRE141,142..LHD..(16G,16V,18E,18G,18J,GLI,XLI) Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 84550-33010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:ZRE141,142..LHD;ZRE143..LHD..CVFC Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 84340-69075 | SWITCH ASSY, STOP LAMP | 1 | |
Note:ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142..IDN,IND,MA,PHL,PKN,TAIW,TH,VN Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 82730-02G00 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:ZRE142..VN Production:2010-08 – 2013-04 Fitment:Matches · configuration | |||
| 84345-0K010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142 Production:2010-07 – 2014-07 Replacements:84345-51010 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 82241J | — |
| 90987-T2003 | RELAY ASSY (FOR HEATER BLOWER MOTOR) | 1 | |
Note:ZZE141..(16G,LIMO)..TH;ZRE141,142..6F..(16E,16J,18J);ZRE142..LHD..(18G,18J,GLI,XLI);CE140,NZE140,ZRE141..(16E,16G,20D,20DSA,D,GLI,N,XLI)..(GCC,MA,PKN,TH) Production:2010-07 – … Replacements:90987-04010 (fitment: unknown) Fitment:Matches · configuration | |||
| 90987-T2009 | RELAY, IGNITION, NO.1 | 1 | |
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;2C,1NDTV,2NZFE,1ZRFE,3ZRFE..CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:90987-02030 (fitment: unknown) Fitment:Matches · configuration | |||
| 28300-28010 | RELAY ASSY, STARTER | 1 | |
Note:3ZRFE..ZRE143..CVFC;3ZZFE..ZZE141..(16G,LIMO)..TH;2C,1NDTV,2NZFE,1ZRFE,2ZRFE..CE140,NDE140,NZE140,ZRE141,142 Production:2010-07 – 2014-07 Replacements:28300-21020 (fitment: unknown) Fitment:Matches · configuration | |||
| 81980-0D050 | FLASHER ASSY, TURN SIGNAL | 1 | |
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85916L | — |
| 90987-02027 | RELAY, ACC | 1 | |
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 90987-T2001 | RELAY, ACC | 1 | |
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 90987-T2001 | RELAY, FOG LAMP | 1 | |
Note:CE140,NDE140,ZRE141..RHD..(16E,20DSA,G,N);ZRE141,142..(16G,16V,18G,18V,E,G)..(IDN,IND,MA,PHL,VN);ZRE142,143..(6F,CVFC)..(18J,20G,20V)..(IDN,MA,PHL,TH,VN) Production:2010-08 – … Replacements:90987-02027 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28300D | — |
| 90982-08295 | FUSIBLE LINK | 1 | |
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) Production:2010-07 – … Spec:30A,FEMALE,PNK,58V Fitment:Matches · configuration | |||
| 90982-08295 | FUSIBLE LINK | 1 | |
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE143,ZZE141..(5F,6F,CVFC)..(20D,20DSA,20G,20V,E,G,GLI,LIMO,XLI) Production:2010-07 – … Fitment:Matches · configuration | |||
| 90982-09020 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration | |||
| 90982-09021 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:10A,MINI FUSE,RED Fitment:Matches · configuration | |||
| 90982-09022 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration | |||
| 90982-09024 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:25A,MINI FUSE Fitment:Matches · configuration | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:CE140,NDE140,NZE140,ZRE14#,ZZE14# Production:2010-07 – … Spec:30A,MINI FUSE,GRN Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85940 | — |
| 895A0-46020 | RELAY ASSY, STOP LAMP CONTROL | 1 | |
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;ZRE141,142..(16E,16G,16V,18E,D,N)..(MA,PHL,PKN,TH)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 89960 | — |
| 82673-12250 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:ZRE141,142..LHD;ZRE143..LHD..CVFC Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 82673-12260 | BRACKET, JUNCTION BLOCK | 1 | |
Note:ZRE141,142..LHD;ZRE143..LHD..CVFC Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 82817-12B50 | PROTECTOR, WIRING HARNESS | 1 | |
Note:ZRE143..CVFC;ZZE141..(16G,LIMO)..TH;CE140,NDE140,NZE140,ZRE141,142 Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 85903-06050 | COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | 1 | |
Note:ZRE143..LHD..CVFC;ZRE141,142..LHD..ATM Production:2010-07 – 2014-07 Replacements:85903-52010 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| 82673-12240 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:ZRE141,142..LHD;ZRE143..LHD..CVFC Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 82660B | — |
| 82755-12020 | BLOCK ASSY, RELAY | 1 | |
Note:ZZE141..(16G,LIMO)..TH;NDE140,ZRE141,142..GCC,IDN,IND,PHL,TAIW,TH,VN;CE140,ZRE143..(5F,CVFC)..(IDN,PHL,PKN,TAIW,TH,VN) Production:2010-07 – 2014-07 Fitment:Matches · configuration | |||
| 90179-06110 | standard | — | |
Fitment:Matches · configuration | |||
| 93315-14012 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-06952 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-T0294 | standard | — | |
Fitment:Matches · configuration | |||
| 91673-80616 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-60431 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-70004 | standard | — | |
Fitment:Matches · configuration | |||
| 91671-80616 | standard | — | |
Fitment:Matches · configuration | |||
| 90159-T0014 | standard | — | |
Replacements:90159-60431 (fitment: unknown) Fitment:Matches · configuration | |||
| 94151-80600 | standard | — | |
Fitment:Matches · configuration | |||
| 90178-T0018 | standard | — | |
Fitment:Matches · configuration | |||
| 90168-T0001 | standard | — | |
Replacements:90159-60546 (fitment: unknown) Fitment:Matches · configuration | |||
| 90159-60546 | standard | — | |
Fitment:Matches · configuration | |||
| 94120-41000 | standard | — | |
Fitment:Matches · configuration | |||

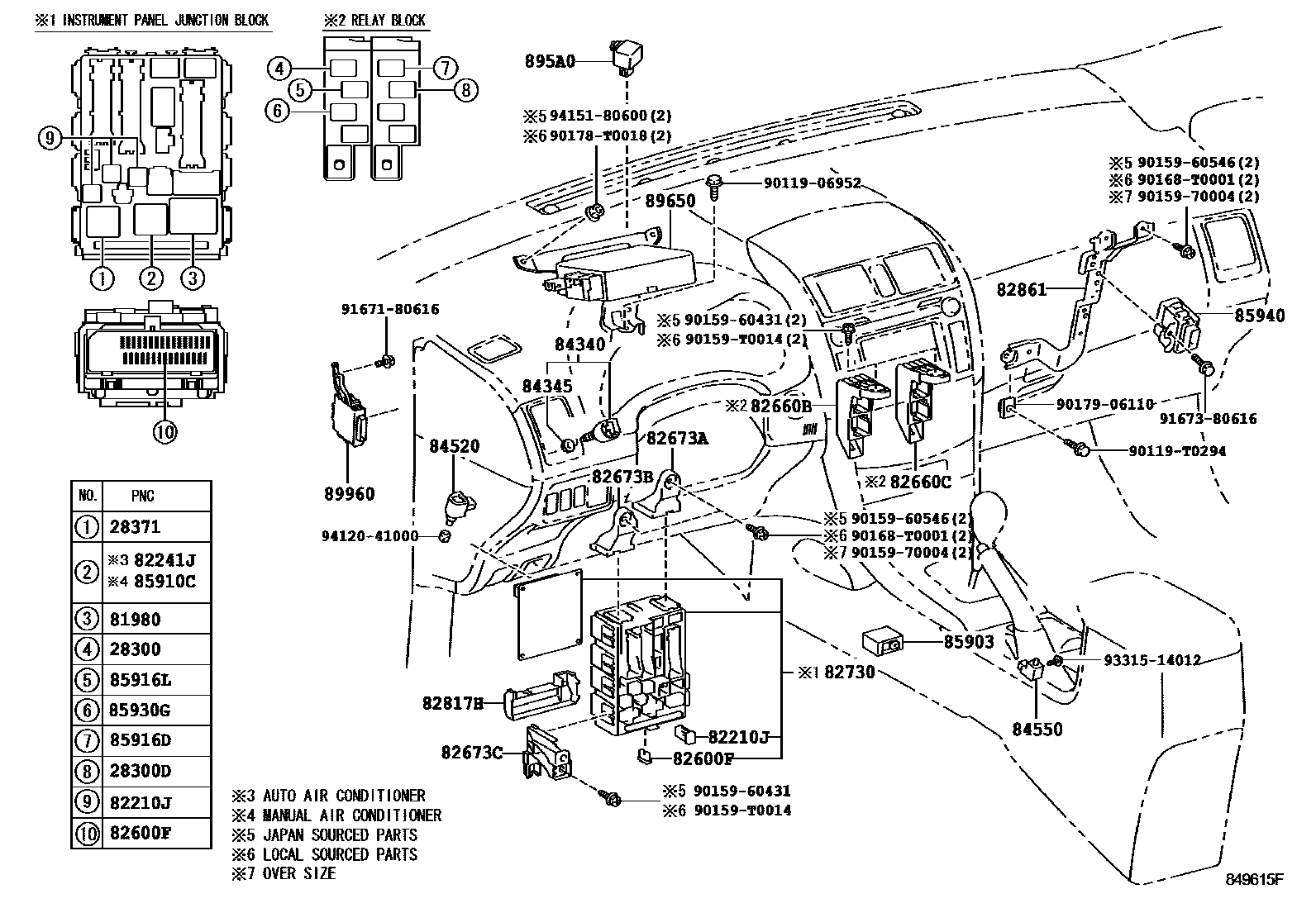

Diagram
42 parts
