Toyota Corolla-Altis 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84920-06030-E0 | SWITCH, FRONT POWER SEAT(FOR LUMBAR) | 1 | |
Note:ZRE142,143..CVFC..(PHL,VN) Production:2010-08 – 2014-07 Replacements:84920-60050-E2 (fitment: unknown) Spec:GREGE,TRIM4# Fitment:Matches · configuration | |||
| 84921-06180-E0 | KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | 1 | |
Note:ZRE142..CVFC..(MA,VN);ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,MA,PHL,TH,VN) Production:2010-08 – 2014-07 Replacements:84921-58020-E2 (fitment: unknown) Spec:GREGE,TRIM4# Fitment:Matches · configuration | |||
| 84921-06170-E0 | KNOB, POWER SEAT SWITCH (FOR RECLINING) | 1 | |
Note:ZRE142..CVFC..(MA,VN);ZRE142,143..(6F,CVFC)..(18V,20V,G)..(IDN,IND,MA,PHL,TH,VN) Production:2010-08 – 2014-07 Replacements:84921-58010-E2 (fitment: unknown) Spec:GREGE,TRIM4# Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84922B | — |
| 84922-06060 | SWITCH, FRONT POWER SEAT, LH | 1 | |
Note:ZRE142,143..CVFC..(PHL,VN) Production:2010-08 – 2014-07 Replacements:84922-60120 (fitment: unknown) Fitment:Matches · configuration | |||
| 90167-T0019 | standard | — | |
Fitment:Matches · configuration | |||
| 90167-40044 | standard | — | |
Fitment:Matches · configuration | |||

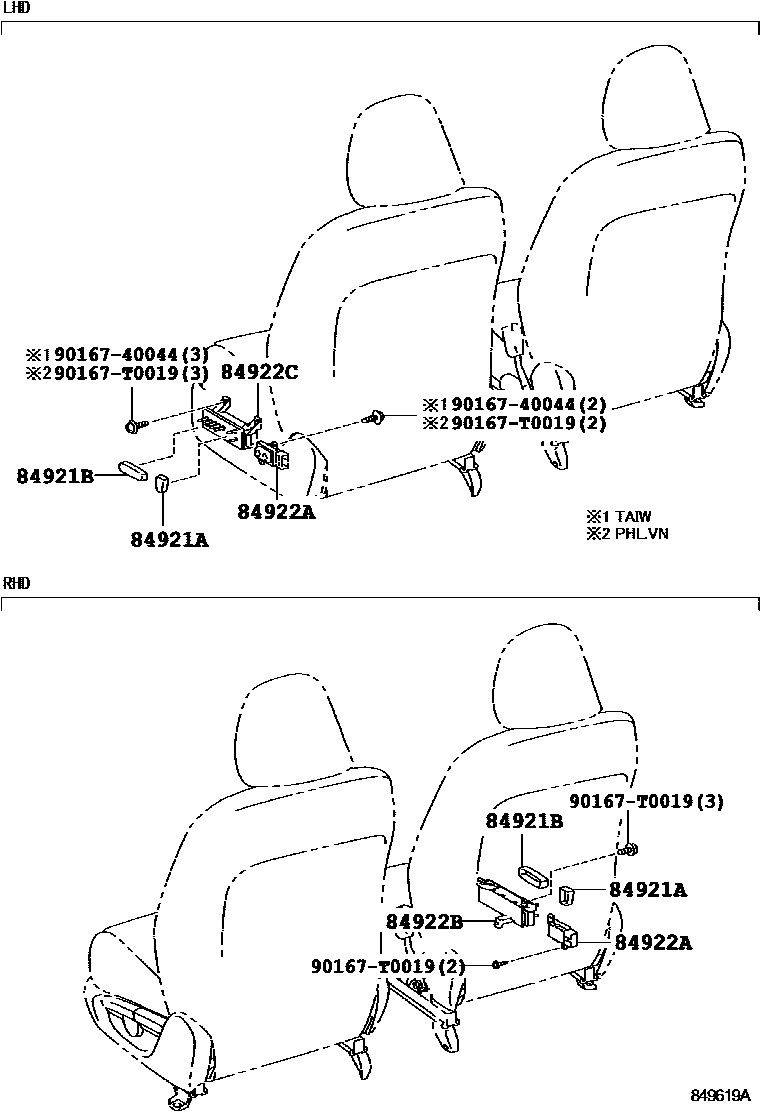

Diagram
6 parts
